F/T Sensor: Nano17 IP65/IP68


Skip Navigation Linksホーム > 製品 > 力/トルクセンサ > F/Tのモデル > Nano17 IP65/IP68



Product Advantages
  • Our Smallest 6-axis Sensor: Now Available with Protection Against Water Spray or Submersion to 4m.
  • Extremely High Strength: IP65 rated for protection against water spray. IP68 (4m) rated for submersion in fresh water to a depth of 4m. EDM wire-cut from high-strength stainless steel. Maximum allowable overload values are 3.1 to 6.9 times rated capacities.
  • High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion.

Note(s): IP68 sensors exhibit a decrease in Fz range related to submersion depth. See IP68 F/T Transducer Details in the Manuals tab under Addendums for detailed descriptions or contact your account representative.
Typical Applications
  • Robotic surgery
  • Wet applications
  • Water tunnel testing

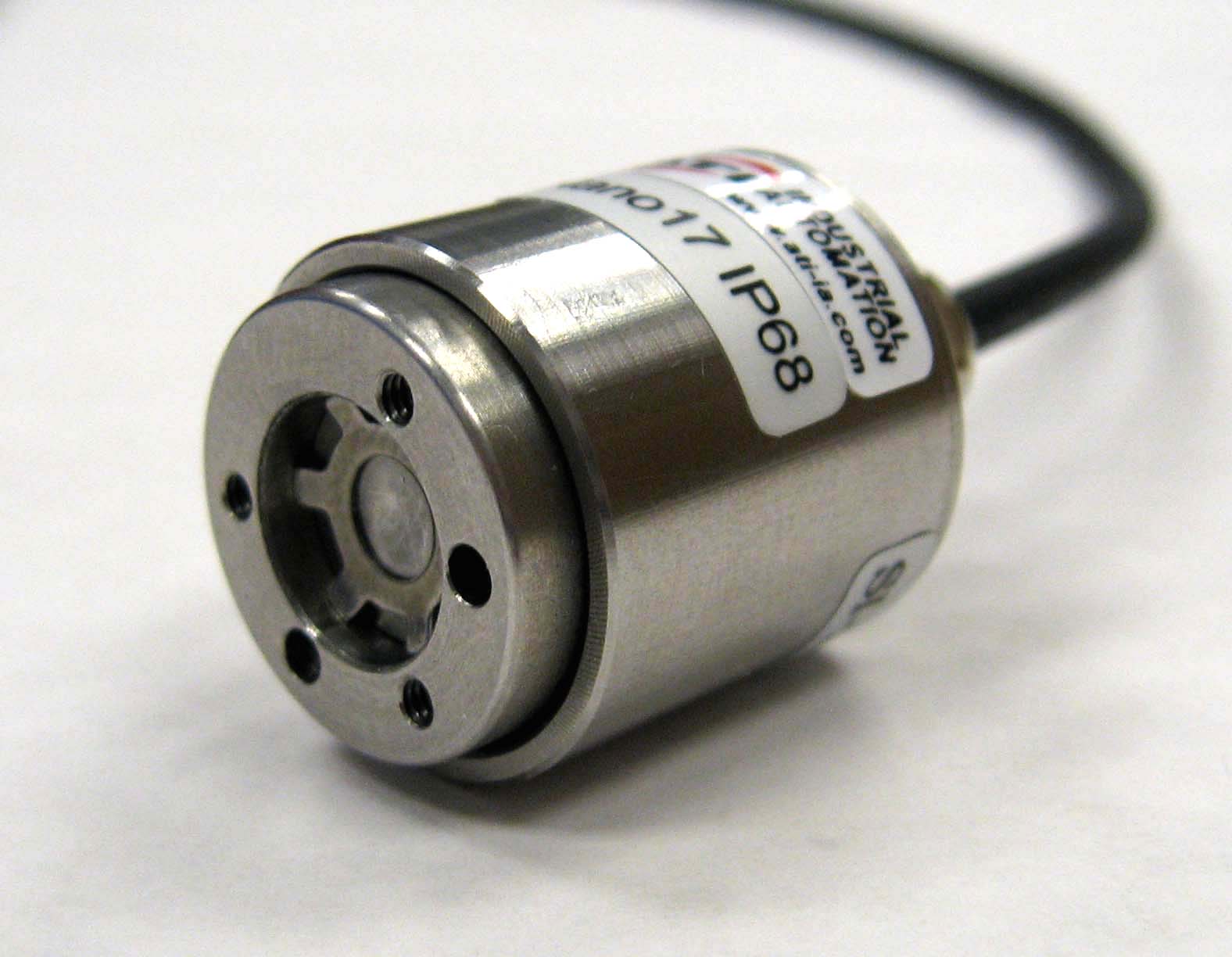

Nano17 IP68 shown
Nano17 IP68 shown

Ranges and ResolutionsSpecificationsDrawingsDocuments3D CAD Models


Select a system type.  (For more information on system types, please see our F/T Product Description page.)


Standard Calibrations (US)

CalibrationFx,FyFzTx,TyTzFx,FyFzTx,TyTz
US-3-13 lbf4.25 lbf1 lbf-in1 lbf-in1/1280 lbf1/1280 lbf1/8000 lbf-in1/8000 lbf-in
US-6-26 lbf8.5 lbf2 lbf-in2 lbf-in1/640 lbf1/640 lbf1/4000 lbf-in1/4000 lbf-in
US-12-412 lbf17 lbf4 lbf-in4 lbf-in1/320 lbf1/320 lbf1/2000 lbf-in1/2000 lbf-in
 SENSING RANGESRESOLUTION

 View Standard (US) Complex Loading Graph



Metric Calibrations (SI)

CalibrationFx,FyFzTx,TyTzFx,FyFzTx,TyTz
SI-12-0.1212 N17 N120 Nmm120 Nmm1/320 N1/320 N1/64 Nmm1/64 Nmm
SI-25-0.2525 N35 N250 Nmm250 Nmm1/160 N1/160 N1/32 Nmm1/32 Nmm
SI-50-0.550 N70 N500 Nmm500 Nmm1/80 N1/80 N1/16 Nmm1/16 Nmm
 SENSING RANGESRESOLUTION

 View Metric (SI) Complex Loading Graph




  *The resolution is typical for most applications and can be improved with filtering.
 **Resolutions quoted are the effective resolution after dropping four counts of noise.
***Applied loads must be within range in each of the six axes for the F/T sensor to measure correctly.

ATI's F/T calibrations are traceable to the National Institute of Standards and Technology (NIST). ATI certifies sensors are calibrated in accordance with
 applicable ATI procedures. These procedures are compliant with the ISO 9001 standard to ensure that products are within ATI specifications.


Contact your sales representative for accuracy information.
