F/T Sensor: Mini58 IP65/IP68


Skip Navigation Linksホーム > 製品 > 力/トルクセンサ > F/Tのモデル > Mini58 IP65/IP68



Product Advantages
  • The Mini58 has a compact, low-profile design with high capacity. Strain relief offers resistance to a 10 lb cable pull force.
  • Extremely-High Strength: IP65 rated against water spray. IP68 rated (4m) for submersion in fresh water to depth of 4m. EDM wire-cut from high yield-strength stainless steel. Maximum allowable overload values are 4.9 to 21.0 times rated capacities.
  • High Signal-to-Noise Ratio: Silicon strain gages provide a signal 75 times stronger than conventional foil gages. This signal is amplified, resulting in near-zero noise distortion.

Note(s): IP68 sensors exhibit a decrease in Fz range related to submersion depth. See IP68 F/T Transducer Details in the Manuals tab under Addendums for detailed descriptions or contact your account representative.
Typical Applications
  • Product testing
  • Telerobotics
  • Robotic surgery
  • Wind tunnel testing
  • Mechanical assembly
  • Part placement and removal in precision fixtures
  • Material removal, grinding, and polishing

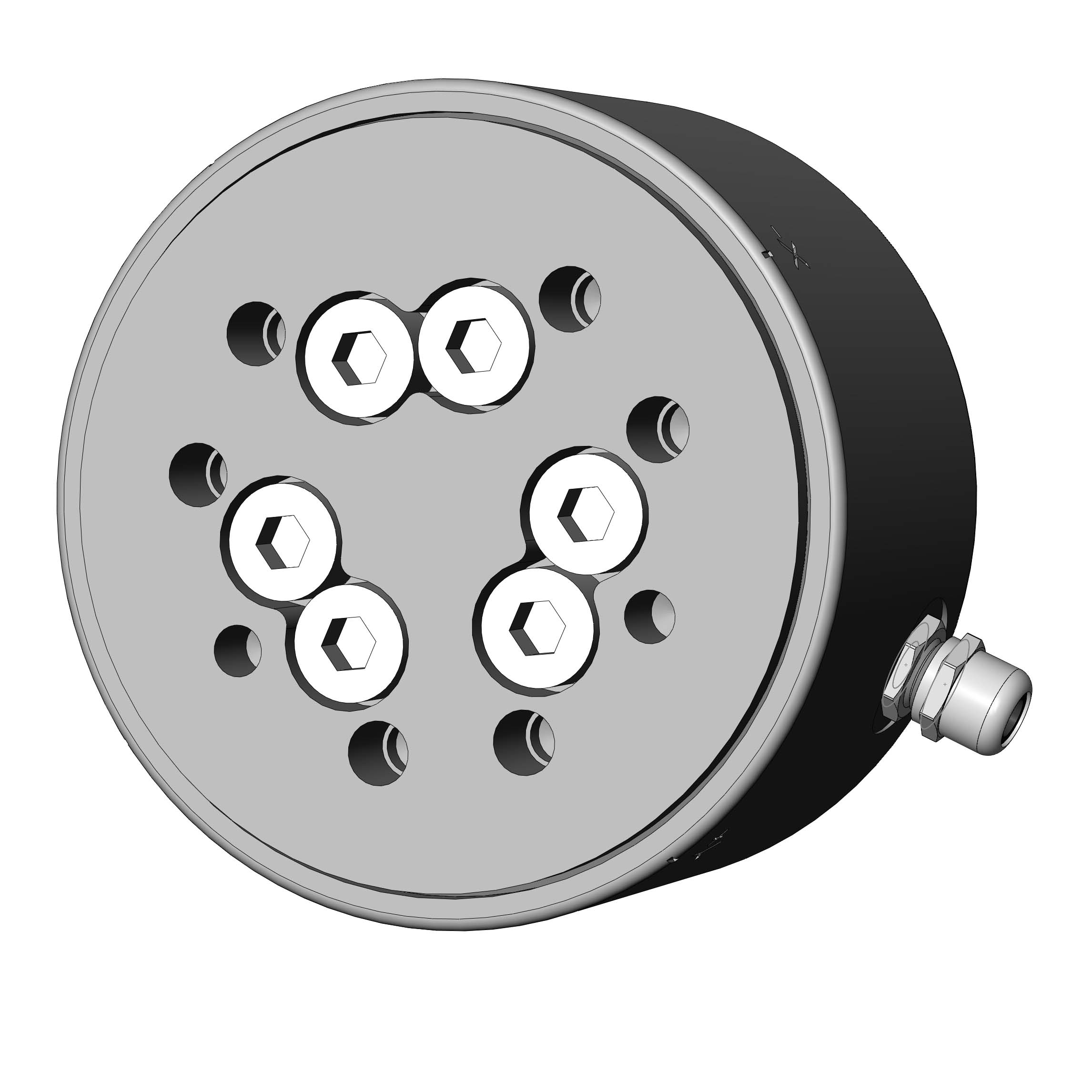

Mini58 IP65/IP68 Transducer
Mini58 IP65/IP68 Transducer

Ranges and ResolutionsSpecificationsDrawingsDocuments3D CAD Models


Select a system type.  (For more information on system types, please see our F/T Product Description page.)


Standard Calibrations (US)

CalibrationFx,FyFzTx,TyTzFx,FyFzTx,TyTz
US-150-250150 lbf375 lbf250 lbf-in250 lbf-in1/28 lbf3/56 lbf1/24 lbf-in1/40 lbf-in
US-300-500300 lbf750 lbf500 lbf-in500 lbf-in1/14 lbf3/28 lbf1/12 lbf-in1/20 lbf-in
US-600-1000600 lbf1500 lbf1000 lbf-in1000 lbf-in1/7 lbf3/14 lbf1/6 lbf-in1/10 lbf-in
 SENSING RANGESRESOLUTION

 View Standard (US) Complex Loading Graph



Metric Calibrations (SI)

CalibrationFx,FyFzTx,TyTzFx,FyFzTx,TyTz
SI-700-30700 N1700 N30 Nm30 Nm1/6 N1/4 N1/200 Nm1/320 Nm
SI-1400-601400 N3400 N60 Nm60 Nm1/3 N1/2 N1/100 Nm1/160 Nm
SI-2800-1202800 N6800 N120 Nm120 Nm3/4 N1 N1/50 Nm1/80 Nm
 SENSING RANGESRESOLUTION

 View Metric (SI) Complex Loading Graph




  *The resolution is typical for most applications and can be improved with filtering.
 **Resolutions quoted are the effective resolution after dropping four counts of noise.
***Applied loads must be within range in each of the six axes for the F/T sensor to measure correctly.

ATI's F/T calibrations are traceable to the National Institute of Standards and Technology (NIST). ATI certifies sensors are calibrated in accordance with
 applicable ATI procedures. These procedures are compliant with the ISO 9001 standard to ensure that products are within ATI specifications.


Contact your sales representative for accuracy information.
