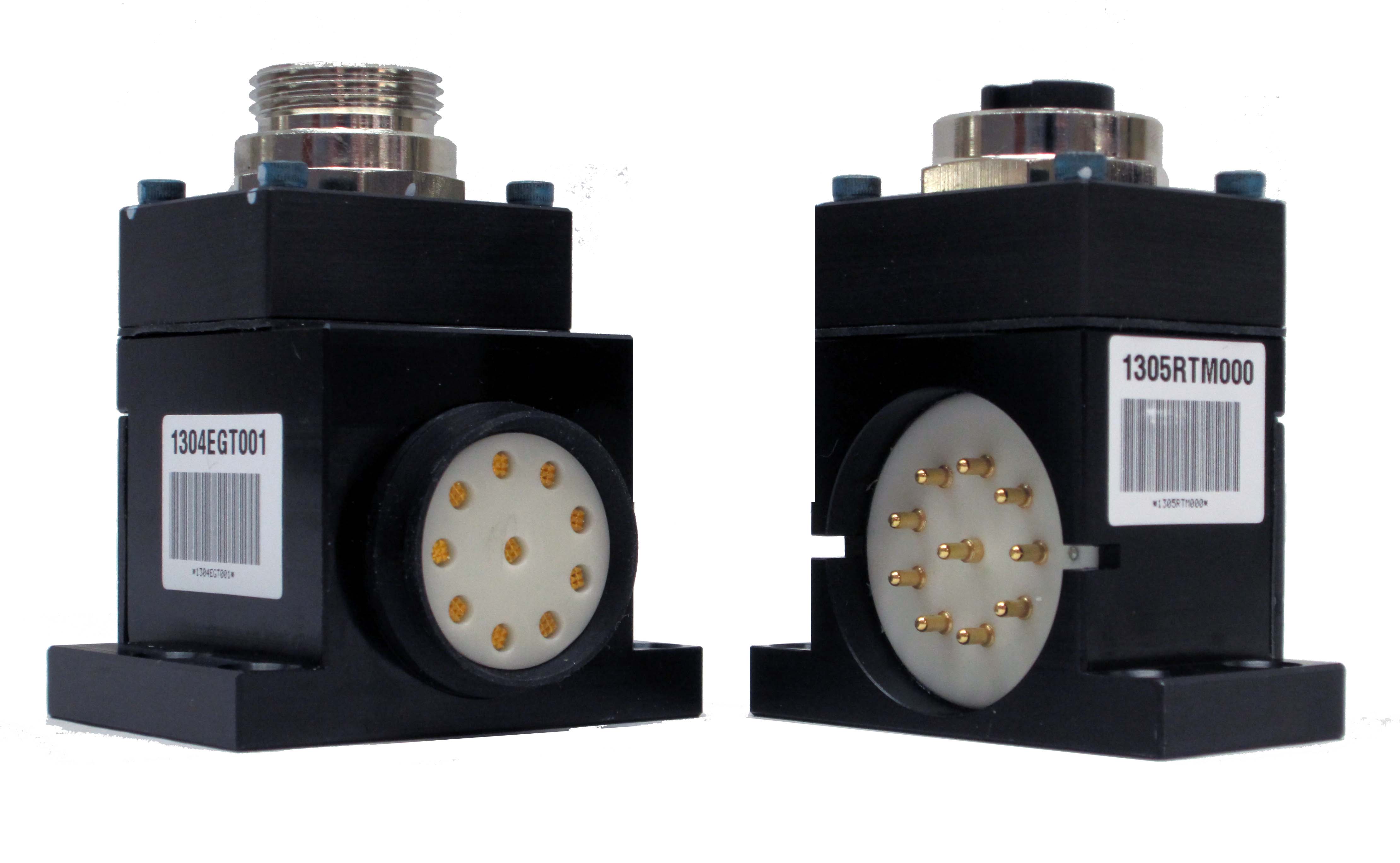

| 9120-RF5-M | M | Electrical Module Assembly, 5-Pin Minifast Male Connector, High Power Pin Block - Master side |
| 9120-RF5-T | T | Electrical Module Assembly, 5-Pin Minifast Female Connector, High Power Pin Block - Tool side |
|
|
Description: |
Electrical Module Assembly, 5-Pin Minifast Connector, High Power Pin Block |
|
Weight: |
Master 0.56 lbs (0.25 kg)
Tool 0.42 lbs (0.19 kg) |
|
Materials: |
- Aluminum housing
- Precious metal-plated heads on spring pins
- Precious-metal-plated contact pins
- Nitrile seal.
|
|
Elec. Rating: |
9 Amp/250VAC |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-RF5.pdf |
RF5 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-RF5-T |
RF5 Electrical Module Tool Assembly, 5-Pin Minifast Female Connector, High Power Pin Block
|
| 9120-RF5-M |
RF5 Electrical Module Master Assembly, 5-Pin Minifast Male Connector, High Power Pin Block
|
|
|
