| 9121-PB2-M | M | (2) Contacts, #2 wire, 200 Amp, 600V Rating - Master side |
| 9121-PB2-T | T | (2) Contacts, #2 wire, 200 Amp, 600V Rating - Tool side |
|
|
Description: |

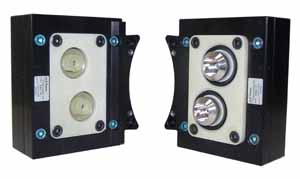

(2) Contacts, #2 wire, 200 Amp, 600V Rating Primary Current Module |
|
Weight: |
Master 2.3 lbs (1.04 kg)
Tool 2.3 lbs (1.04 kg) |
|
Materials: |
- Precious metal-plated contacts.
|
|
Elec. Rating: |
200 Amp/600V max. @ 100% Duty Cycle |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-PB2.pdf |
PB2 Module Drawing
|
|
| 9620-20-F-PBx.pdf |
PBx High Current Module Manual (incl PB2, PB3, PB4, PB5)
|
|
| 9121-PB2-M (A End Open) |
Primary Current Master, (2) contacts, #2 wire, 200A rating
|
| 9121-PB2-T (B End Open) |
Primary Current Tool, (2) contacts, #2 wire, 200A rating
|
| 9121-PB2-T (A End Open) |
Primary Current Tool, (2) contacts, #2 wire, 200A rating
|
| 9121-PB2-M (B End Open) |
Primary Current Master, (2) contacts, #2 wire, 200A rating
|
|
| 9005-20-1250 | 1-1/4 NPT Fitting Plate Kit |
| 9005-20-1904 | M16 X 1.5 Fitting Plate Kit |
|
|
