Description: |

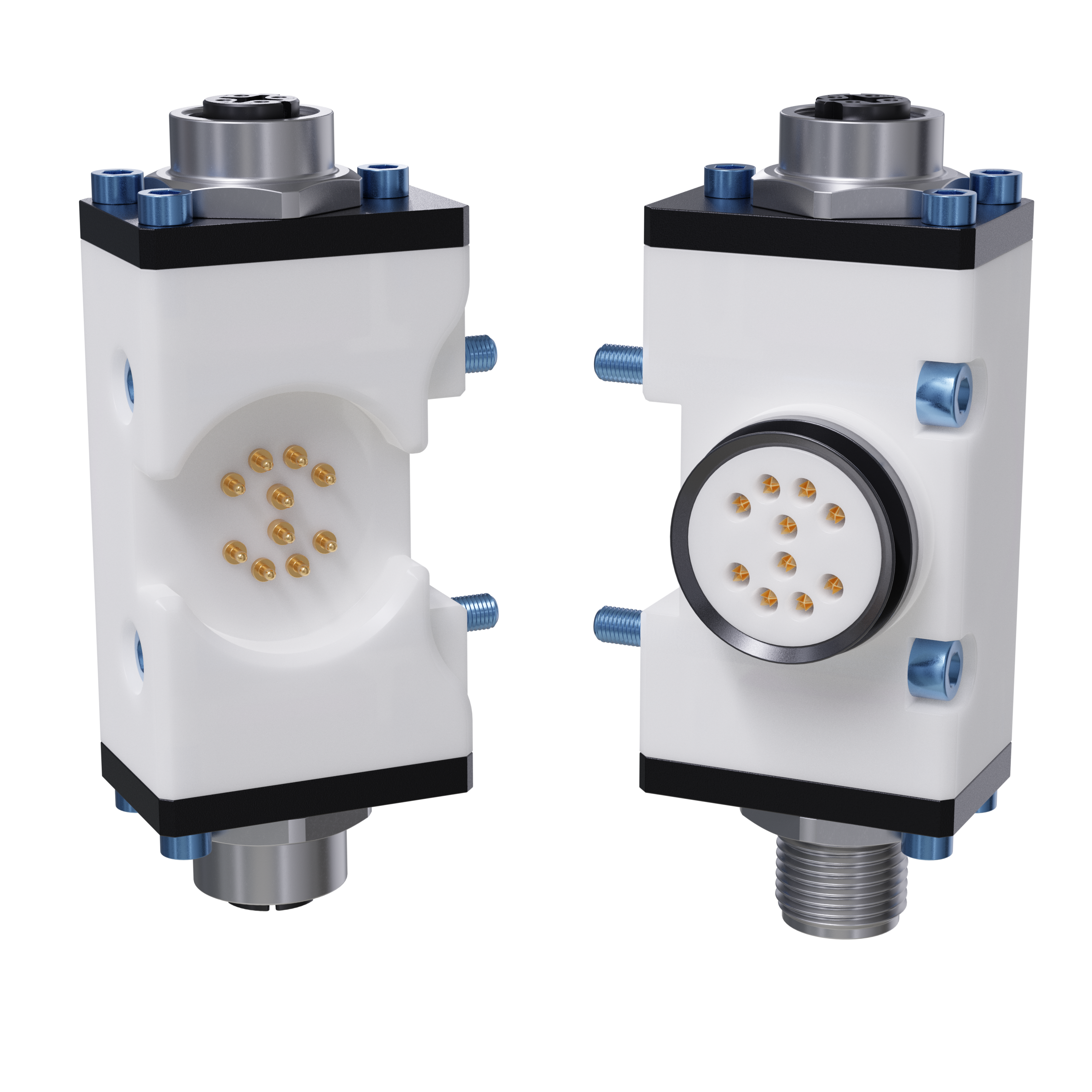

ME10 Electrical Module, M12 D-Code, M12 L-Code |
|
Weight: |
Master (0.15lbs/0.07kg) Tool (0.13lbs/0.06kg) |
|
Materials: |
- Glass filled acetal housing
- Anodized aluminum cover plates
- Precious-metal-plated contact pins
- Nitrile seal
|
|
# Pins: |
Ethernet (4) Power (4) |
|
Elec. Rating: |
Signal (.6Amp/60V max.) Power (4Amp/63VDC max.) |
|
Operational Temperature Range: |
-20 °F - 150 °F (-28.9 °C - 65.6 °C) |
|
|
|
QC-7
| |
| No |
|
QC-11
| |
| No |
|
MC-50
| |
|
|
Check lever/hand clearance when mounting to large tooling/IP's |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-ME10.pdf |
ME10 Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-ME10-M |
ME10 Electrical Module, M12 D-Code, M12 L-Code, Master Side
|
| 9120-ME10-T |
ME10 Electrical Module, M12 D-Code, M12 L-Code, Tool Side
|
|
