Suggested Payload Limit: |
55 lb |
|
Static Moment Capacity (X & Y): |
221 lbf-in |
|
Static Moment Capacity (Z): |
221 lbf-in |
|
Positional Repeatability - (X, Y, & Z): |
0.0004 in |
|
Weight - when coupled: |
1.26 lb |
|
Pneumatic Pass-through Ports (qty) Size: |
(4) M5 |
|
| 9630-20-MC050.pdf |
MC-50 Manual Tool Changer Drawing
|
|
| 9620-20-B-MC-50.pdf |
Manual for the MC-50 Tool Changer
|
|
|
Recommended Modules
|
| Module | Type | Description | Notes | Adapter Plate Required |
|
ML8
| Electrical Modules | Electrical modules with M8 connector interface for robotic applications. | Flat A |
No
|
|
Control and Signal Modules
| ME10 | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | ME10 Electrical Module, M12 D-Code, M12 L-Code | Check lever/hand clearance when mounting to large tooling/IP's | No |
| ME10A | Ethernet/EtherNetIP/EtherCAT/PROFINET Pass-Through Modules | | ME10A Electrical Module, M8 D-Code, M8 A-Code | Check lever/hand clearance when mounting to large tooling/IP's | No |
|
Electrical Modules
| A15 | Electrical Modules | | 15-pin, 2.5 Amp/50VAC electrical module with high-density D-sub connector | Flat A | No |
| E10-010 | Electrical Modules | | 10-pin, 3 Amp/50VAC electrical module with solder connection, miniature size | Flat A | No |
| E20-010 | Electrical Modules | | 20-pin, 3 Amp/50VAC electrical module with solder connection, miniature size | Flat A | No |
| K12 | Electrical Modules | | 12-pin, 2 Amp/50VDC electrical module with 12 mm Industrial Connector, sealed and No-Touch | Flat A, JJ112 Adapter Plate | Yes |
| K19 Family | Electrical Modules | | 19-pin, 3 Amp/50VDC electrical module with miniature MS quick-disconnect connector, sealed and No-Touch | Flat A, JJ112 Adapter Plate | Yes |
| ML8 | Electrical Modules | | Electrical modules with M8 connector interface for robotic applications. | Flat A | No |
|
|
|
Other Modules
| JJ112 | Adapter Assemblies | | Adapter plate for K-series pattern on MC-50. | Flat A | No |
|
|
|
|
|
|

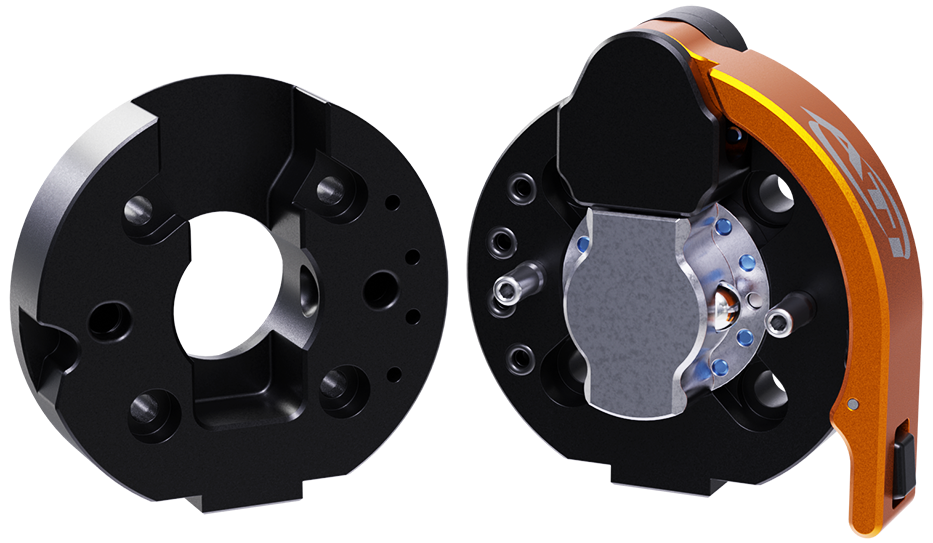

| 9122-050T-000 |
MC-50 Manual Tool Changer, Tool Side
|
| 9122-050M-000 |
MC-50 Manual Tool Changer, Master Side
|
|
Tool Stand Mounting Options
Click
here
for a complete list of Tool Stand information and components.
|
| Part Number | Type | Description | Application | Product Image |

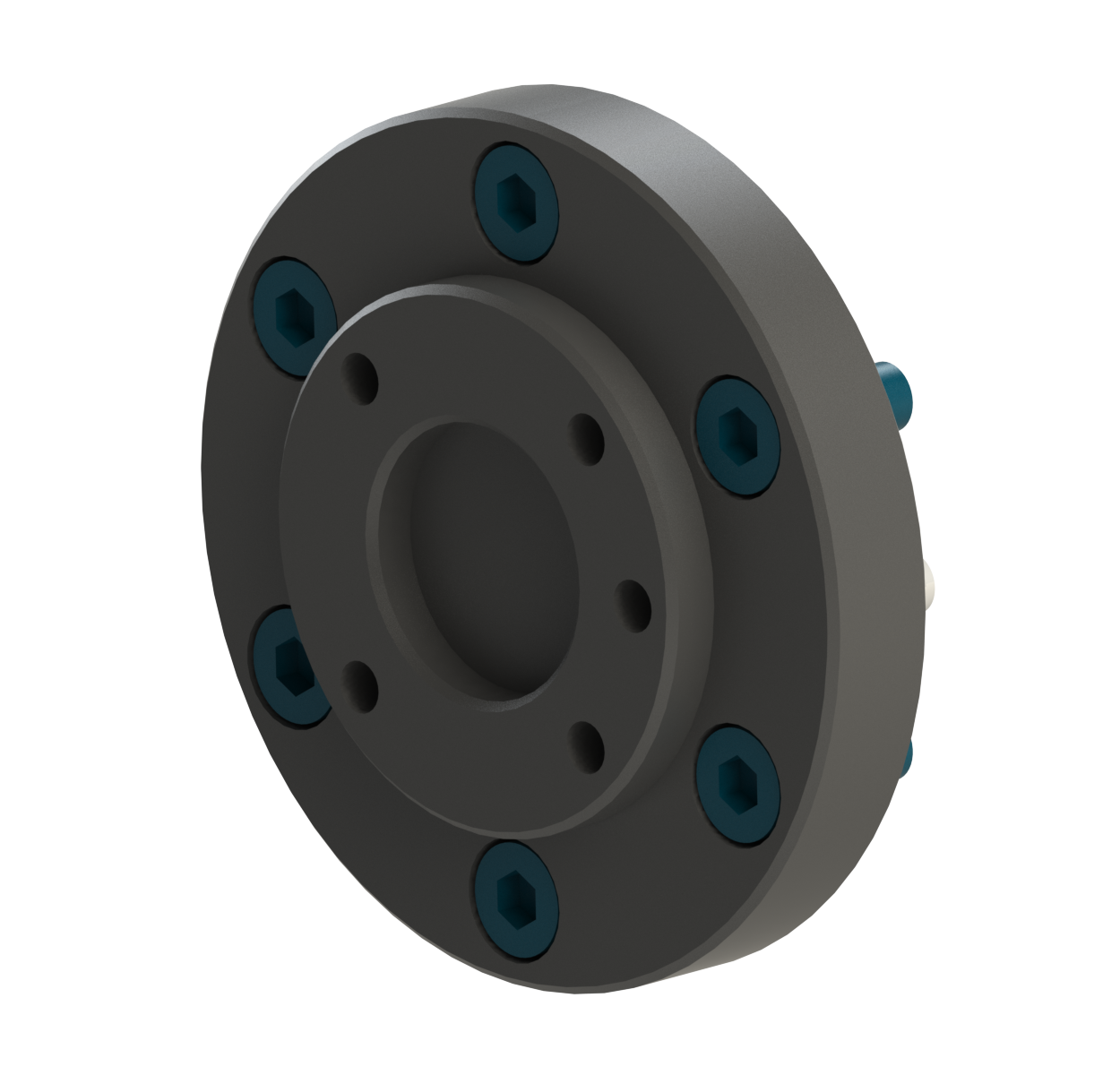

| 9122-050M-IP-11858 | Interface Plate |
- IP kit for MC-50M to BC 80, (6)M8, Boss 50, D8
| UR20 |
|
| JJ112 | Mounting Module |
- Module Adapter K Module to MC-50
| |
|

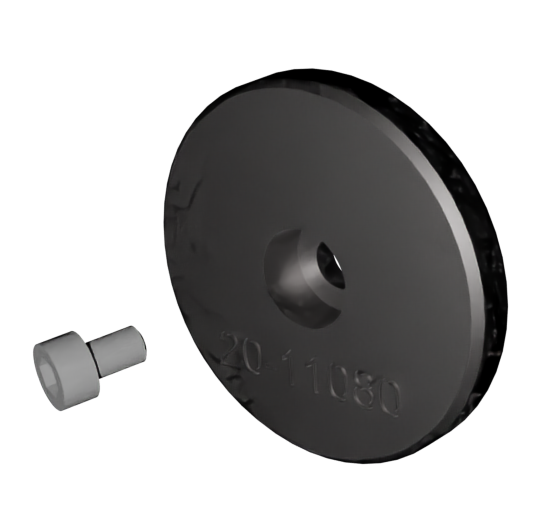

| 9005-20-9217 | Interface Plate |
- Boss Plate Kit, 25mm OD, For QC with 16mm Boss Plate Recess, Single M3 SHCS Attachment
| |
|

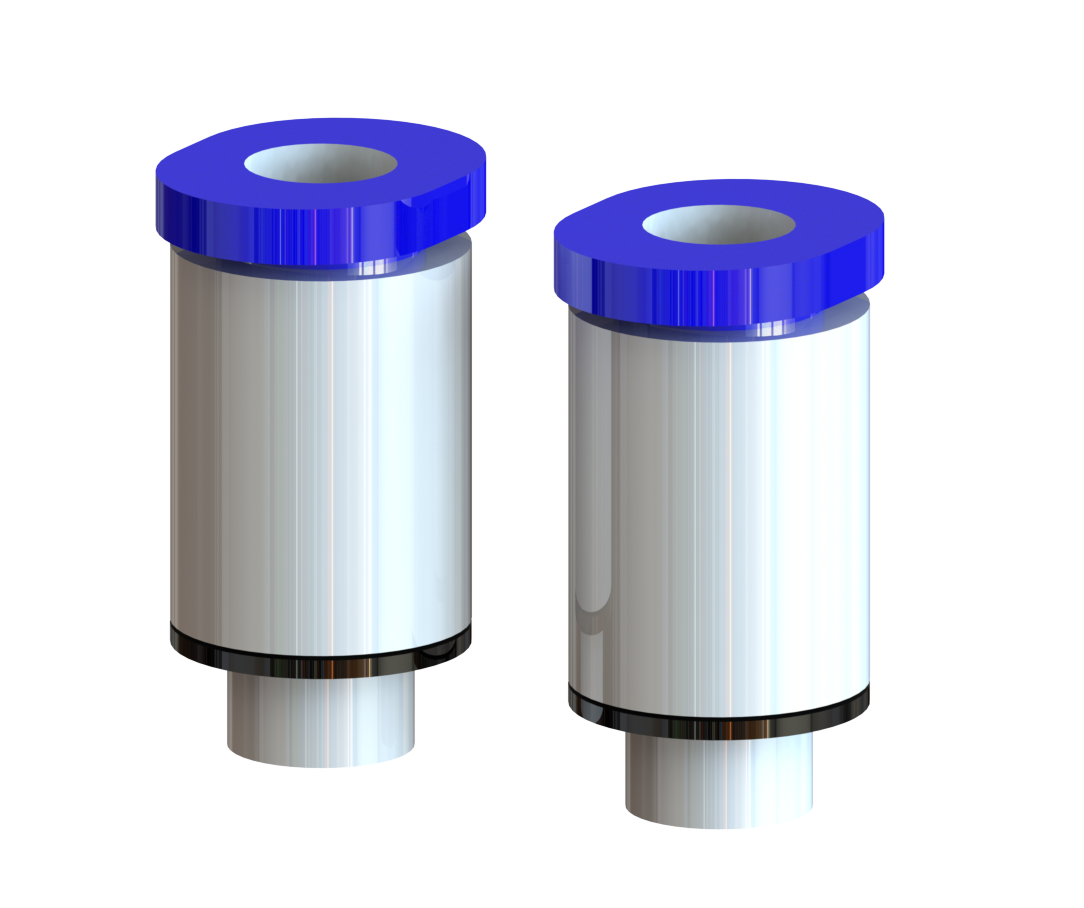

| 9005-20-9115 | Pneumatic |
- Fitting Kit, (2) Straight Fittings (M5 Male x 4mm Tube)
| |
|

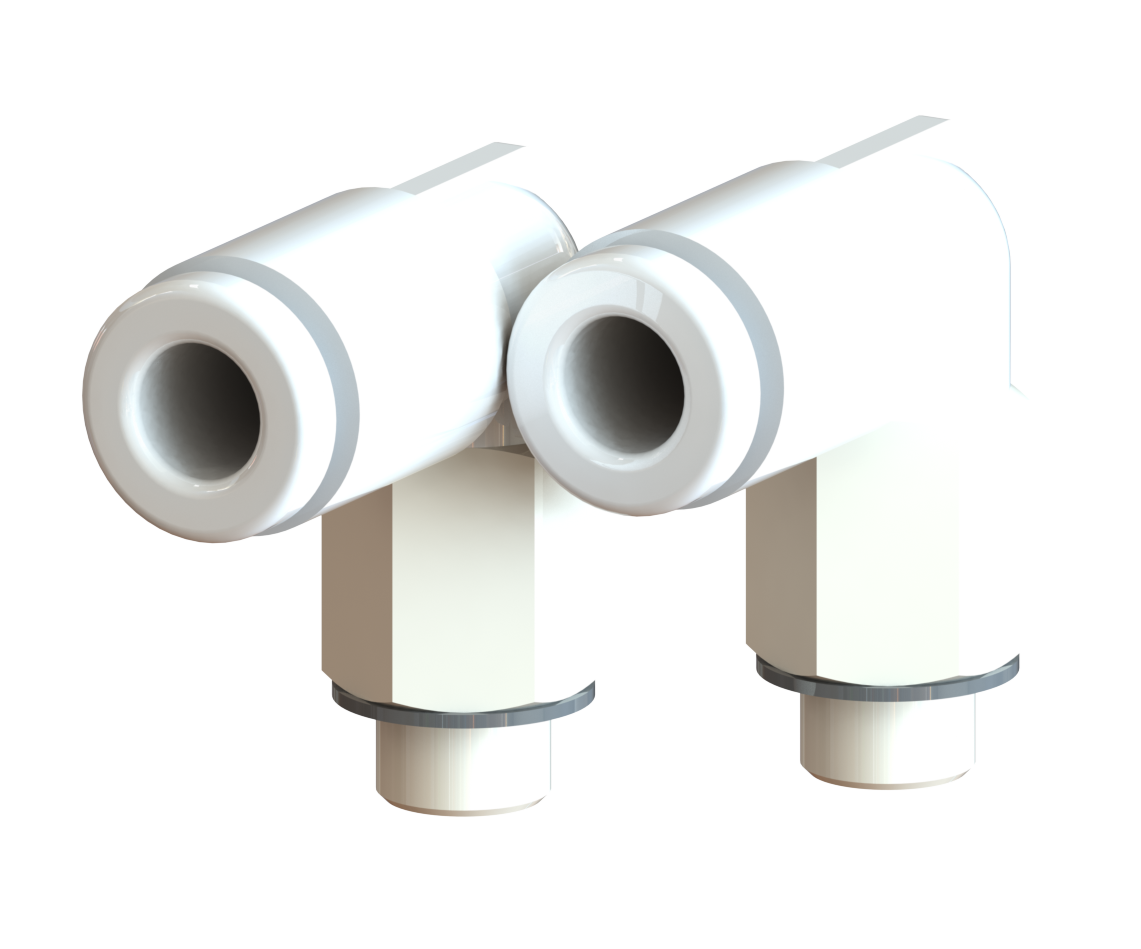

| 9005-20-9112 | Pneumatic |
- Fitting Kit, (2) Swivel Elbow Fittings (M5 Male x 4mm Tube)
| |
|
|
|
