Dual Redundant DeviceNet Modules: DJ8


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Control and Signal Modules > DJ8





Product Advantages
  • The DJ8 DeviceNet Module allows for communication and control of the Tool Changer with Master- and Tool-side DeviceNet nodes and incorporates advanced diagnostic and fault monitoring capability.
  • Critical component redundancy in TSI circuit (i.e., 2 each of RTL sensor, RTL relay, TSI limit switch, and TSI relay) ensures safest tool release possible.
  • ATI's Arc Prevention Circuit (patent pending) protects all electrical power contacts against reduced life that can be caused by loads with high inrush current during coupling/uncoupling.
  • Standard Mini connectors for DeviceNet and Auxiliary Power Interface.
  • ODVA compliance certified. Quick Connect compatible.
  • An integrated single- or double-solenoid valve (available on the Jxx valve adapter module) controls the Tool Changer locking mechanism.
  • Five (5) Tool-ID (0-9) switches provided reporting Line, Robot, and Tool number.
  • A flexible boot surrounds the pin block and seals the connection from moisture while coupled.

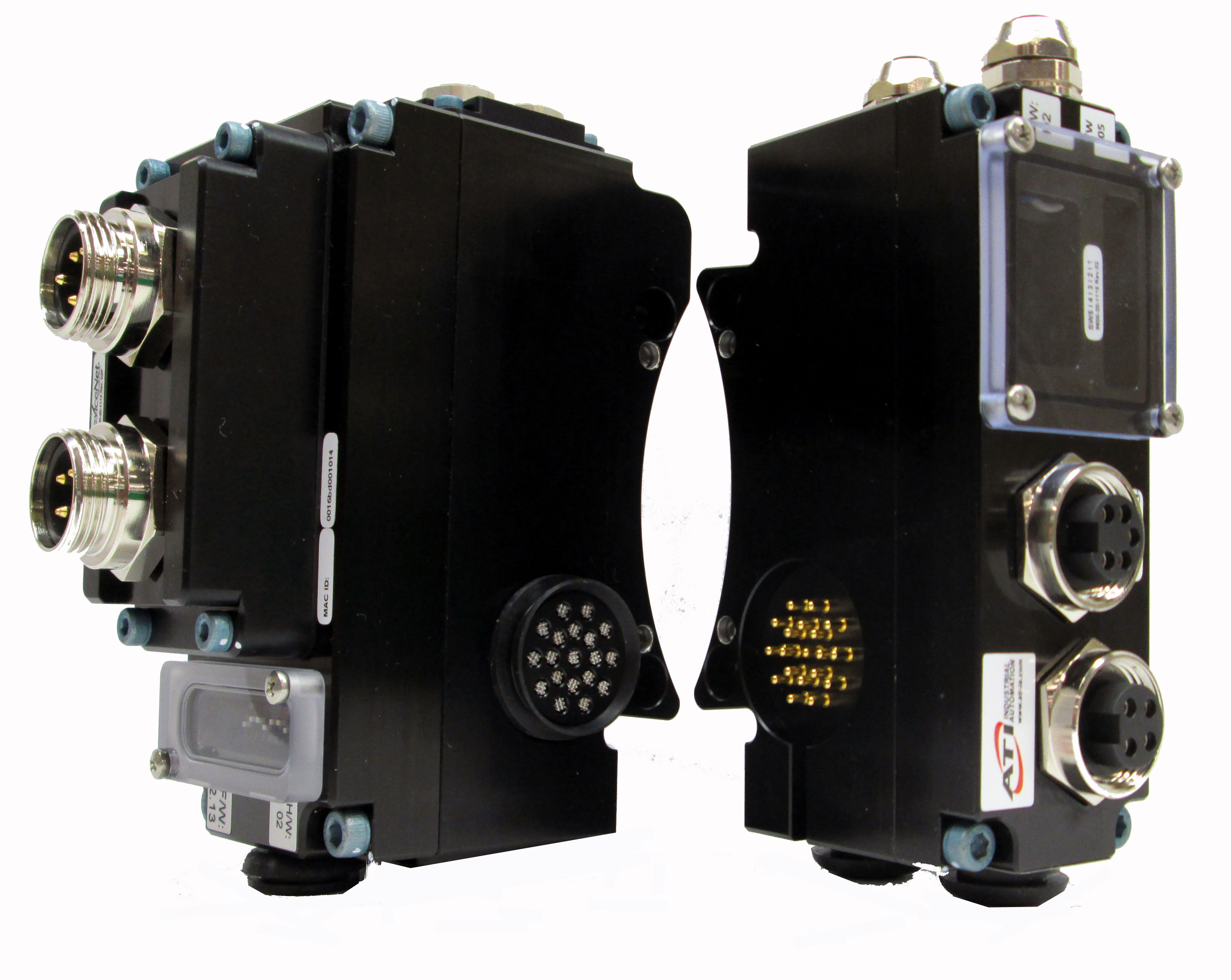

DJ8 Modules (Master and Tool)
DJ8 Modules (Master and Tool)

Part NumberSideNotesEDS File
9121-DJ8-MMDeviceNet and Aux. Power Interface; Supports Single and Dual Solenoid Valve; Arc Prevention applied to Aux1, Aux2, and CAN V+ power; Lock, Unlock, and RTL sensing with LED cables - Master side9030-20-1013.eds
9121-DJ8-TTDual Redundant TSI DeviceNet Module with (2) Mini Connectors for DeviceNet and Aux. Power Interface; Supports Arc Prevention on the Master; Supports (2) Mechanical Switch TSI and 5-Independent Switch Tool-ID - Tool side

SpecificationsCompatible QCsConnectors and CablesDrawingsManuals3D CAD Models

Description: Dual Redundant TSI DeviceNet Module with (2) Mini Connectors for DeviceNet and Aux. Power Interface; Supports Single and Dual Solenoid Valve; Arc Prevention applied to Aux1, Aux2, and CAN V+ power; Lock, Unlock, and RTL sensing with LED cables on the Master; Tool-ID from the Tool module also supported
Weight: Master 2.10 lbs (0.95 kg)
Tool 1.40 lbs (0.64 kg)
Materials:
  • Aluminum housings
  • Precious-metal-plated contacts
  • Nitrile seals
  • Delrin pin block
Elec. Rating: DeviceNet - 5-pin Mini: Per ODVA DeviceNet Specification
Auxiliary Power - 4-pin Mini: 5 Amp, 12-30VDC
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
