| 9121-AV7-M | M | (4) G 3/4 (BSPP) Vacuum Pass-through Modules - Master side |
| 9121-AV7-T | T | (4) G 3/4 (BSPP) Vacuum Pass-through Modules - Tool side |
|
|
|

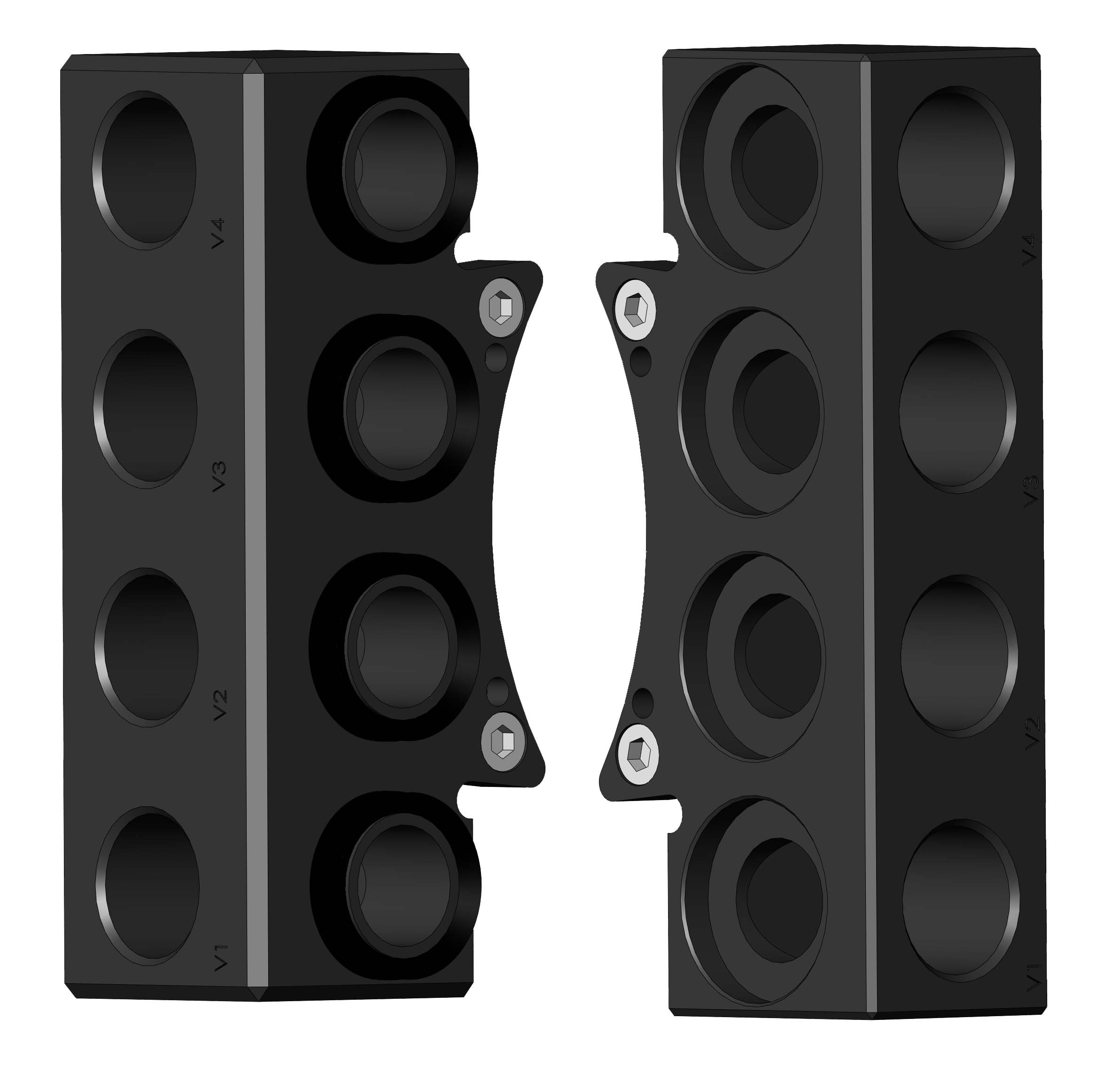

(4) G 3/4 (BSPP) Vacuum Pass-through Modules |
|
|
Master 1.85 lbs (0.84 kg)
Tool 1.30 lbs (0.59 kg) |
|
|
- Anodized aluminum housings
- Nitrile rubber seals
|
|
|
-20 °F - 150 °F (-28.9 °C - 65.6 °C) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-AV7.pdf |
AV7 Module Drawing
|
|
| 9620-20-D-AV7.pdf |
AV7 Vacuum Module Manual
|
|
| 9121-AV7-M |
Pneumatic Master module with (4) 3/4" G Vacuum pass-through ports
|
| 9121-AV7-T |
Pneumatic Tool module with (4) 3/4" G Vacuum pass-through ports
|
|
|
