| 9121-AR4-M | M | Pneumatic Module with (8) Rc 3/8 (BSPT) self-sealing ports - Master side |
| 9121-AR4-T | T | Pneumatic Module with (8) Rc 3/8 (BSPT) self-sealing ports - Tool side |
|
|
|
Pneumatic Module with Rc 3/8 (BSPT) ports:

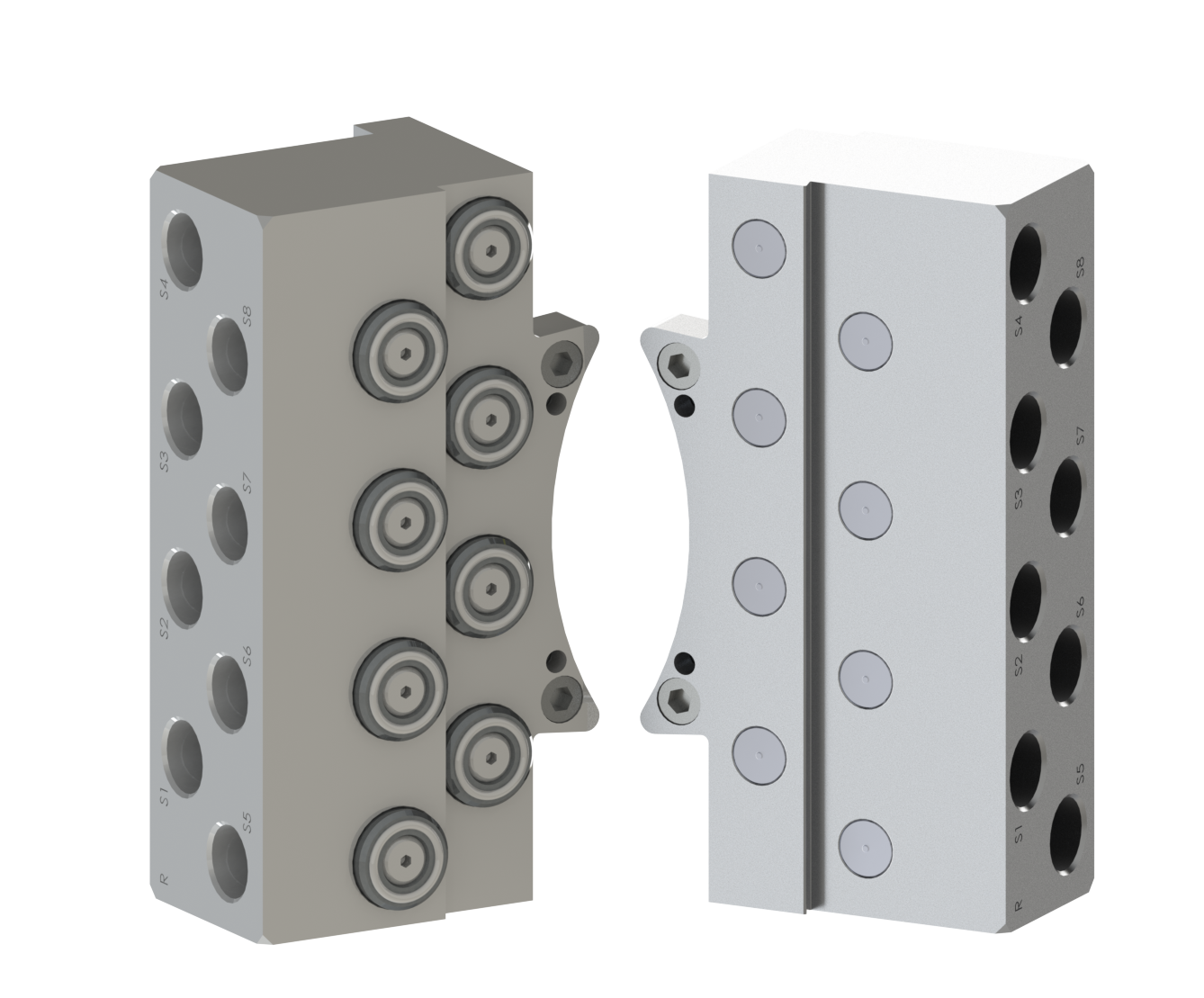

AR4 Master - (8) self-sealing ports
AR4 Tool - (8) self-sealing ports |
|
|
AR4 Master 2.89 lbs (1.31 kg)
AR4 Tool 2.04 lbs (0.93 kg) |
|
|
- Aluminum housing
- Stainless steel valve components
- Nitrile seals.
|
|
|
-20 °F - 150 °F (-28.9 °C - 65.6 °C) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-AR4.pdf |
AR4-M,AR4-T,AR5-T Module Drawing
|
|
| 9620-20-D-AR4.pdf |
AR4 Air Module Manual
|
|
No 3D models for this product are currently available. See your Account Representative for more information.
|
|
