9121-FH6-M | M | (4) G 1/2 (BSPP) self-sealing ports, fluid/air SS module - Master side |

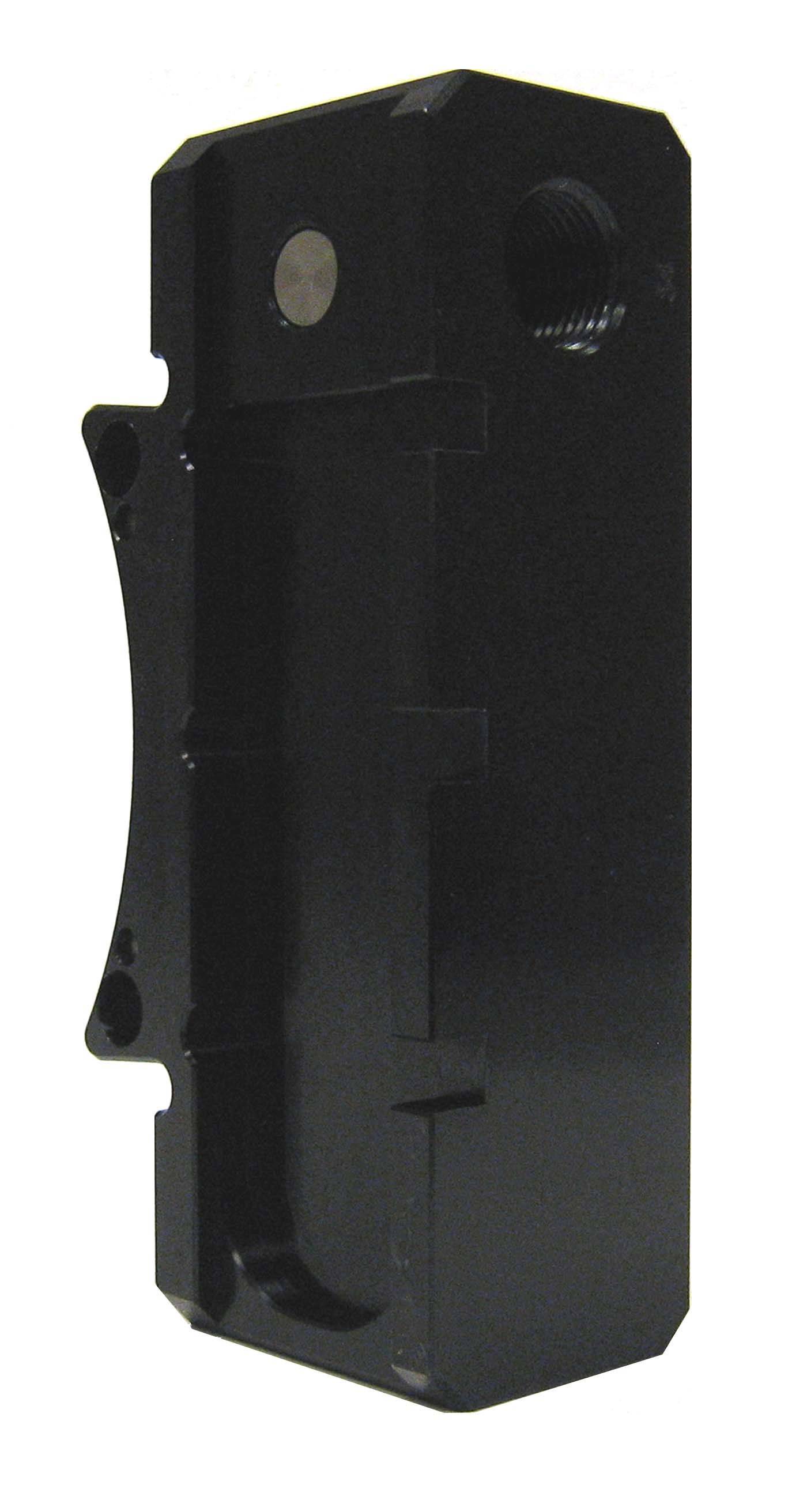

9121-AQ3-T | T | (1) G 1/2 (BSPP) self-sealing port - Air only module (Mates with FH6-M) - Tool side |
Description: |
(1) G 1/2 (BSPP) self-sealing port - Air only module (Mates with FH6-M) - Tool side only |
Weight: |
FH6 Master 6.6 lbs (3.0 kg) AQ3 Tool 2.0 lbs (0.9 kg) |
Materials: |
- Aluminum housing
- Stainless steel valve components
- Nitrile seals.
|
Operational Temperature Range: |
-20 °F - 150 °F (-28.9 °C - 65.6 °C) |
|
QC-113
| |
|
Flat C Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
QC-210
| |
| No |
QC-213
| |
| No |
QC-310
| |
| No |
QC-313
| |
| No |
QC-510
| |
| No |
QC-1210
| |
| No |
QC-1310
| |
| No |
QC-1510
| |
| No |
Custom Application QC Models |
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
There are no Cables associated with this module.
|
|
9630-20-FH6M-AQ3T.pdf |
FH6-M, AQ3-T Module Drawing
|
|
9620-20-D-FH6.pdf |
FH6 Fluid/Air Module Manual (incl AQ3-T)
|
|
9121-AQ3-T |
(1) 1/2 BSPP (G) self-sealing port - Air only module (Mates with FH6-M) - Tool side only
|
|
|
