Axially-Compliant Finishing Tools from ATI are compatible with a wide array of commercial media and offer users flexibility to accommodate a diverse assortment of materials and applications. Each model features a robust, high-torque, air motor and is differentiated by the style of media with which they are used.

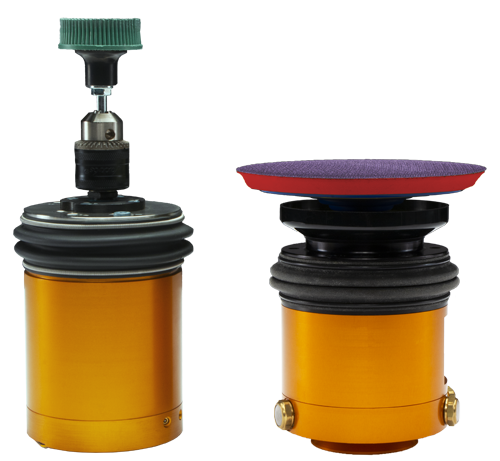

可使用直径为6英寸的标准环形或5英寸的研磨盘。真空配置允许用户处理灰尘和碎片。

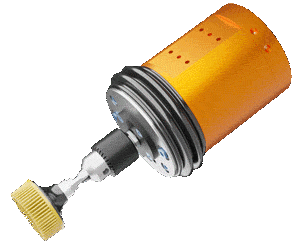

轴向打磨工具具有一个3/8“卡盘，可适配客户提供的各种打磨头，如磨刷、钢丝刷、砂光碟、抛光碟等。通过一个内置的主轴位置传感器，用户可以验证实际的打磨过程。

While the motor is engaged, the customer's media is pushed against the work piece using an adjustable air supply to control the contact force. This constant pneumatic force allows the tool to respond axially to variance in part profile. The force control system provides very high stiffness in the path direction while allowing low to high force adjustability to the user in the compliant direction. The floating head design of the tools reacts quickly to any variances in part position or robot path. As a result, robot programming time can be reduced by up to 75%.

功能与优点

• 可靠的叶片式马达：
  可靠的叶片式气动马达，齿轮减速设计，坚固耐用的部件，提供超常的功率以长期使用。


• 轴向浮动顺从：
  远程调节气压控制并保持浮动主轴上的恒定轴向力。这为工件提供恒定的接触力，并补偿刀具磨损和沿机器人路径的零件轮廓偏差。


• 高转矩性能：
  叶片马达增加扭矩，以响应在精加工过程中施加的负载。


• 安装选项：
  机器人，工作台，或夹具安装起来都特别简便。


• 与行业标准打磨头适配：
  这些产品适用于多种行业标准打磨头。
