Min. Force to Couple*: |
500 lbf |
|
Operational Temperature Range: |
-20 °F - 150 °F |
*Minimum force required to couple at 80 psi (lbs)
|
| 9630-20-GL5-E.pdf |

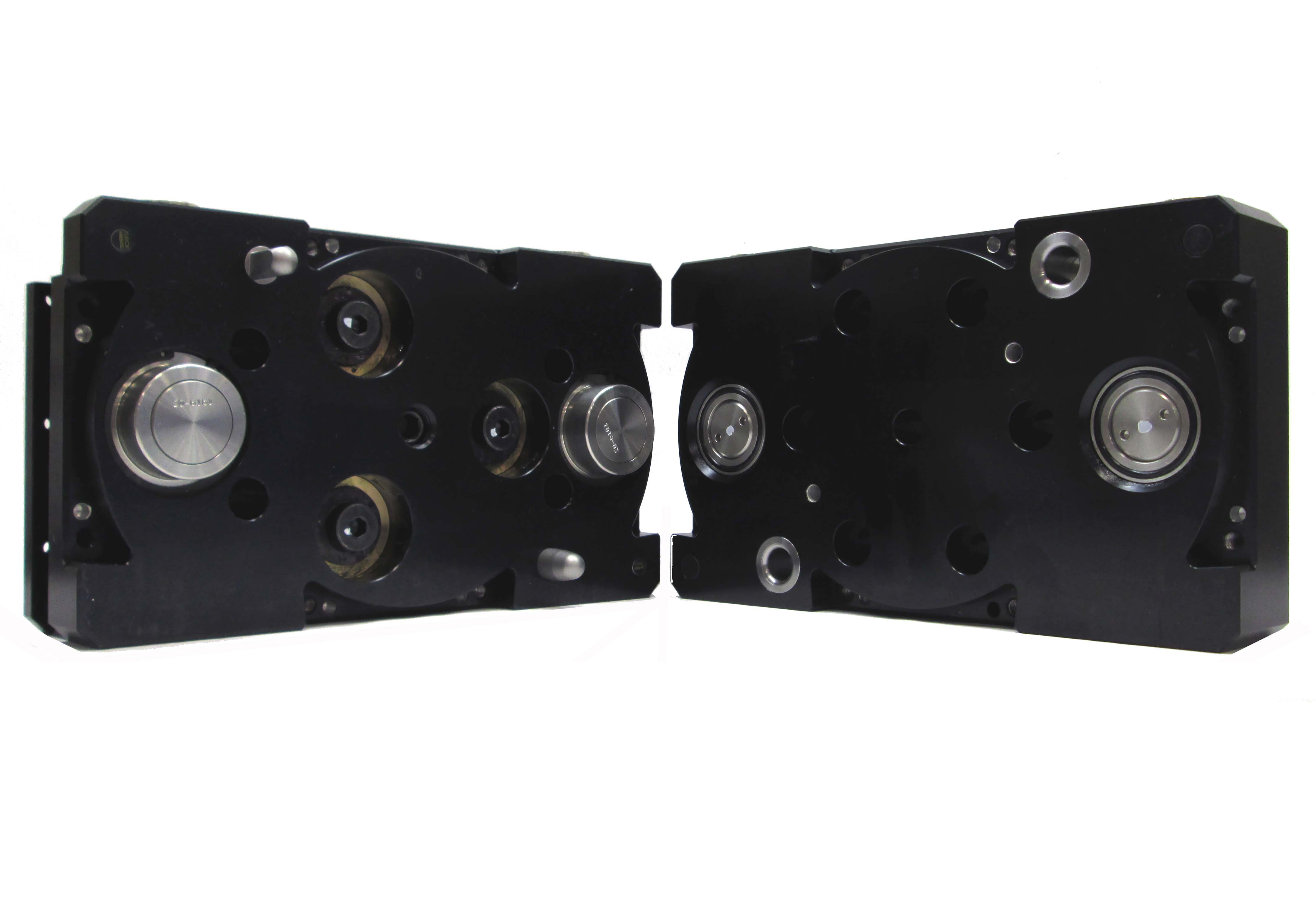

GL5 Compliant Utility Coupler, G Port Thread
|
| 9630-20-GL5-R.pdf |
GL5-R Utility Coupler Drawing
|
|
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
| UC-GL5 Master-Euro |
Compliant Utility Coupler with (2) G 1/2 Checked Ports & Short Alignment Pins
|
| UC-GL5 Tool-Euro |
Utility Coupler with (2) G 1/2 Ports
|
|
|
|
Drive Cylinder Model: |
GL-GC-B150S150-SG-E |
|
Axial Clamping Force*: |
2200 lbf |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
None currently available. See your Account Representative for more information.
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
|
Drive Cylinder Model: |
GL-GC-B150S150-SG-N |
|
Axial Clamping Force*: |
2200 lbf |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
| 9630-20-GL-GC-B150S150-SG-N.pdf |
GL Drive Cylinder 80mm Bore 100mm Stroke, NPT
|
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SR-N |
|
Axial Clamping Force*: |
620 lbf |
|
Sensing: |
extend and retract |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154. |
|
None currently available. See your Account Representative for more information.
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-S0-N |
|
Axial Clamping Force*: |
620 lbf |
|
Sensing: |
extend and retract |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154. |
|
None currently available. See your Account Representative for more information.
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SG-N |
|
Axial Clamping Force*: |
620 lbf |
|
Sensing: |
extend and retract |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154 |
|
None currently available. See your Account Representative for more information.
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SG-E |
|
Axial Clamping Force*: |
620 lbf |
|
Sensing: |
extend and retract |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154 |
|
None currently available. See your Account Representative for more information.
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
|
Drive Cylinder Model: |
GL-GC-B150S150-SG-E |
|
Axial Clamping Force*: |
2200 lbf |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
None currently available. See your Account Representative for more information.
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SG-E |
|
Axial Clamping Force*: |
620 lbf |
|
Sensing: |
extend and retract |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154 |
|
None currently available. See your Account Representative for more information.
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SR-E |
|
Axial Clamping Force*: |
620 lbf |
|
Sensing: |
extend and retract |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154. |
|
None currently available. See your Account Representative for more information.
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
*Axial clamp force at 80 psi for air, at rated voltage for electric
|
|
Contact Application Support for assistance in choosing compatible modules.
|
|
