Discrete Modules: VB12-M,VB13-M,VB12-T


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Control and Signal Modules > VB12-M,VB13-M,VB12-T





Product Description
  • The VB12/VB13 module is equipped with 36-Pin MS-3122 style connectors for interfacing with the Tool Changer’s Lock, Unlock, and Ready-to-Lock sensors and for supplying signals and power to the end-of-arm tooling
  • An electrical interface is provided on the Master module for support of a double-solenoid integrated valve (single-solenoid valve is not supported).
  • Internal pin block for valve electrical connections (available on the Jxx valve adapter with pass-through module).
  • Up to 29 pass-through signals available for customer use.
  • A flexible boot surrounds the pin block to seal the connection from moisture and liquid while coupled.
  • To prevent an unintended Tool release, the electrical power to the unlatch valve circuit is routed through a safety switch that is mounted to the Master (sensor not included). With the actuator mounted on the Tool Stand, the safety switch will insure that a Tool can only be released at the Tool Stand.
  • Compact design package.

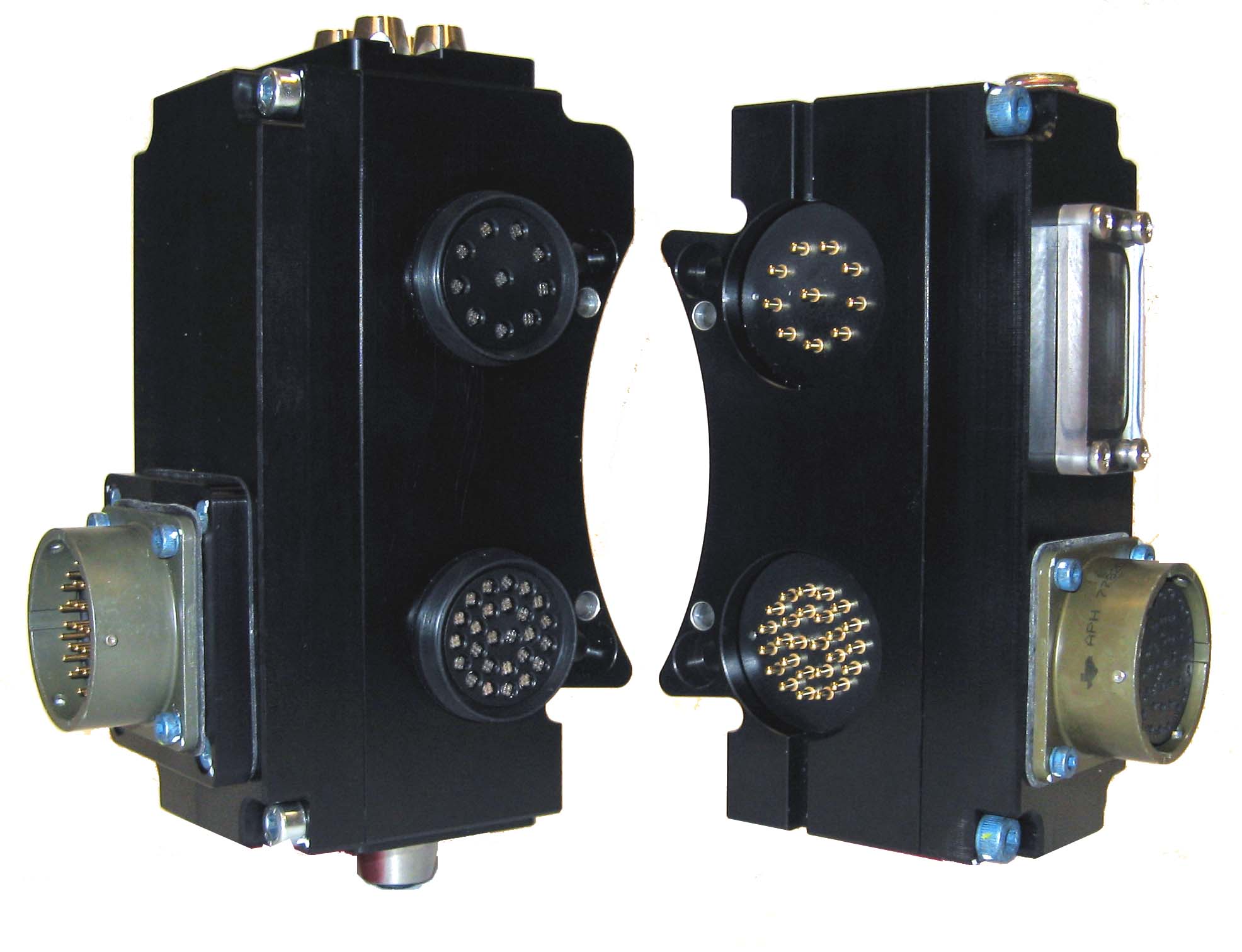

VB12 Modules (Master and Tool) shown
VB12 Modules (Master and Tool) shown

Part NumberSideNotesEDS File
9121-VB12-MMDiscrete Signal Module with 36-Pin PT Bayonet Connector, TSI on Master, Supports L/U/R1/R2 PNP Sensors and Integrated Valve (R1 and R2 in Series) - Master side
9121-VB13-MMDiscrete Signal Module with 36-Pin PT Bayonet Connector mounted on Right Angle Spacer Block, TSI on Master, Supports L/U/R1/R2 PNP Sensors and Integrated Valve (R1 and R2 in Series) - Master side
9121-VB12-TTDiscrete Signal Module with 36-Pin PT Bayonet Connector, TSI on Master, Supports L/U/R1/R2 PNP Sensors and Integrated Valve (R1 and R2 in Series) - Tool side

SpecificationsCompatible QCsConnectors and CablesDrawingsManuals3D CAD Models

Description: Discrete Signal Module with 36-Pin PT Bayonet Connector, TSI on Master, Supports L/U/R1/R2 PNP Sensors and Integrated Valve (R1 and R2 in Series). (VB13-M connector mounted on Right Angle Spacer Block.)
Weight: VB12 Master 1.70 lbs (0.77 kg)
VB13 Master 2.02 lbs (0.92 kg)
VB12 Tool 1.30 lbs (0.59 kg)
Materials:
  • Aluminum housings/covers
  • Clear polycarbonate window
  • Precious metal-plated contacts
  • Nitrile seals
  • Delrin pin block.
# Pins: 29 pass-through
Elec. Rating: Control Signals - 24VDC
Pass-through Signals - 5 Amp/250V
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
