Air Modules: P186,P186-E


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > P186,P186-E





Product Advantages
  • 1/8 NPT or G 1/8 (BSPP) ports.
  • (6) pneumatic pass-through ports.

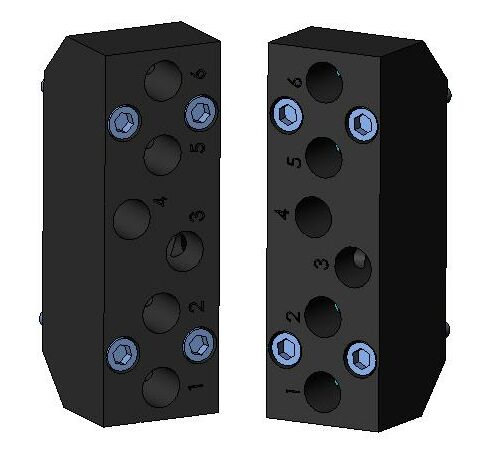

P186 Modules (Master and Tool)
P186 Modules (Master and Tool)

Part NumberSideNotes
9120-P186-MM(6) 1/8 NPT pass-through ports pneumatic module - Master side
9120-P186-M-EM(6) G 1/8 (BSPP)G (BSPP) ports pneumatic module - Euro - Master side
9120-P186-TT(6) 1/8 NPT pass-through ports pneumatic module - Tool side
9120-P186-T-ET(6) G 1/8 (BSPP) pass-through ports pneumatic module - Euro - Tool side

SpecificationsCompatible QCsDrawingsManuals

Description: (6) 1/8 NPT or G 1/8 (BSPP) Pass-through Ports Pneumatic Module
Cv Rating: 0.65
Weight: Master 0.30 lbs (0.14 kg)
Tool 0.35 lbs (0.16 kg)
Materials:
  • Anodized aluminum housing
  • Nitrile seals.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
