Air and Valve Adapters: Jxx Valve Adapters Dual Dou Sol Pas Th Prox Pres Sw


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Other Modules > Jxx Valve Adapters Dual Dou Sol Pas Th Prox Pres Sw





Product Advantages
  • Provides a single Lock and Unlock air supply connection to the compatible Tool Changer for actuation of the locking mechanism.
  • Mounts to Flat A of the Tool Changer.
  • Ledge mount feature provides for the mounting of a control/signal module to the adapter.
  • Lock and Unlock air connections to the Tool Changer or Utility Coupler are provided through ports in the ledge mount. O-rings in the body seal the connection.
  • The valve adapter is equipped with an exhaust muffler, dual double solenoid valves, and LED indicators for the solenoid Lock and Unlock position.
  • Access to the solenoid valve manual override is provided through a screw in the aluminum housing..
  • Control of the integrated valve is accomplished through the valve signal pass-through connector to the control/signal module.
  • The valve adapter is equipped with sensors to monitor the solenoid valves for detection of failure of either valve. Solenoid Valve 1 is monitored using a pressure sensor and Solenoid 2 is monitored using a proximity sensor.
  • The valve adapter, when used in combination with a Control/Signal Module such as a DL5, satisfies the PLd safety reliability level in accordance with ISO Standard 13849-1.
  • The system prevents an unsafe unlatch by ensuring that the Tool Changer can only Unlock when the Tool is in the tool stand.
  • Air supply must be filtered to 40 microns.

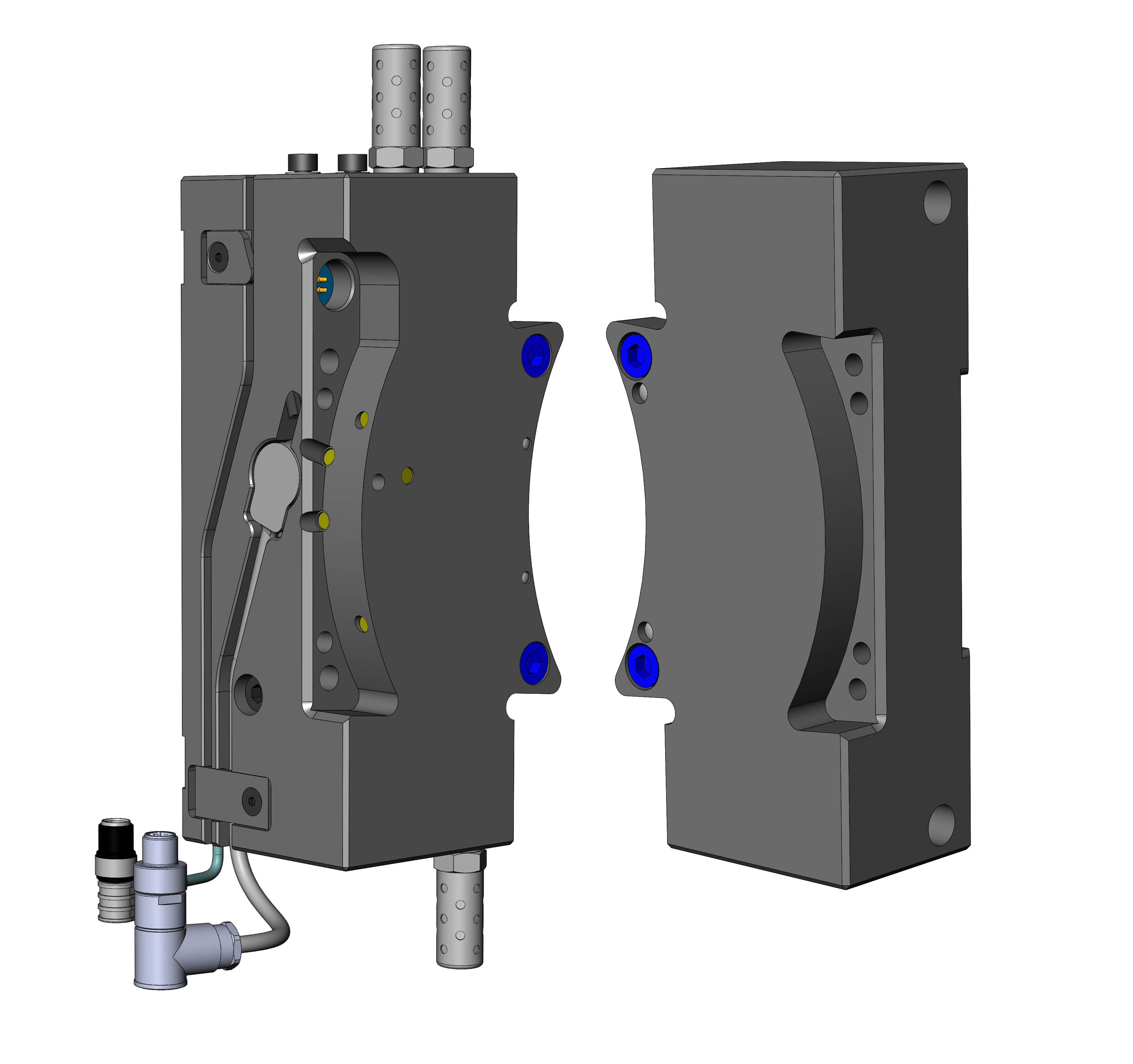

JR4 Modules (Master and Tool) shown
JR4 Modules (Master and Tool) shown

Part NumberSideNotes
9121-JP12-MMValve Adapter, Dual Double Solenoid Valves with Diagnostic Sensing, R, with Valve Pass-through, QC-210 - Master side
9121-JP13-MMValve Adapter, Dual Double Solenoid Valves with Diagnostic Sensing, R, with Valve Pass-through, QC-310 - Master side
9121-JR4-MMValve Adapter, Dual Solenoid Valves, NPT, with Proximity and Pressure Sensors, QC-210 - Master side
9121-JT7-MMValve Adapter, Dual Solenoid Valves, NPT, with Proximity and Pressure Sensors, QC-310 - Master side
9121-JU4-MMValve Adapter, Dual Double Solenoid Valves, G (BSPP), with Diagnostic Sensing and Valve Pass-through - QC-210 - Master side
9121-JU5-MMValve Adapter, Dual Double Solenoid Valves, G (BSPP), with Diagnostic Sensing and Valve Pass-through - QC-310 - Master side
9121-JR4-TTValve Adapter Spacer Block - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Jxx Valve Adapters-Dual Double Solenoid, Valve Pass-through, Prox & Pressure Sensors
Weight: JP12-M - 2.5 lbs (1.13 kg)
JP13-M - 3.0 lbs (1.36 kg)
JR4-M 2.5 lbs (1.13 kg)
JT7-M - 2.94 lbs (1.33 kg)
JU4-M 2.5 lbs (1.13 kg)
JU5-M 2.98 lbs (1.35 kg)
JR4-T 2.37 lbs (1.07 kg)
Materials:
  • Aluminum housing.
  • Stainless steel hardware.
Operational Temperature Range: 32 °F - 120 °F (0 °C - 48.9 °C)
