Alignment Modules: JL3,JL4


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Other Modules > JL3,JL4





Product Advantages
  • Provides for up to 1/2" x-y misalignment capability.
  • Adapter used to mount single or dual J16 pattern modules to QC.
  • (1) 1.25" alignment pin on Master side.
  • (1) 1.25" bushing on Tool side (round on JL3 Tool and elongated on JL4 Tool).
  • When using on Tool Changer, (2) JL3 Masters, (1) JL3 Tool and (1) JL4 Tool are required.

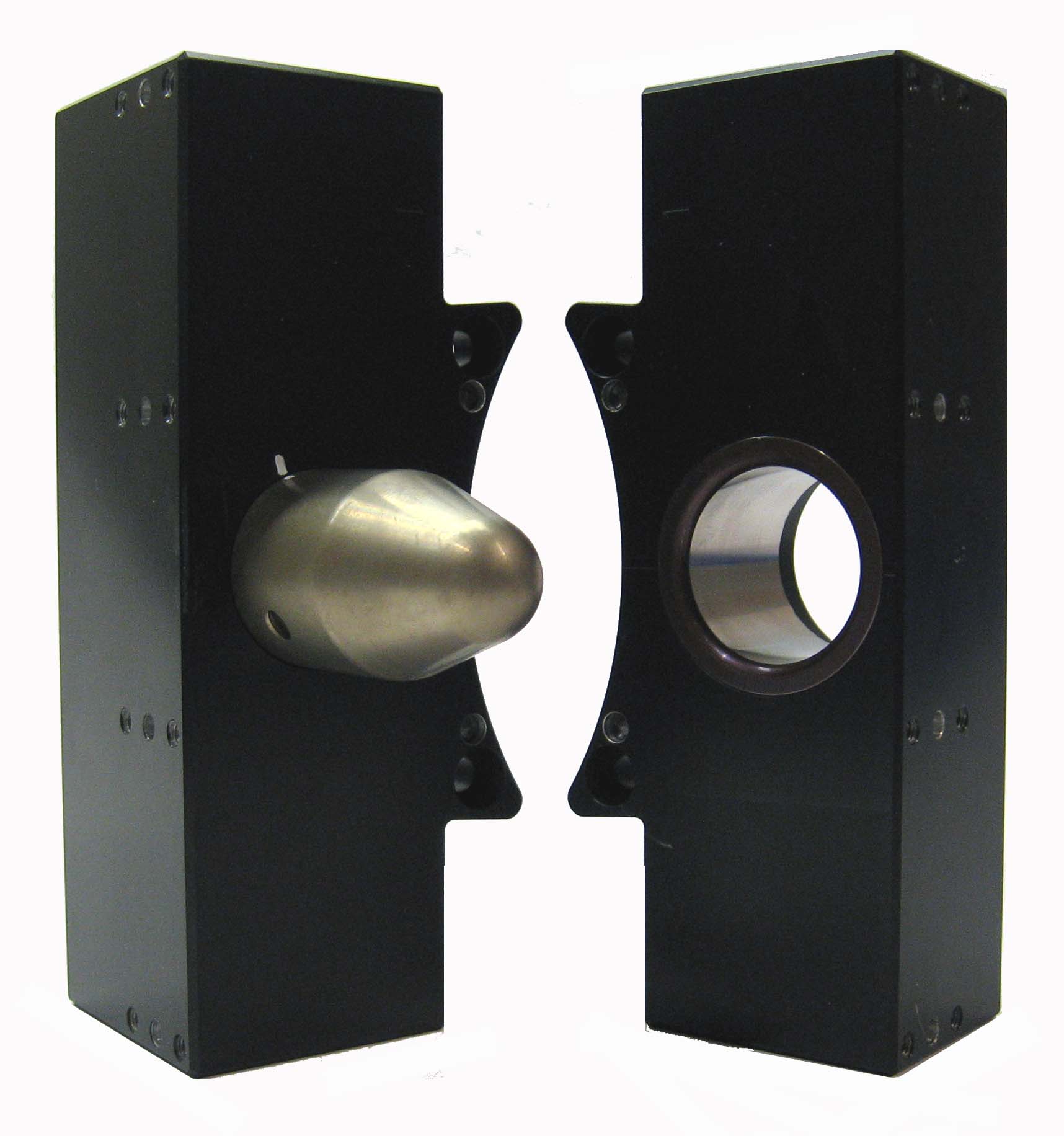

JL3 Modules (Master and Tool)
JL3 Modules (Master and Tool)

Part NumberSideNotes
9121-JL3-MMGross alignment module with 1.25" alignment pin - Master side
9121-JL3-TTGross alignment module with 1.25" round bushing - Tool side
9121-JL4-TTGross alignment module with 1.25" elongated bushing - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Gross alignment module, adapts single or dual J16 pattern modules to QC.
Weight: Master 3.15 lbs (1.43 kg)
Tool 1.90 lbs (0.86 kg)
Materials:
  • Anodized aluminum housing
  • Heat-treated stainless steel alignment pin
  • Hardened A2 tool steel bushing.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
