Fluid/Air Module: FF4,AQ5-T


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > FF4,AQ5-T





Product Advantages
  • Provides fluid/air service to the Master and Tool plates.
  • 1/2 NPT ports.
  • (5) self-sealing ports (Master- and Tool-side).
  • 3/8 poppets.
  • 300 series stainless steel for protection against corrosion.
  • 100 psi (6.9 bar) maximum.
  • Not for vacuum service.

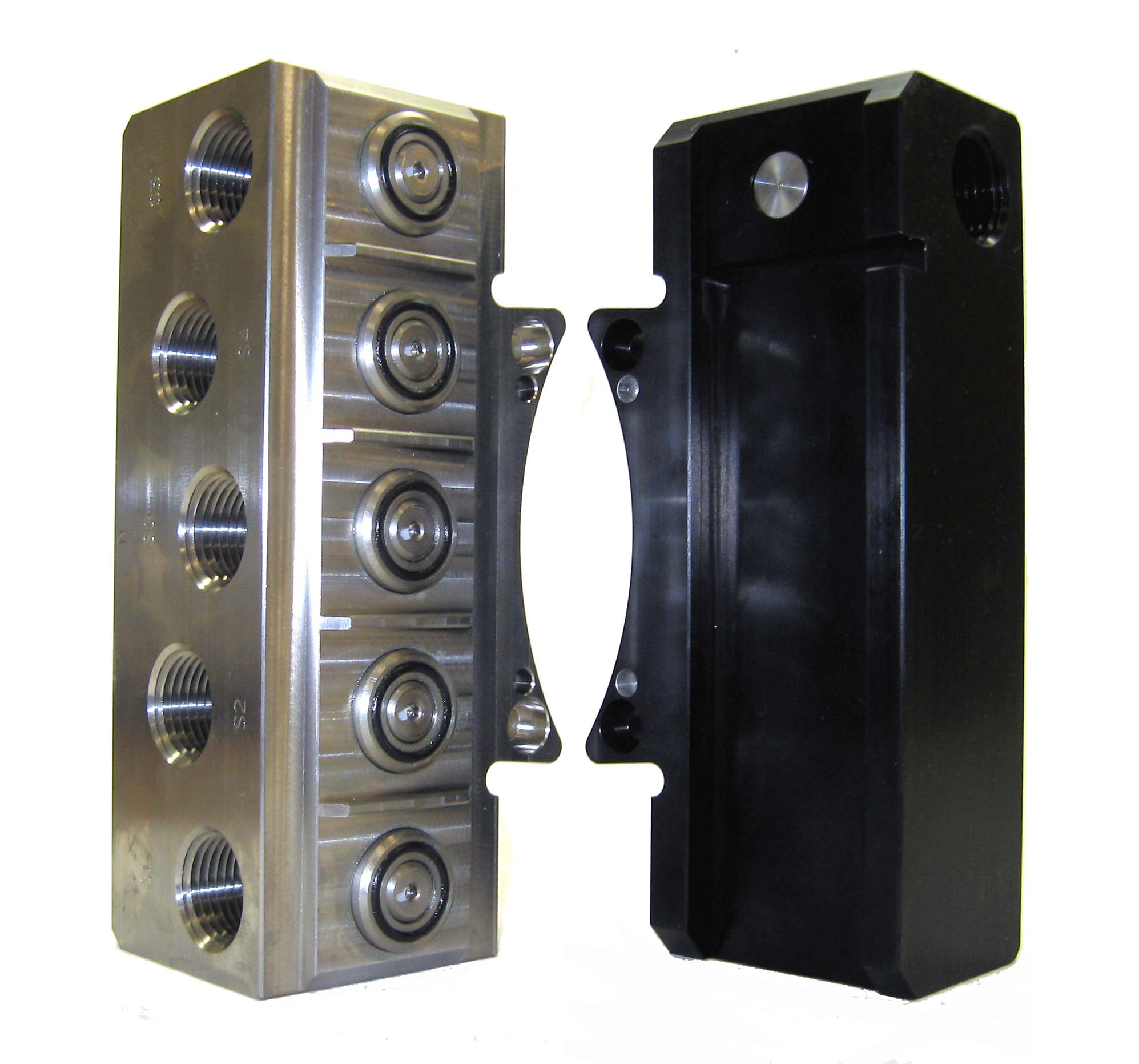

FF4 Master and AQ5 Tool Modules shown
FF4 Master and AQ5 Tool Modules shown

Part NumberSideNotes
9121-FF4-MMStainless Steel Fluid/Air Module with (5) 1/2 NPT self-sealing ports, 3/8 Poppets - Master side
9121-AQ5-TTPneumatic Module with (1) 1/2 NPT, 3/8 Poppets at S5 - Tool side
9121-FF4-TTStainless Steel Fluid/Air Module with (5) 1/2 NPT self-sealing ports, 3/8 Poppets - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Stainless Steel Fluid/Air Module with (5) 1/2 NPT self-sealing ports, 3/8 Poppets
Cv Rating: 1.6
Weight: FF4 Master 7.20 lbs (3.27 kg)
FF4 Tool 5.15 lbs (2.34 kg)
AQ5 Tool 2.04 lbs (0.93 kg)
Materials:
  • Stainless steel housings
  • Stainless steel, Nitrile, and PVC valve components.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
