Robotic Collision Sensor Model SR-81


Skip Navigation LinksHome > Products > Robotic Collision Sensors > Robotic Collision Sensor Models > SR-81



Product Advantages
  • High repeatability.
  • Generous range of motion.
  • Rugged design for axial compliance.
  • Energy absorption.
  • Consistent break-away response.
  • Flexible mounting surfaces.
  • Automatic reset.
  • Adjustable sensitivity.
  • Optional spring provides two trip points.
  • Optional Coolant Protection Boot (IP65-rated and made from fluoroelastomer for improved chemical resistance).

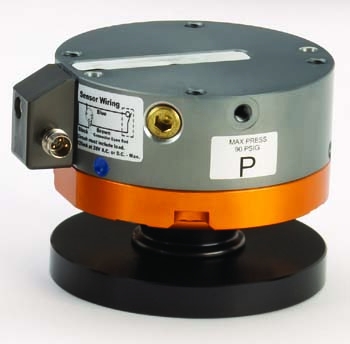

SR-81 Collision Sensor
SR-81 Collision Sensor
SpecificationsCablesDrawingsManuals


Angular Displacement ±13°
Torsional Displacement ±25°
Axial Displacement 0.34 in
Max. Air Pressure Setting 90 psi
Weight 1.28 lb
Moment Break-Away ** 120 lbf-in - 520 lbf-in
Torque Break-Away * 540 lbf-in
Axial Break-Away * 380 lb
* At 90 psi
** In a pressure range of 20-90 psi

Performance Data

Performance data is not available for this model.

NOTE: Moment graphs based on point of switch opening at approximately 1 degree deflection.
