Robotic Collision Sensor Model SR-48


Skip Navigation LinksHome > Products > Robotic Collision Sensors > Robotic Collision Sensor Models > SR-48



Product Advantages
  • High repeatability.
  • Large moment and torsional rotation.
  • Generous range of motion.
  • Optional spring provides two trip points.
  • Consistent break-away response.
  • Energy absorption.
  • Flexible mounting surfaces.
  • Automatic reset.
  • Rugged design for axial compliance.
  • Quick-response crash detection.
  • Adjustable sensitivity.
  • Low cost.

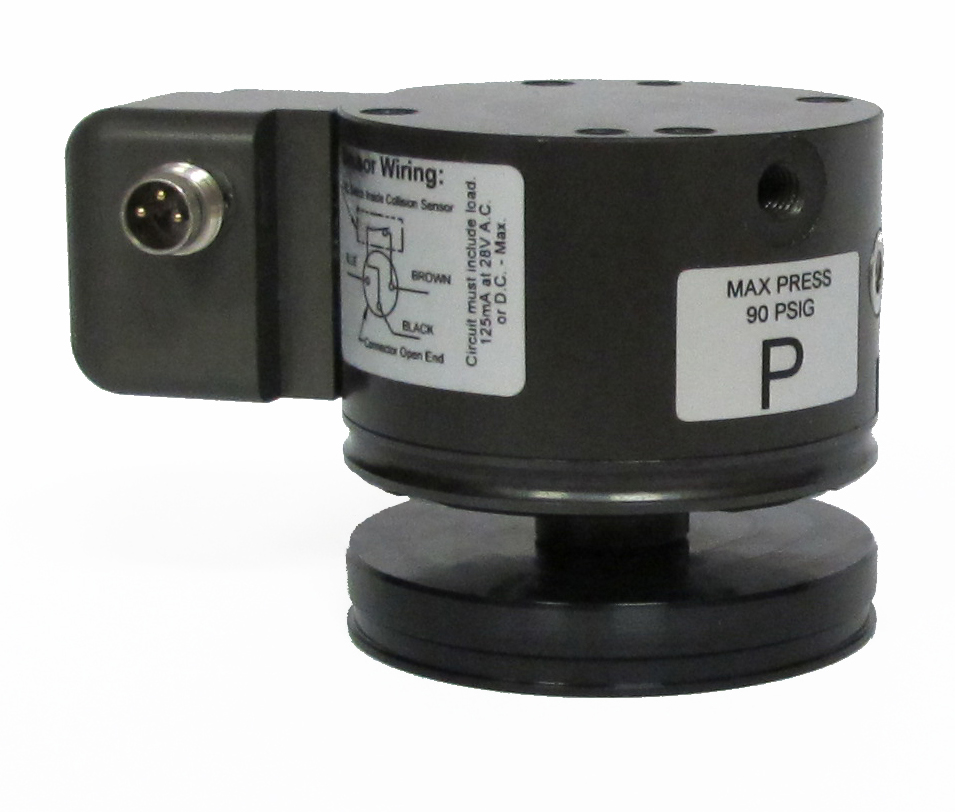

SR-48 Collision Sensor
SR-48 Collision Sensor
SpecificationsCablesDrawingsManuals


Angular Displacement ±13°
Torsional Displacement ±20°
Axial Displacement 0.2 in
Max. Air Pressure Setting 90 psi
Weight 0.55 lb
Moment Break-Away ** 20 lbf-in - 53 lbf-in
Torque Break-Away * 61 lbf-in
Axial Break-Away * 100 lb
* At 90 psi
** In a pressure range of 20-90 psi

Performance Data

Performance data is not available for this model.

NOTE: Moment graphs based on point of switch opening at approximately 1 degree deflection.
