Robotic Collision Sensor Model SR-131
Home
>
Products
>
Robotic Collision Sensors
>
Robotic Collision Sensor Models
>
SR-131
Product Advantages
High repeatability.
Generous range of motion.
Rugged design for axial compliacnce.
Energy absorption.
Consistent break-away response.
Flexible mounting surfaces.
Automatic reset.
Adjustable sensitivity.
Optional spring provides two trip points.
Optional Coolant Protection Boot (IP65-rated and made from fluoroelastomer for improved chemical resistance).
SR-131 Collision Sensor
Specifications
Cables
Drawings
Manuals
3D CAD Models
US (Standard)
SI (Metric)
Angular Displacement
±10°
Torsional Displacement
±20°
Axial Displacement
0.46 in
Max. Air Pressure Setting
90 psi
Weight
5.1 lb
Moment Break-Away **
670 lbf-in - 3000 lbf-in
Torque Break-Away *
2800 lbf-in
Axial Break-Away *
1100 lb
* At 90 psi
** In a pressure range of 20-90 psi

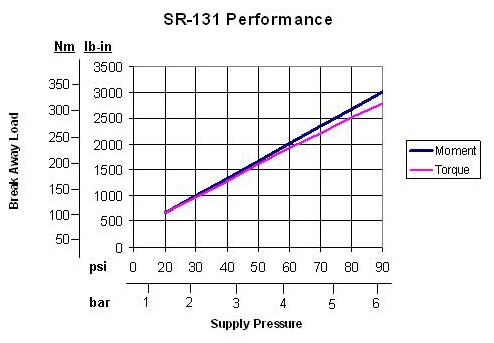

Performance Data
NOTE: Moment graphs based on point of switch opening at approximately 1 degree deflection.
