Discrete Modules: VB8

Product Advantages

The Discrete Signal Integrated Valve module allows for control of the Tool Changer and discrete signal pass-through to the End-of-Arm Tooling.
37-pin DDK, MS-style connector provided for customer interface.
An integrated, single or double solenoid valve (available on the Jxx valve adapter with pass-through module) controls the Tool Changer locking mechanism.
NPN (sinking-type) Ready-to-Lock (R1 and R2), Lock, and Unlock sensor inputs supported.
Up to 25 pass-through signals available for customer use.
A flexible boot surrounds the pin block and seals the connection from moisture while coupled.
Patented Tool Stand Interlock (TSI) technology is provided through a connector on the Tool module. Integration of a mechanical limit switch will allow the integrated solenoid valve to uncouple the Tool Changer ONLY when the Tool is in the Stand.
Tool-ID (0-7) available.
Compact design package.

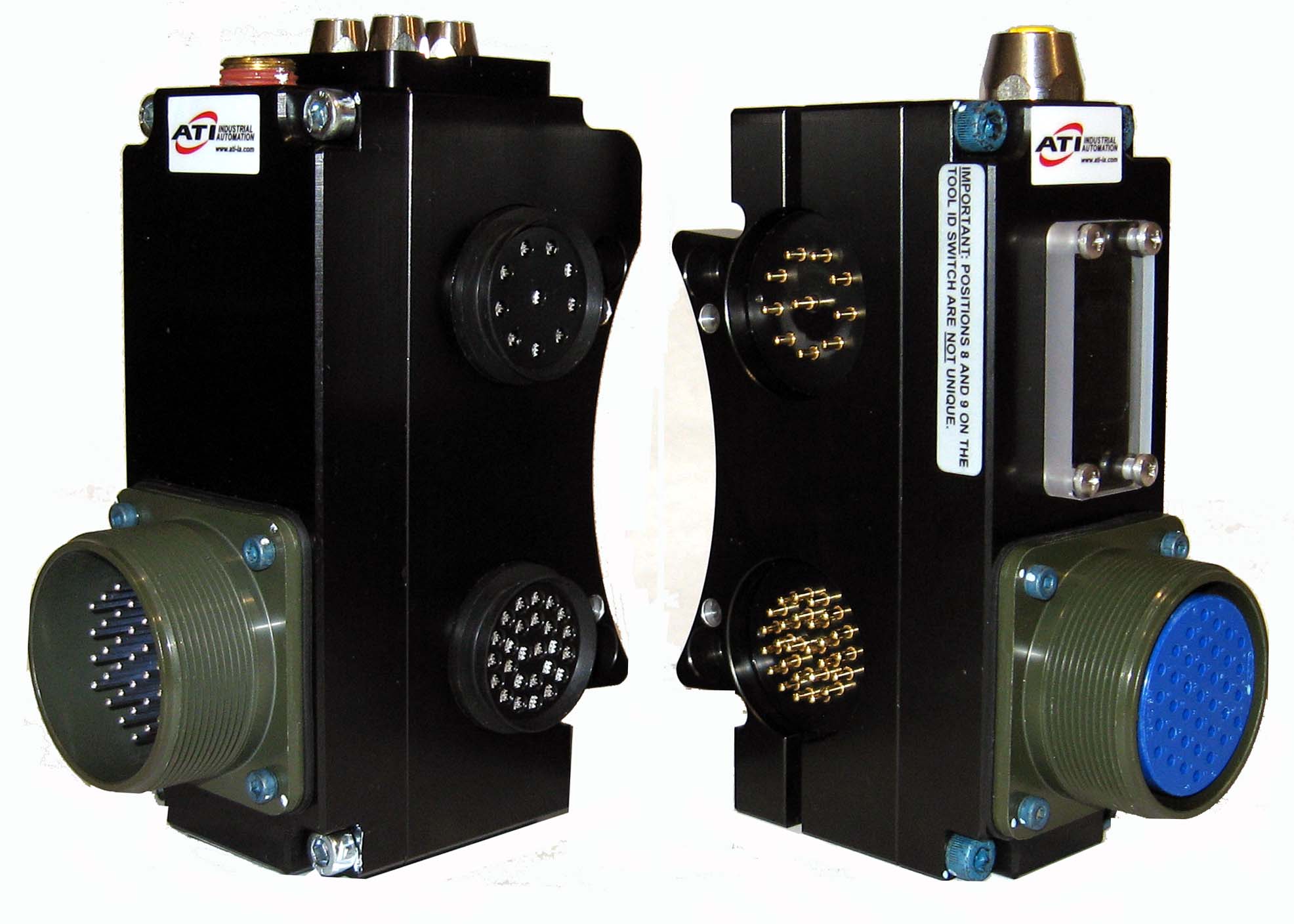

VB8 Modules (Master and Tool)

Part Number	Side	Notes	EDS File
9121-VB8-M	M	Discrete Module, Supports L/U/R1/R2 NPN Sensors and Integrated Valve, 37-Pin DDK Connector, TSI on Tool, 0-7 Tool-ID - Master side
9121-VB8-T	T	Discrete Module, 37-Pin DDK Connector, Tool Stand Interlock, 0-7 Tool-ID - Tool side

Specifications

Compatible QCs

Connectors and Cables

Drawings

Manuals

3D CAD Models

Description:

Discrete Module, Supports L/U/R1/R2 NPN Sensors and Integrated Valve, 37-Pin DDK Connector, TSI on Tool, 0-7 Tool-ID

Weight:

Master 1.86 lbs (0.84 kg)
Tool 1.55 lbs (0.70 kg)

Materials:

Elec. Rating:

Control Signals - 24VDC
Pass-through Signals - 5 Amp/250V

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
