Electrical Modules: TMB

Product Description

PROFIBUS, Interbus, and CAN data signals transmitted using “multibus” cables can be interfaced through the M23, 17-Pin connector found in the TMB modules. All 17 pins available for customer use – refer to customer drawing.
Rated to 5 Amp/250V.
Mates with the TMB Tool module.

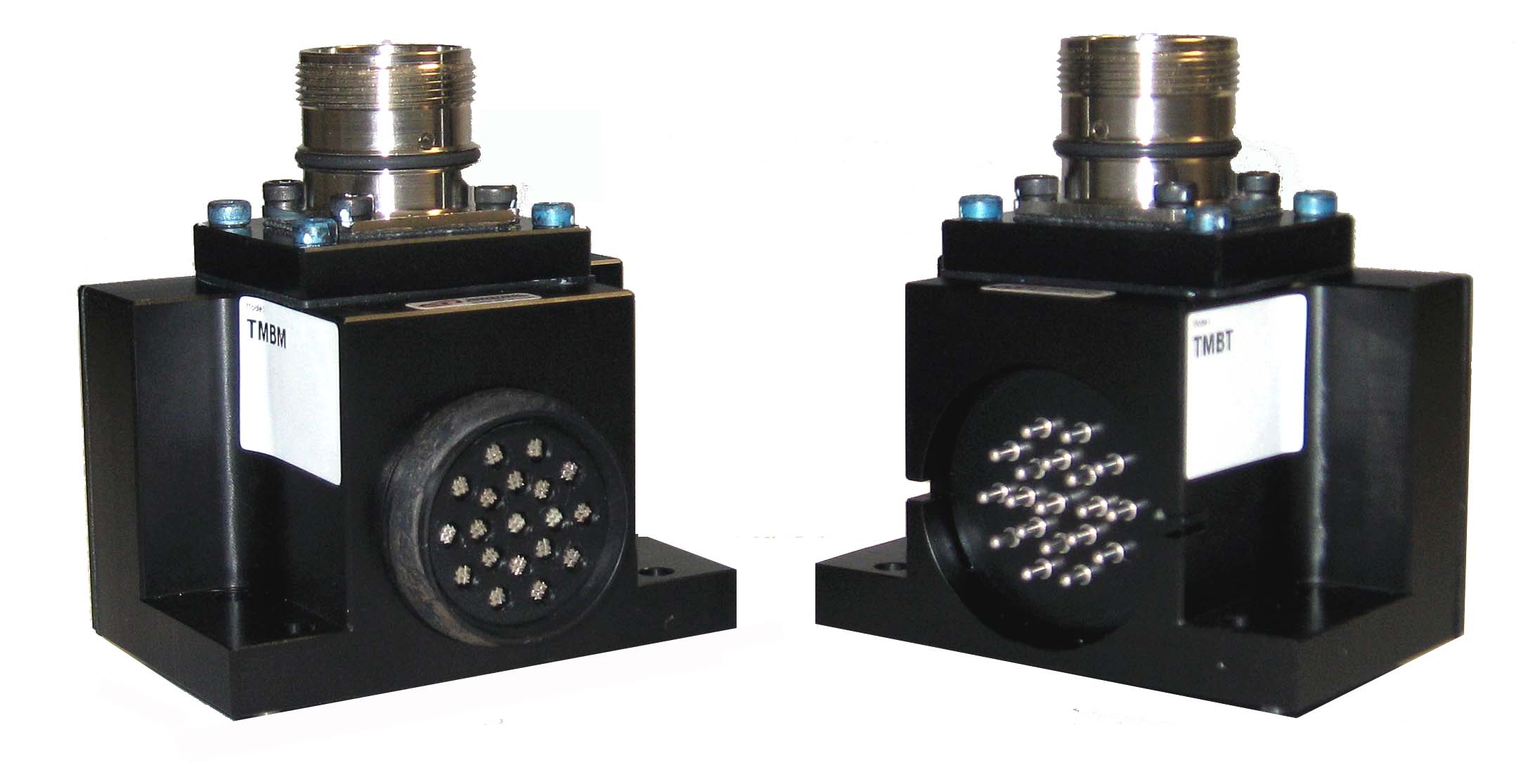

TMB Modules (Master and Tool)

Part Number	Side	Notes
9120-TMB-M	M	Pass-through electrical module for Multibus signals using a 17-pin M23 connector - Master side
9120-TMB-T	T	Pass-through electrical module for Multibus signals using a 17-pin M23 connector - Tool side

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Description:

Pass-through Electrical Module for Multibus signals using a 17-pin M23 connector

Materials:

# Pins:

Elec. Rating:

5 Amp/250V

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
