Power Modules: PC5

Product Description

Designed to carry high current from a power supply to customer tooling.
Five (5) rhodium-plated copper contacts, each capable of carrying 150 Amps when coupled.
Voltage should not exceed 600 Volts.
Uses advanced, patented, cone-mating technology to transfer current from Master to Tool.
Mating conical surfaces provide a large contact area, excellent misalignment capability, and allow efficient coupling/uncoupling without high spring forces or excessive wear.
Power to be disconnected and discharged prior to tool changes. Module is not a switch.
Contact tips easily replaced, if required.
Recessed and shrouded Master side contacts prevent accidental human contact.
Center pin extended for first mate/last break protection.
PG29 fitting plates currently available.
Contact bases sized for #6 through #4 AWG cable.

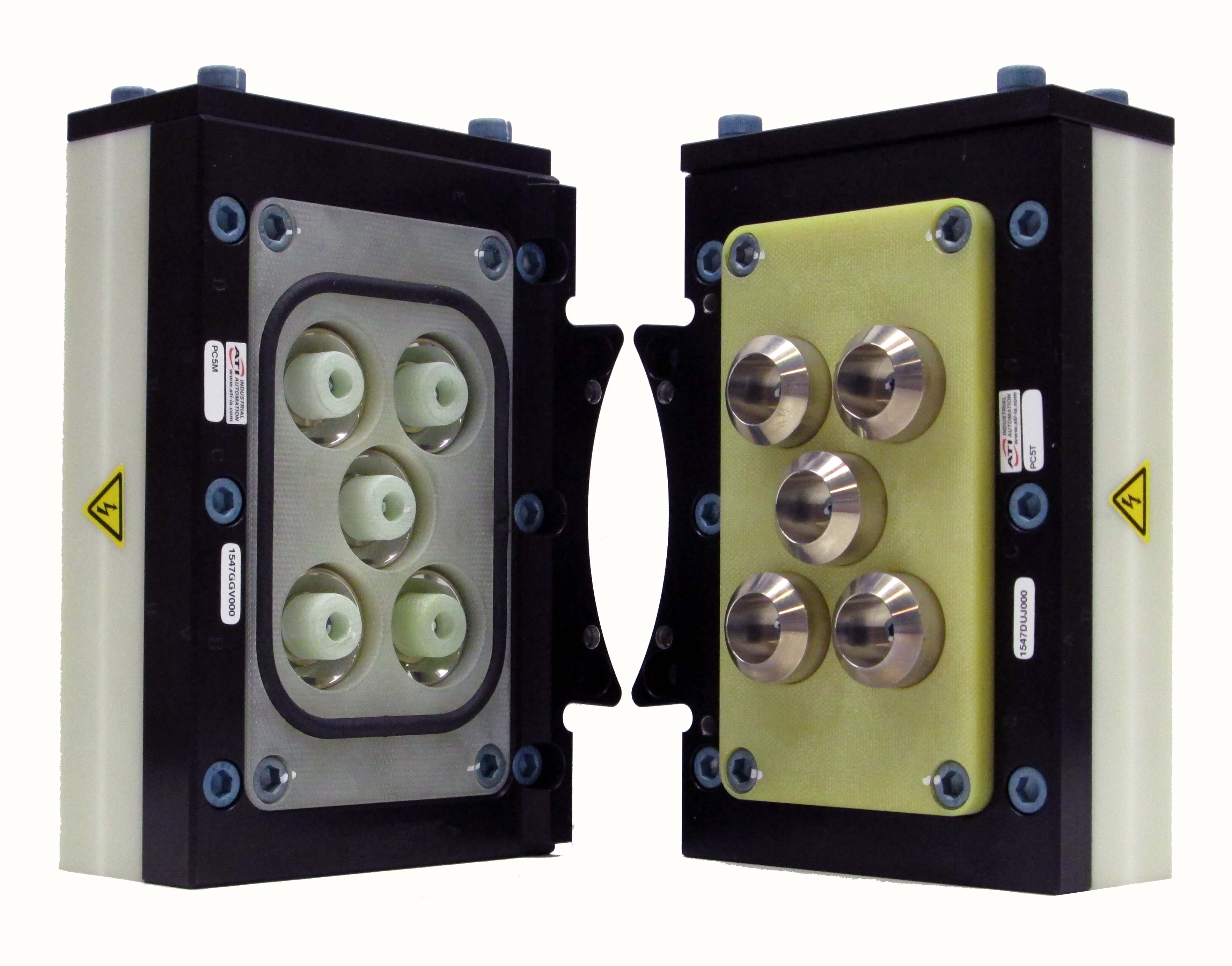

PC5 Modules (Master and Tool)

Part Number	Side	Notes
9121-PC5-M	M	Power Module, 150A, 5-Contact, #4 Contact Bases - Master side
9121-PC5-T	T	Power Module, 150A, 5-Contact, #4 Contact Bases - Tool side

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Fitting Plates

Description:

Power Module, 150 Amp, 5-Contact, #4 Contact Bases

Weight:

Master 3.28 lbs (1.49 kg)
Tool 3.38 lbs (1.53 kg)

Materials:

# Pins:

Elec. Rating:

150 Amp

Operational Temperature Range:

-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC)
