| 9121-PA2-M | M | (3) Contacts, #2 wire, 200 Amp, 600V rating - Master side |
| 9121-PA2-T | T | (3) Contacts, #2 wire, 200 Amp, 600V rating - Tool side |
| 9121-PAA-T | T | Primary Current Protective Bracket for Tool Side. Used when no PA2 on Tool side of QC. |
|
|
Description: |

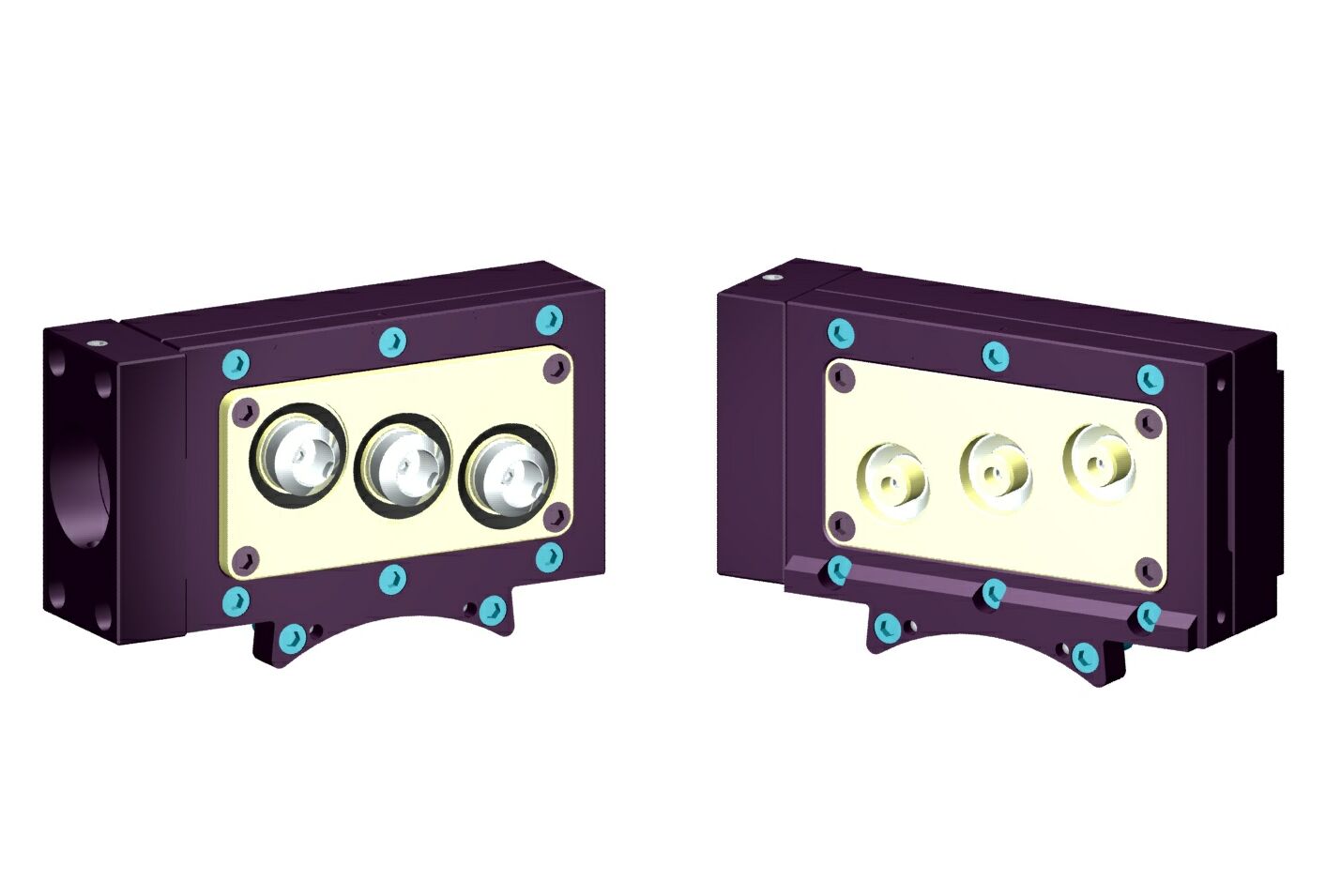

(3) Contacts, #2 wire, 200 Amp, 600V Rating Primary Current Module |
|
Weight: |
Master 2.9 lbs (1.3 kg)
Tool 2.9 lbs (1.3 kg)
PAA Tool 0.5 lbs (0.23 kg) |
|
Materials: |
- Precious metal-plated contacts.
|
|
Elec. Rating: |
200 Amp/600V @ 100% Duty Cycle |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9121-PAA-T.pdf |
Primary Current Protective Bracket for Tool Side
|
| 9630-20-PA2.pdf |
PA2 Module Drawing
|
|
| 9620-20-F-PA2.pdf |
PA2 Primary Current Module Manual
|
|
| 9121-PA2-M (A End Open) |
Primary Current Master module with (3) contacts, #2 wire, 200A rating
|
| 9121-PA2-T (C End Open) |
Primary Current Tool module with (3) contacts, #2 wire, 200A rating
|
| 9121-PA2-T (A End Open) |
Primary Current Tool module with (3) contacts, #2 wire, 200A rating
|
| 9121-PA2-M (C End Open) |
Primary Current Master module with (3) contacts, #2 wire, 200A rating
|
|
