Electrical Modules: MTC6A

Product Description

4-Pin, Power contacts rated to 100 Amp/600VDC.
2-Pin, Signal contacts rated to 30 Amp/250VDC.
IP65 Environmental Protection only when coupled.
Fully-replaceable contacts on Master and Tool.
Field-wireable M40 cord grip for 22 - 32mm cable ranges.
Module should be mounted to a Tool Changer, QC-40 or larger, to handle maximum rated current and 100% duty cycle without overheating.
Allowable maximum ambient temperature under these conditions is 100 F.
Do not couple or uncouple the modules unless power has been disconnected and discharged both upstream and downstream.
Protective Earth (PE) or safety ground to be supplied by the customer's equipment/cabling.
Pin 1 of Master and Tool is tied internally to module housing for safety ground. Safety ground can be removed at customer site.
Radial exit.
Partially potted.
Mates with MTC6 Master and Tool.

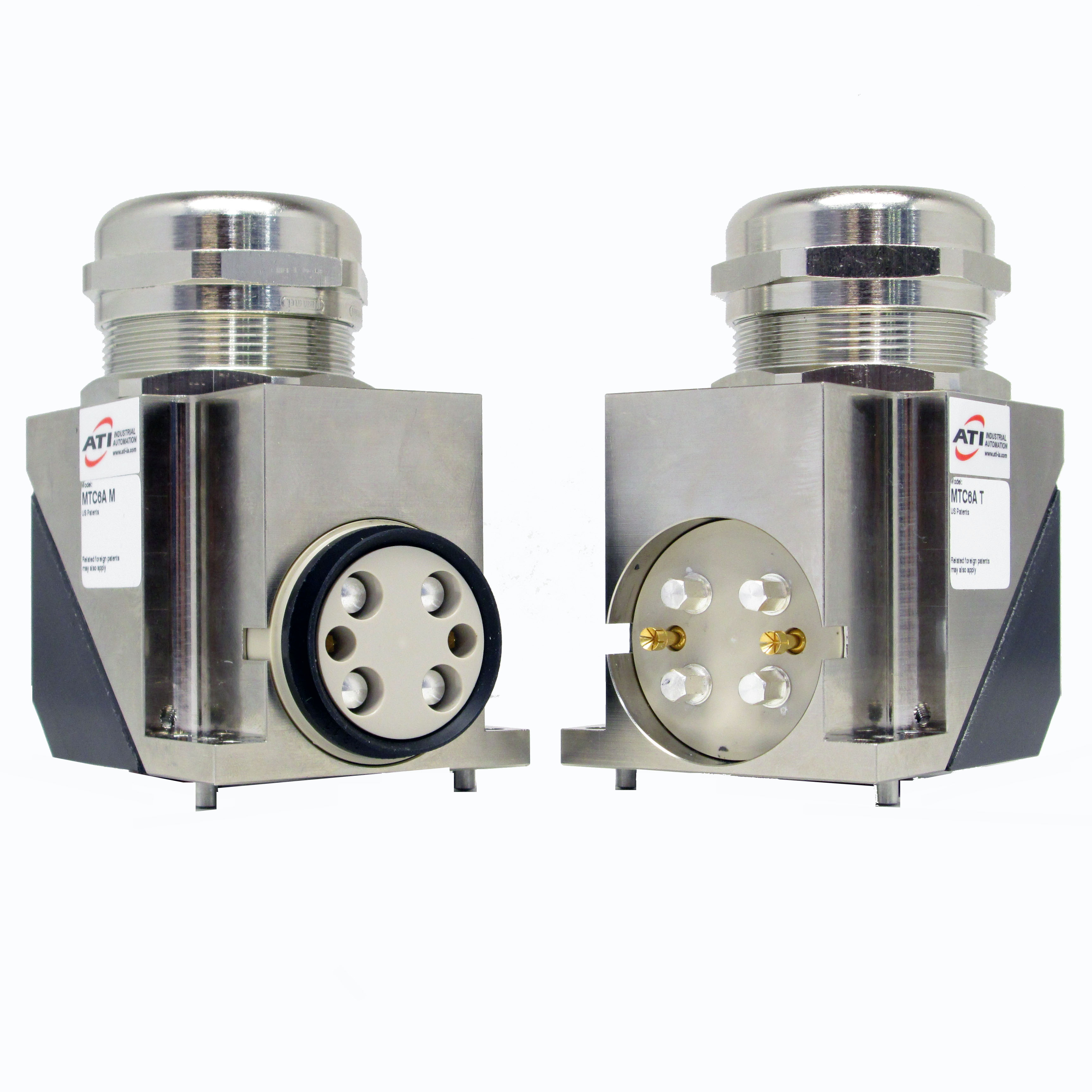

MTC6A Modules (Master and Tool)

Part Number	Side	Notes
9120-MTC6A-M	M	High Current 100A Module, 4 power + 2 brake pins, field-wireable cord grip, radial exit, partially potted - Master side
9120-MTC6A-T	T	High Current 100A Module, 4 power + 2 brake pins, field-wireable cord grip, radial exit, partially potted - Tool side

Specifications

Compatible QCs

Drawings

Manuals

3D CAD Models

Description:

High Current 100A Module, 4 power + 2 brake pins, field-wireable cord grip, radial exit, partially potted

Weight:

Master 1.7 lbs (0.77 kg)
Tool 1.6 lbs (0.73 kg)

Materials:

# Pins:

Power - 4
Signal - 2

Elec. Rating:

Power - 100 Amp/600VDC when coupled to a QC-40 or larger.
Signal - 30 Amp/250VDC.

Operational Temperature Range:

-20 ｰF - 100 ｰF (-28.9 ｰC - 37.8 ｰC)
