Description: |

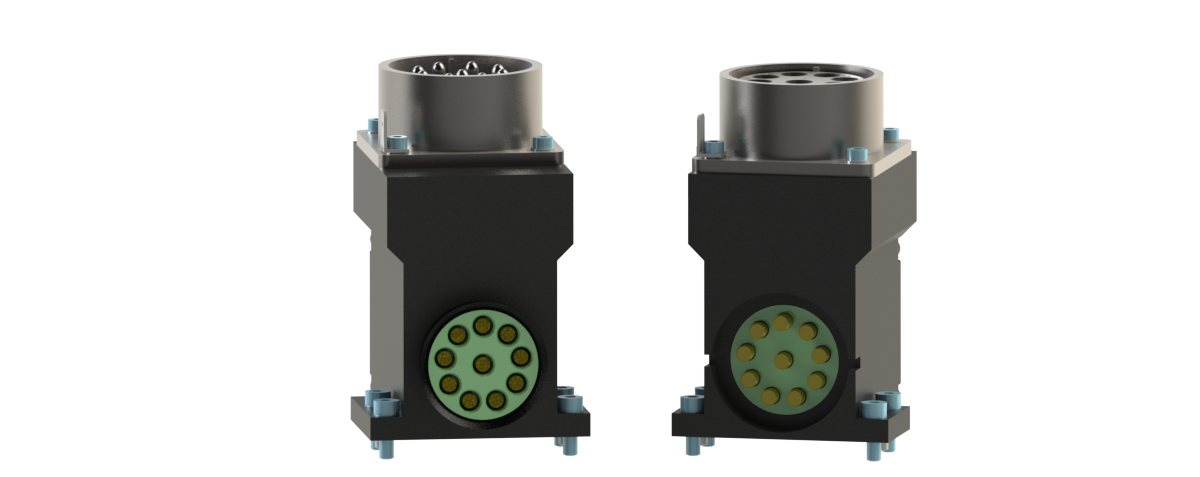

9-pin, 28 Amp (30 Amp for MT9A), 500VAC/700VDC electrical module (available with Viton seals) |
|
Weight: |
MT9VL, MTS9, MT9A Master 1.23 lbs (0.56 kg)
MTS9, MT9A Tool 1.07 lbs (0.49 kg) |
|
Materials: |
- Aluminum housing
- Specially designed contact pins for low resistance
- Precious-metal-plated contact pins
- Nitrile seal.
|
|
Elec. Rating: |
28 Amps (30 Amp for MT9A)/500VAC/700VDC |
|
Operational Temperature Range: |
-20 ｰF - 100 ｰF (-28.9 ｰC - 37.8 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
| ATI P/N | Type | Manufacturer Info. |
| 1510-2312010-09 |
90°
|
| Amphenol | ACS08E28-84S(003) |
| ignore (unable to delete per ECO 21863) | |
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
| ATI P/N | Type | Manufacturer Info. |
| 1510-1312011-09 |
90°
|
| Amphenol | ACS08E28-84P(003) |
|
|
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-MT9A.pdf |
MT9A Module Drawing
|
| 9630-20-MTS9.pdf |
MTS9 Module Drawing
|
|
| 9620-20-F-MT9 Family.pdf |
MT9 Family of High Power Modules Manual (includes MT9, MTS9,MT9VL,MT9A)
|
|
| 9120-MTS9-T |
28-amp 9-pin electrical tool module 500VAC/700VDC. Module should be mounted to a tool changer, QC-100 or larger, to handle maximum rated current and 100% duty cycle without overheating. Allowable maximum ambient temperature under these conditions is 100 F. Straight Version
|
| 9120-MTS9-M |
28-amp 9-pin electrical axial master module 500VAC/700VDC
|
|
|
| -VL | Operational Temperature Range rated to 257°F (125°C). Adds Viton seals and Teflon-jacked wires.
(Add -VL at the end of module number, after -M or -T for Master or Tool.) |
|
