Description: |

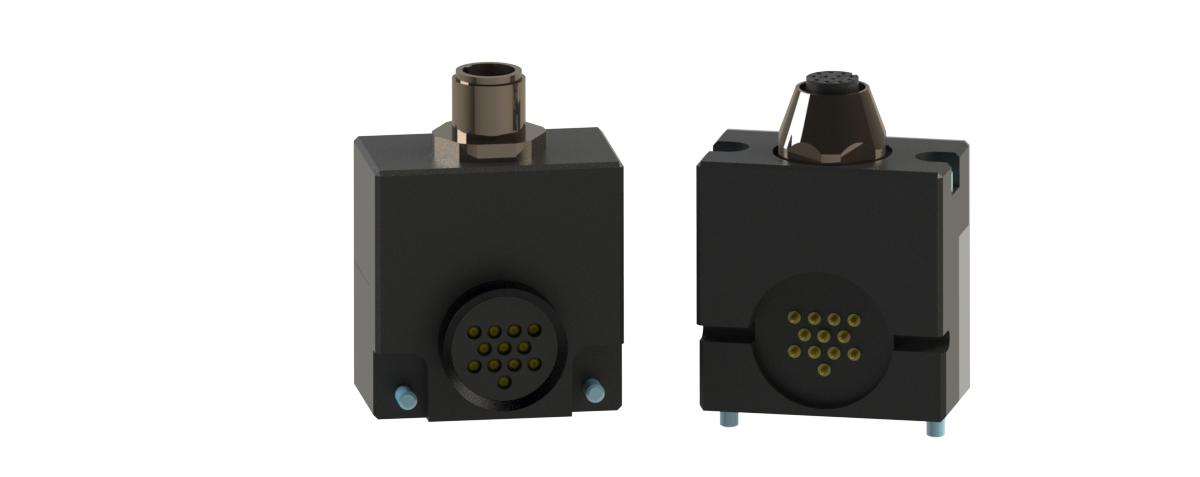

12-pin, 2 Amp/50VDC electrical module with 12 mm Industrial Connector, sealed and No-Touch |
|
Weight: |
Master 0.15 lbs (0.07 kg)
Tool 0.16 lbs (0.07 kg) |
|
Materials: |
- Precious-metal-plated contact pins
- Anodized aluminum
- Delrin®.
|
|
Elec. Rating: |
2 Amp/50VDC |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
Cables
Separate connector mates are not available for this module.
|
| 9630-20-K12.pdf |
K12 Electrical Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
| 9120-K12-T |
Euro-Fast connector passing twelve signals. 3AMP/250VAC - Tool Side
|
| 9120-K12-M |
Euro-Fast connector passing twelve signals. 3A/250VAC - Master Side
|
|
