Electrical Modules: G12 Family

Product Description

Flexible connector orientation with 5-position, 180° adjustability to optimize robot dress pack.
M12 12-pin A-Coded Connector.
Up to eight (8) pass-through signals.
Tool ID for end-effector verification, up to 16 tools.
Mates interchangeably with G19, R19, S19, or T19 modules.*
Finger-safe contacts on Master side.

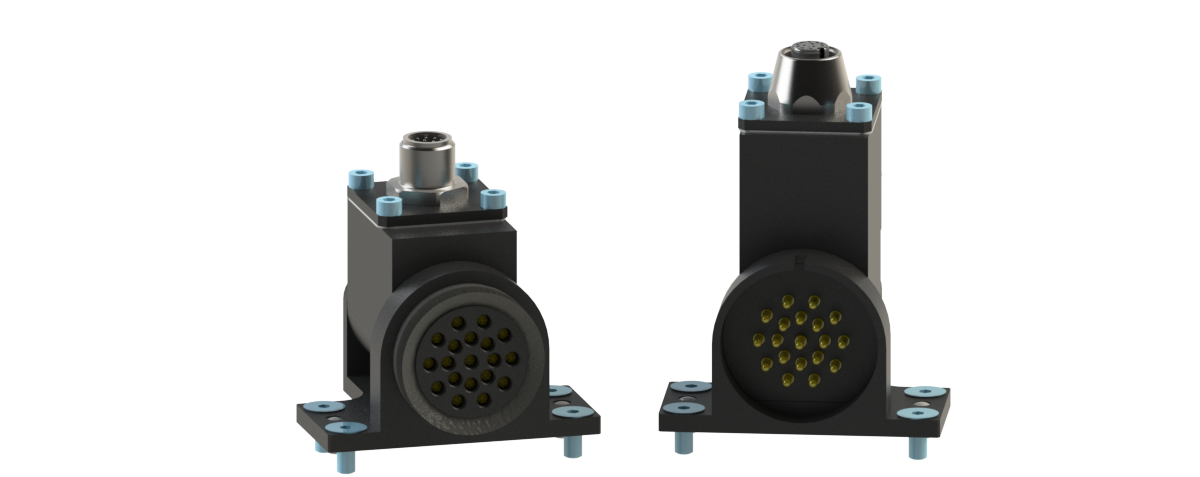

G12 Master and G8 Tool Modules

Part Number	Side	Notes
9120-G12-M	M	G12 Adjustable Module, Supports 12 Pass-thru Signals, M12 12-pin Male Connector - Master Side
9120-G8-T	T	G8 Adjustable Module, Supports 8 Pass-thru Signals, M12 12-pin Female Connector, 0-F (0-15) Tool ID - Tool Side

Specifications

Compatible QCs

Connectors and Cables

Drawings

Manuals

3D CAD Models

Description:

G-Style Adjustable module with M12, 12-pole connector supporting 16 (0-F) Tool ID.

Weight:

G12-M: 0.3 lbs (0.14 kg)
G8-T: 0.3 lbs (0.14 kg)

Materials:

# Pins:

Elec. Rating:

<50V, 2A
Tool Switch ID - 30mA/30VDC

Operational Temperature Range:

0 ｰF - 120 ｰF (-17.8 ｰC - 48.9 ｰC)

*All pass-thru signals may not be supported.
