Servo Modules: EF50


Skip Navigation Links





Product Advantages
  • Passes electrical power and signal connections to a transgun servomotor.
  • Power and signal cables can be routed separately.
  • Power and signal circuits are electrically isolated both from each other and the Tool Changer.
  • The wiring has EMI/RF shielding to protect it from noise.
  • No-Touch contacts on Master.
  • Moisture and dust seals.
  • Extended center pin for first contact.
  • 5-Pin M12 female connector on Tool module for specially-designed battery back-up (9005-20-2374).
  • Internal 4-Position terminal strip for auxiliary wiring on Master and Tool.
  • Strain relief for cord for auxiliary wiring.

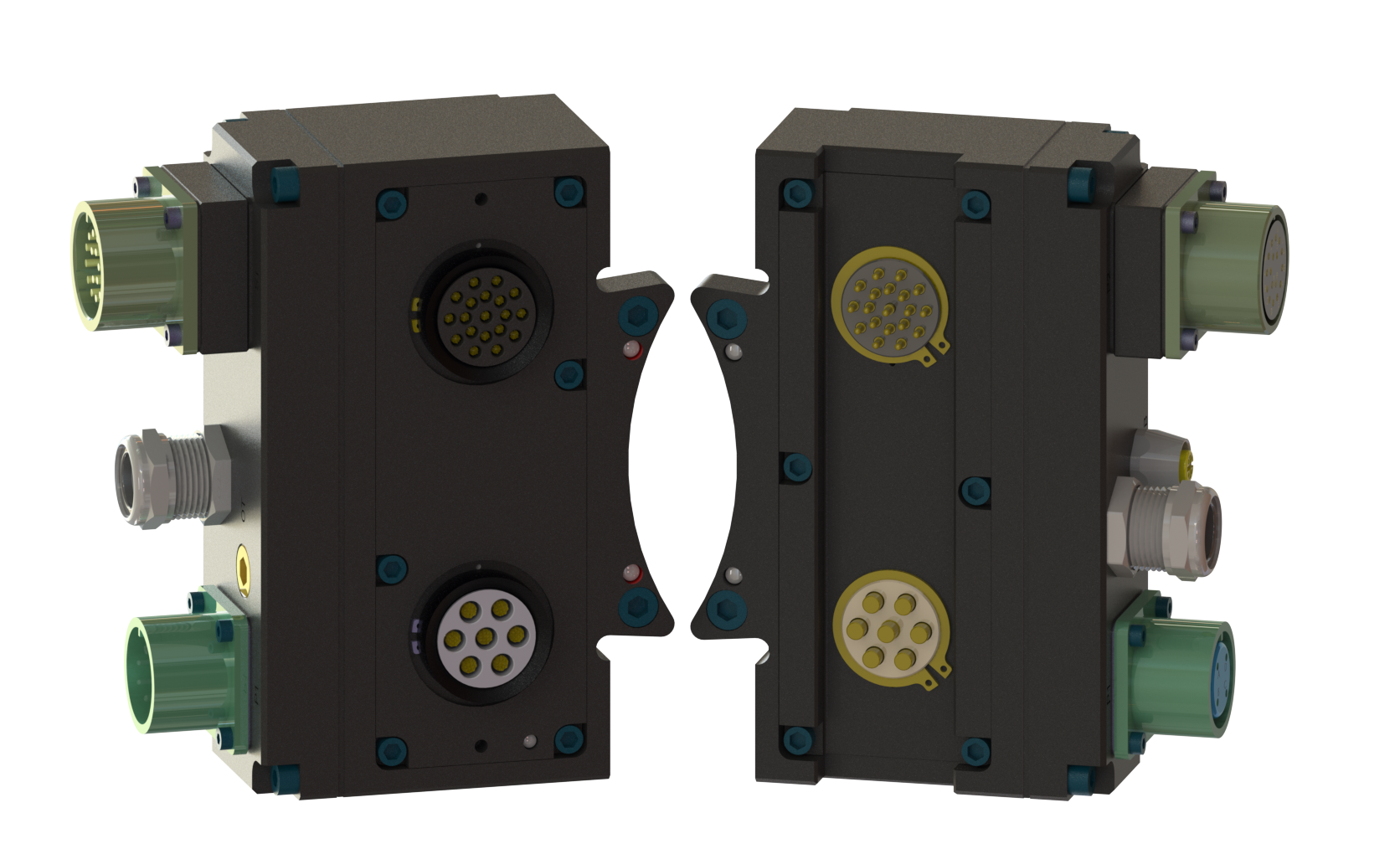

EF50 Modules (Master and Tool)
EF50 Modules (Master and Tool)

Part NumberSideNotes
9121-EF50-MMFanuc Servo Module with 4-Pin Male Power, 17-Pin Male Encoder, Adaptive Weld Connects, 4-position Terminal Strip, No Brake. Compatible with EF50 and EF24 Tools - Master side
9121-EF50-TTFanuc Servo Module with 4-Pin Female Power, 17-Pin Female Encoder, Adaptive Weld Connects, 5-Pin Female Battery Backup, 4-position Terminal Strip, No Brake, Compatible with EF50 and EF9 Masters- Tool side

SpecificationsCompatible QCsConnectors and CablesDrawingsManuals3D CAD Models

Description: Fanuc Servo Module with 4-Pin Power, 17-Pin Encoder, Adaptive Weld Connects, 4-position Terminal Strip, No Brake. Tool side has 5-Pin Female Battery Backup, 4-position Terminal Strip.
Weight: EF50 Master 2.83 lbs (1.28 kg)
EF50 Tool 2.59 lbs (1.27 kg)
Materials:
  • Aluminum housings
  • Delrin® fitting plates
  • Nitrile seals
  • Precious-metal-plated contacts
  • Ultem® and Delrin® blocks.
# Pins: Power - 4
Signal - 17
Elec. Rating: Power - 13 Amp/500VAC/700VDC
Signal - 3 Amp/250VAC/30VDC
Operational Temperature Range: -20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC)
