PROFINET Modules: DL8


Skip Navigation Linksホーム > 製品 > ロボット式ツールチェンジャ > モジュールとアクセサリ > モジュール > 制御と信号のモジュール > DL8





Product Advantages
  • The DL8 modules allow for communication and control of the Tool Changer using PROFINET.
  • An integrated Ethernet switch allows a single PROFINET cable to control the Tool Changer and connect downstream PROFINET devices.
  • 5-Pin Push-Pull Connector for US1 and US2 power.
  • 10-Pin Push-Pull Hybrid Connection.
  • Arc Prevention applied to US1 and US2 power. Lock, Unlock, and RTL sensing with LED cables on the Master.
  • 5-digit Tool-ID from the Tool module also supported (0-99999).
  • Safety circuit meets ISO13849 PLd.
  • Must use JR4, JU4, or JU5 Valve Adapters to control the Tool Changer locking mechanism.

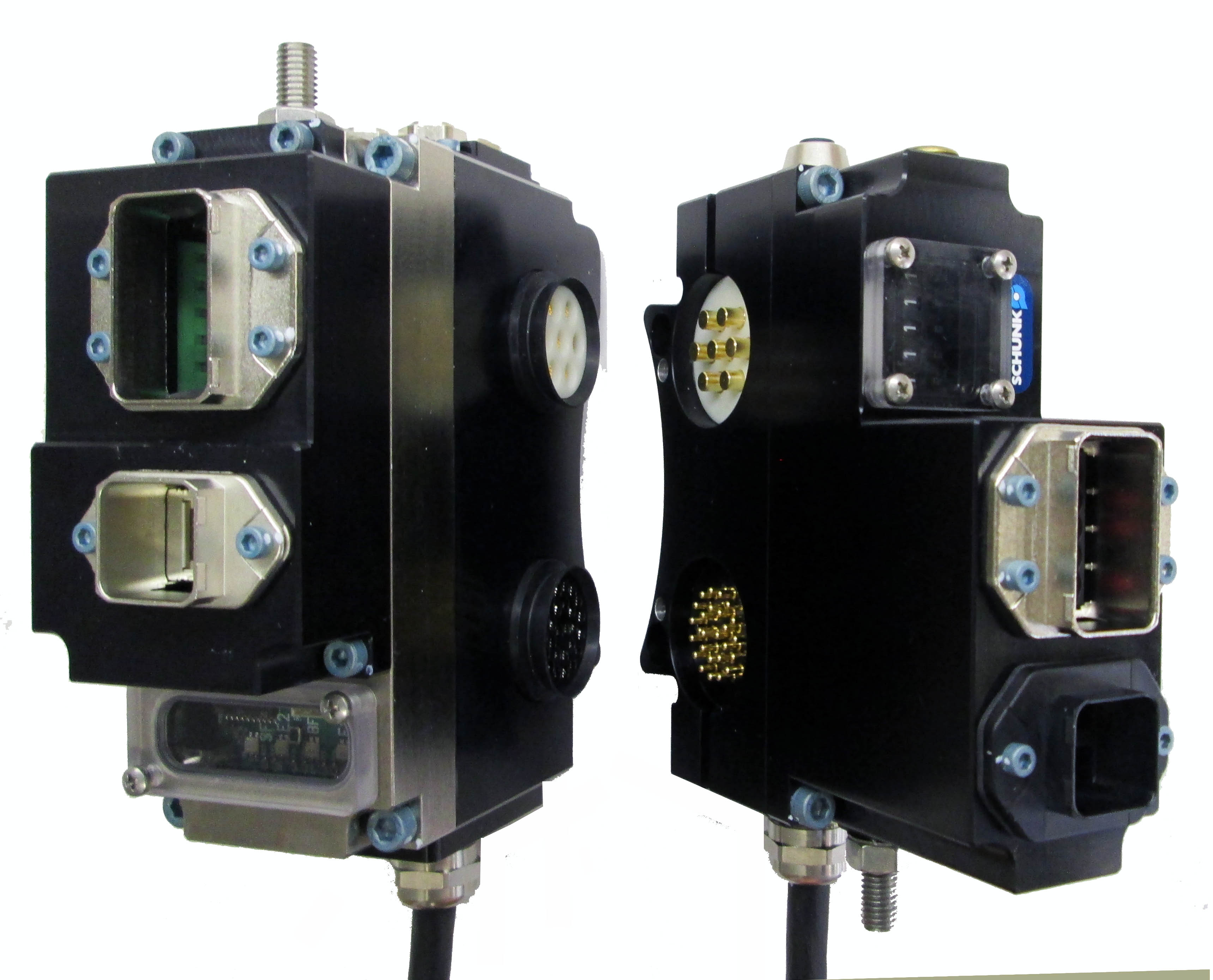

DL8 Modules (Master and Tool)
DL8 Modules (Master and Tool)

Part NumberSideNotesEDS File
9121-DL8-MMPROFINET Module with integrated Ethernet switch, RJ45 Push-Pull connector for Ethernet communication, 5-Pin Push-Pull Connector for US1 and US2 power, 10-Pin Push-Pull Hybrid Connection, TSI on the Tool, Arc Prevention applied to US1 and US2 power. Lock, Unlock, and RTL sensing with LED cables on the Master. 5-digit Tool-ID from the Tool module also supported. Safety circuit meets ISO13849 PLd - Master side9031-20-1037.zip
9121-DL8-TTPROFINET Module provides one Ethernet port and supports 5-digit Tool-ID through the Master module. RJ45 Push-Pull connector for Ethernet, 5-Pin Push-Pull Connector for US1 and US2 power, 10-Pin Push-Pull Hybrid Connection, 5-Pin M12 to support TSI on the Tool, Tool-ID 0-99999 adjustable with thumbwheel switches. Supports Arc Prevention on the Master - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: PROFINET Module with integrated Ethernet switch, RJ45 Push-Pull connector for Ethernet communication, 5-Pin Push-Pull Connector for US1 and US2 power, 10-Pin Push-Pull Hybrid Connection, TSI on the Tool, Arc Prevention applied to US1 and US2 power. Lock, Unlock, and RTL sensing with LED cables on the Master. 5-digit Tool-ID from the Tool module also supported. Safety circuit meets ISO13849 PLd.
Weight: Master 2.69 lbs (1.22 kg)
Tool 2.37 lbs (1.08 kg)
Materials:
  • Anodized aluminum housing
  • Precious-metal-plated spring and contact pins
  • Nitrile seals.
# Pins: Power: Push Pull, 5
Integrated Tool Changer I/O: (4) 3
Measurement Connection: 10
Integrated Connection to valve adapter Diagnostic Sensors: 3 and 4
Integrated Connection to Valve Adapter: 4
Elec. Rating: Power Pass-through - 10 Amp
Signal - 3 Amp/30 VDC max.
Operational Temperature Range: 32 ーF - 120 ーF (0 ーC - 48.9 ーC)
