PROFINET Modules: DL12


Skip Navigation Linksホーム > 製品 > ロボット式ツールチェンジャ > モジュールとアクセサリ > モジュール > 制御と信号のモジュール > DL12





Product Advantages
  • The DL12 modules allow for communication and control of the Tool Changer using a PROFINET interface.
  • An integrated Ethernet switch allows a single PROFINET cable to control the Tool Changer and connect downstream PROFINET devices.
  • A 5-Pin Minifast connector is provided on the Master and Tool modules for interfacing with power.
  • A D-Coded M12 connector is provided on the Master and Tool modules for interfacing with PROFINET.
  • Arc Prevention applied to US1 and US2 power, Lock, Unlock, and RTL sensing with LED cables on the Master.
  • 5-Digit Tool-ID from the Tool module also supported (0-99999).
  • Must use JR4, JT7, JU4, or JU5 Valve Adapters to control the Tool Changer locking mechanism.

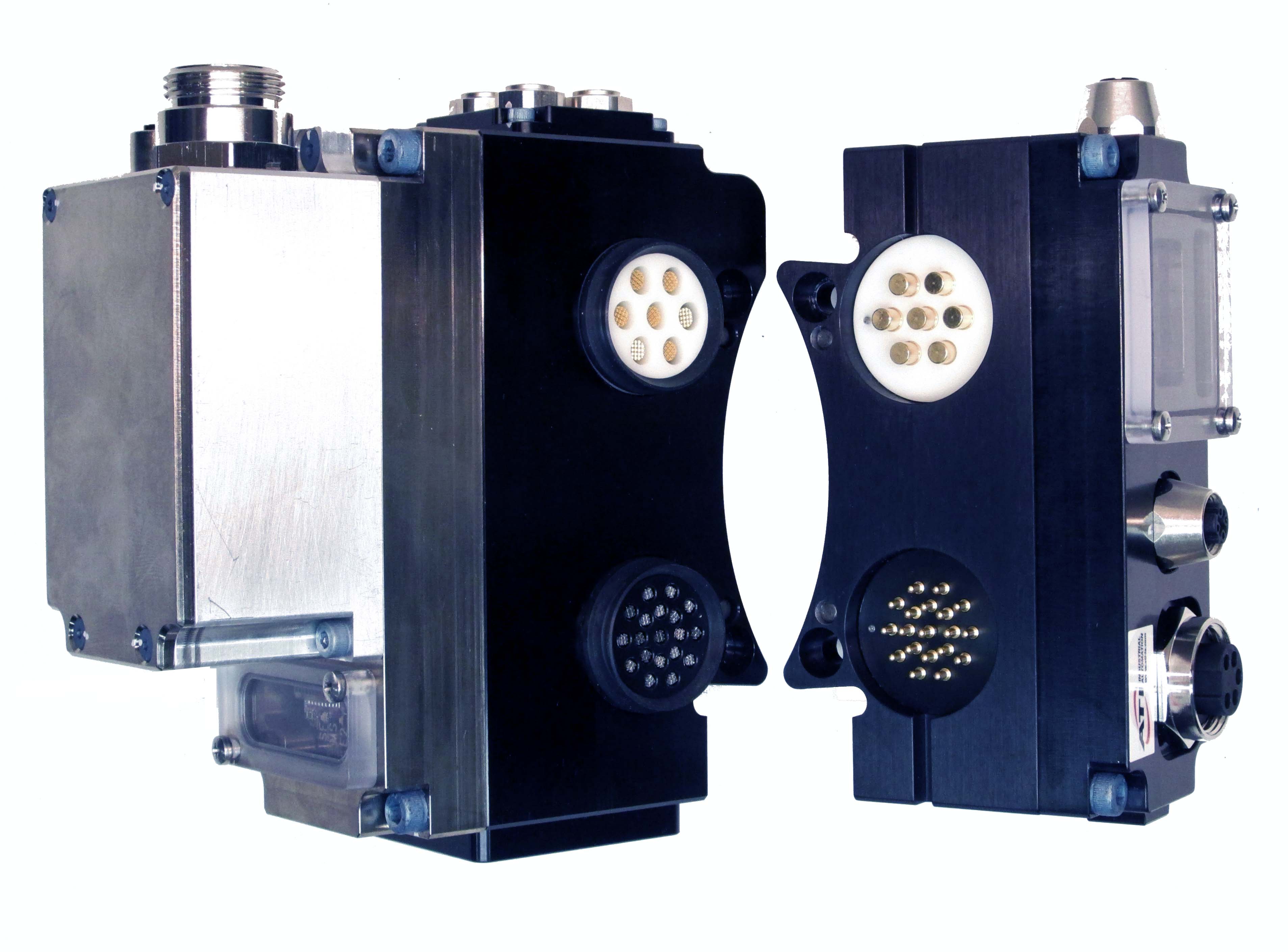

DL12 Modules (Master and Tool)
DL12 Modules (Master and Tool)

Part NumberSideNotesEDS File
9121-DL12-MMPROFINET Module with integrated Ethernet switch. D-Coded 4-Pin M12 connector for PROFINET communication, 5-pole Mini Connector for Switched and Unswitched Auxiliary power. Arc Prevention applied to Switched and Unswitched Auxiliary power. Lock, Unlock, and RTL sensing with LED cables on the Master. Tool-ID from the Tool module also supported. Safety circuit meets ISO13849 PLd - Master side9031-20-1071.zip
9121-DL12-TTPROFINET Module with D-Coded 4-Pin M12 Connector for PROFINET, 5-pole Mini Connector for Auxiliary power; supports Arc Prevention; 5-Pin M12 to support TSI on the Tool and 5-Independent Switch Tool-ID - Tool side

SpecificationsCompatible QCsConnectors and CablesDrawingsManuals3D CAD Models

Description: PROFINET Module with integrated Ethernet switch. D-Coded 4-Pin M12 connector for PROFINET communication, 5-pole Mini Connector for Switched and Unswitched Auxiliary power. Arc Prevention applied to Switched and Unswitched Auxiliary power. Lock, Unlock, and RTL sensing with LED cables on the Master. Tool-ID from the Tool module also supported. Safety circuit meets ISO13849 PLd.
Weight: Master 2.63 lbs (1.19 kg)
Tool 1.43 lbs (0.65 kg)
Materials:
  • Anodized aluminum housing
  • Precious-metal-plated spring and contact pins.
  • Nitrile seals.
# Pins: Power: Minifast Connector - 5
Integrated Tool Changer I/O - (4) 3
Integrated Connection to valve adapter Diagnostic Sensors - 3 and 4
Integrated Connection to Valve Adapter - 4
Elec. Rating: Power Pass Through - 10 Amp
Signal - 3 Amp/30VDC max.
Operational Temperature Range: 32 ーF - 120 ーF (0 ーC - 48.9 ーC)
