Description: |

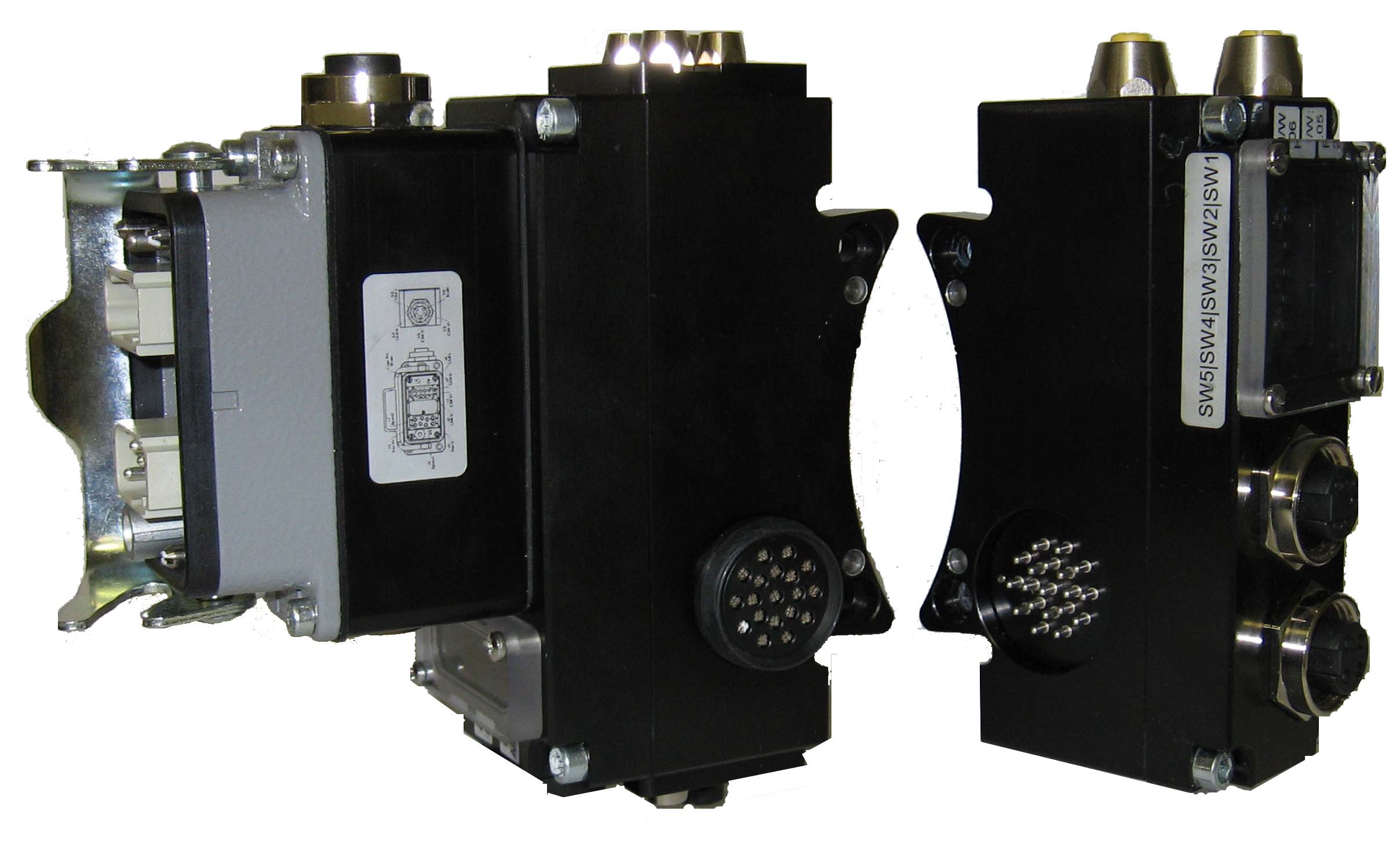

Dual Redundant TSI DeviceNet Module, Supporting Advanced Diagnostic Reporting, Harting Connector on Master-side and Standard Mini Connectors for DeviceNet and Auxiliary Power on Tool-side, (2) TSI on Tool, Tool ID Supported through Master-side |
|
Weight: |
Master 2.70 lbs (1.22 kg)
Tool 1.40 lbs (0.64 kg) |
|
Materials: |
- Anodized aluminum housing
- Precious metal-plated spring and contact pins
- Nitrile seals.
|
|
Elec. Rating: |
DeviceNet, Harting/5-pin Mini: Per ODVA DeviceNet SpecificationAuxiliary Power, Harting/4-pin: 5 Amp/50VDC |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Master
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-DJ4 DJ2.pdf |
DJ4 DJ2 Module Drawing
|
|
| 9620-20-C-DJx Error Handling.pdf |
DJx Error Handling Manual
|
| 9620-20-C-DJ4M DJ2T.pdf |
DJ4-M,DJ2-T Control & Signal Module Manual
|
|
| 9121-DJ4-M |
1SEM Dual Redundant TSI DeviceNet master module w/(2) TSI on tool, Harting/Mini conn, Tool-ID
|
|
