Description: |

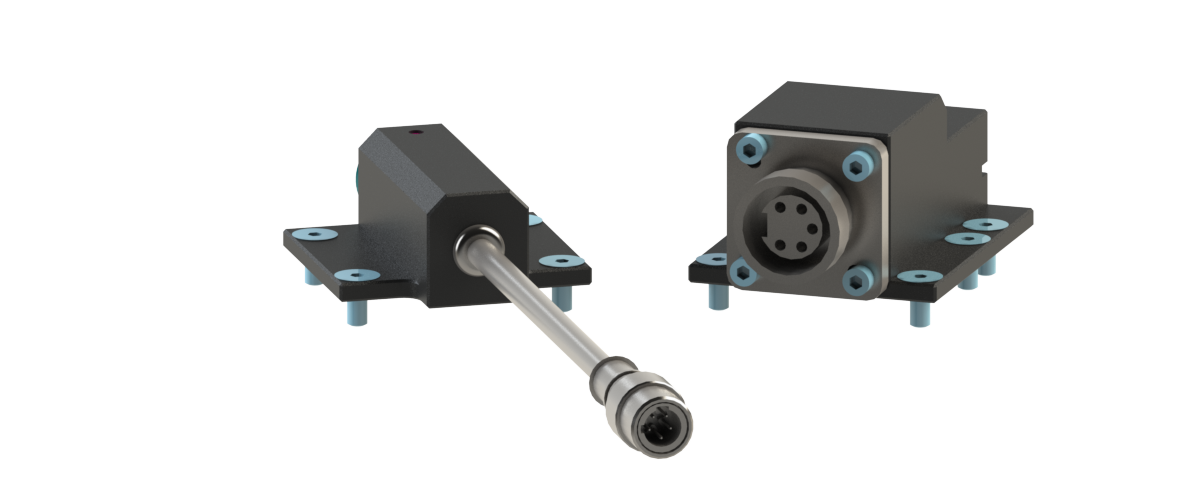

5-pin Electrical Module |
|
Materials: |
- Aluminum housing
- Precious-metal-plated spring pins
- Precious-metal-plated contact pins
- Nitrile seal
|
|
Elec. Rating: |
3 Amp/<50VDC |
|
Operational Temperature Range: |
-20 ｰF - 150 ｰF (-28.9 ｰC - 65.6 ｰC) |
|
|
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
|
|
There are no connector mates associated with this panel mount connector.
|
|
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-C5.pdf |
C5 Module Drawing
|
| 9630-20-C5M C3T.pdf |
C5 Master and C3 Tool Module Drawing
|
|
|
None currently available. See your Account Representative for more information.
|
No 3D models for this product are currently available. See your Account Representative for more information.
|
