9115 Series Compensator Specifications

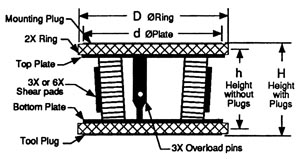

Compensator Size	Size (inches)				Compensator Weight (lbs.)		Allowable Misalignment Standard (Modified)			Drawings
Compensator Size	D	d	H	h	Only	with Ring/Plug	Lateral	Cocking	Torsion	Drawings
000	NA	2.2	NA	1.6	0.2	NA	0.065"	1.0°	4.5°	9230-15-1036 (Sheet 1 of 2) 9230-15-1036 (Sheet 2 of 2)
100	3.15	2.8	2.2	1.8	0.4	0.5	0.085"	1.1°	5.0°	9230-15-1032 (Sheet 1 of 2) 9230-15-1032 (Sheet 2 of 2)
200	3.90	3.6	2.2	1.8	0.6	0.8	0.085"	1.1°	4.0°	9230-15-1035 (Sheet 1 of 2) 9230-15-1035 (Sheet 2 of 2)
400	NA	6.3	NA	2.0	3.0	NA	0.085"	0.35°	2.5°	9230-15-1013

Note: 100 and 200 size Compensators use three styles of shear pads: HCL-11, HCL-12 and HCL-13; 000 size Compensators use three HCL-01 shear pads; 400 size Compensators use six or twelve HCL-13 shear pads

Model Number	C of C	Load Capacity, lb, in-lb				Stiffness, lb/in, in-lb/rad
Model Number	C of C	Tension	Lateral	Compression	Cocking	Lateral	Cocking
9115-001-A	0.9	5	1.5	80	30	33	1600
9115-113-A	1.9	18	6	280	60	150	4000
9115-112-A	2.1	10	2	110	40	41	1100
9115-112-B	2.7	10	2	120	45	41	1600
9115-213-C	3.1	44	12	610	155	300	15400
9115-212-A	3.2	14	2	140	60	41	2000
9115-213-B	3.2	22	6	310	80	150	8400
9115-212-C	3.4	28	4	300	125	82	4400
9115-212-B	3.6	14	2	160	65	41	2400
9115-111-B	4.8	10	2	290	45	65	3300
9115-211-A	5.5	12	2	300	60	65	4200
9115-211-C	5.8	24	4	610	125	130	9100
9115-211-B	6.1	12	2	310	65	65	4900
9115-413-C	9.0	44	6	610	350	400	80000
9115-413-D	9.0	88	12	1220	700	800	160000
