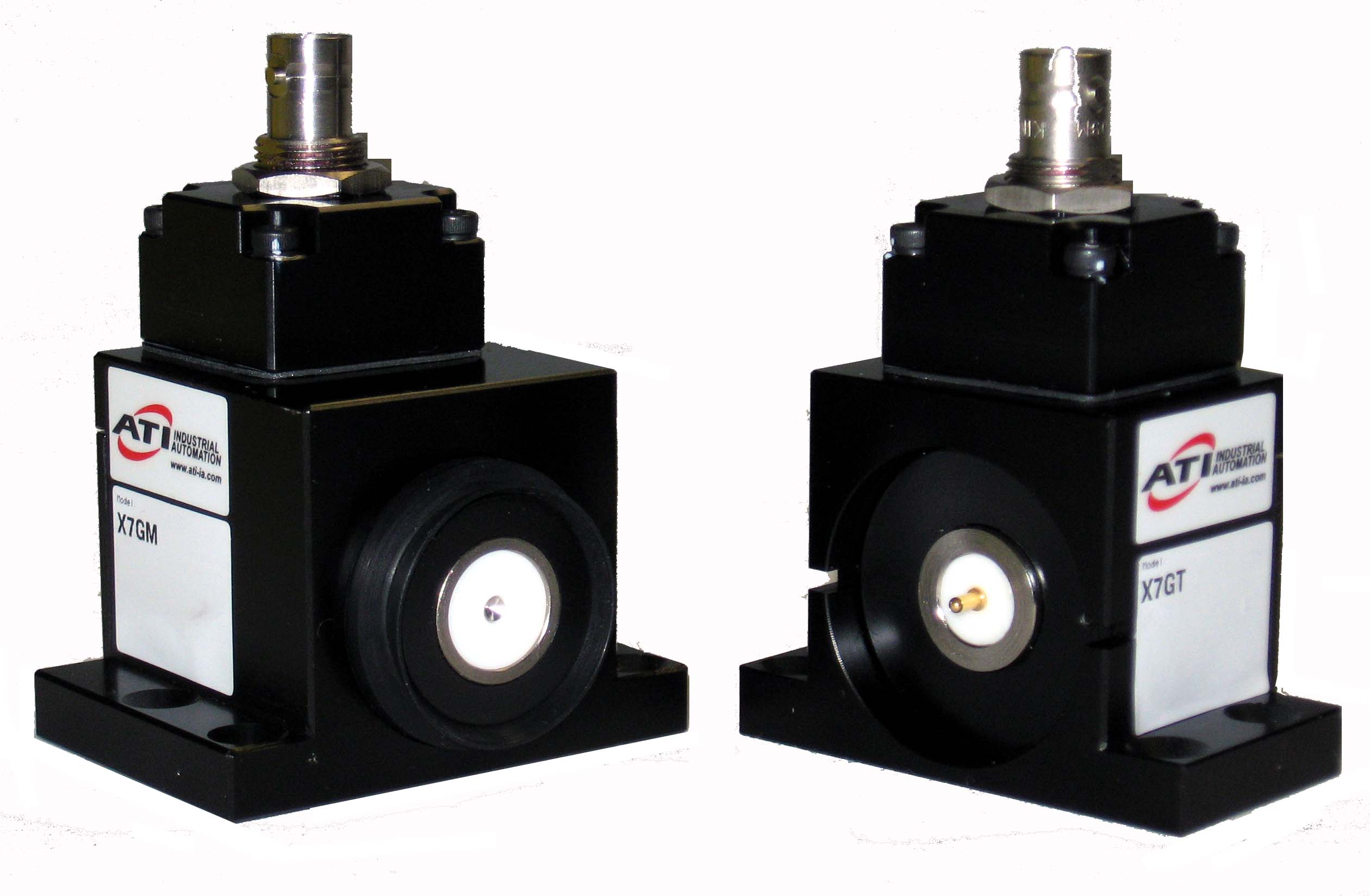

9120-X7G-M | M | High Voltage Module for Ultrasonic Weld Applications, Isolated SHV Connector - Master side |
9120-X7G-T | T | High Voltage Module for Ultrasonic Weld Applications, Isolated SHV Connector - Tool side |
Description: |
High Voltage Module for Ultrasonic Weld Applications, Isolated SHV Connector |
Weight: |
9120-X7G-M 0.39lbs (0.175kg) 9120-X7G-T 0.30lbs (0.135kg)
|
Materials: |
- Precious-metal-plated spring and contact pins
- Aluminum and Delrin housings
- Teflon® dielectric
- Nitrile seals.
|
Elec. Rating: |
3 Amps/2000VAC |
Operational Temperature Range: |
-20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC) |
|
Custom Application QC Models |
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
There are no Cables associated with this module.
|
|
9630-20-X7G.pdf |
X7G Module Drawing
|
|
None currently available. See your Account Representative for more information.
|
9120-X7G-T |
High Voltage Tool Module for Ultrasonic Weld Applications,SHV connector,isolated from robot ground
|
9120-X7G-M |
High Voltage Master Module for Ultrasonic Weld Applications,SHV connector,isolated from robot ground
|
|
|
