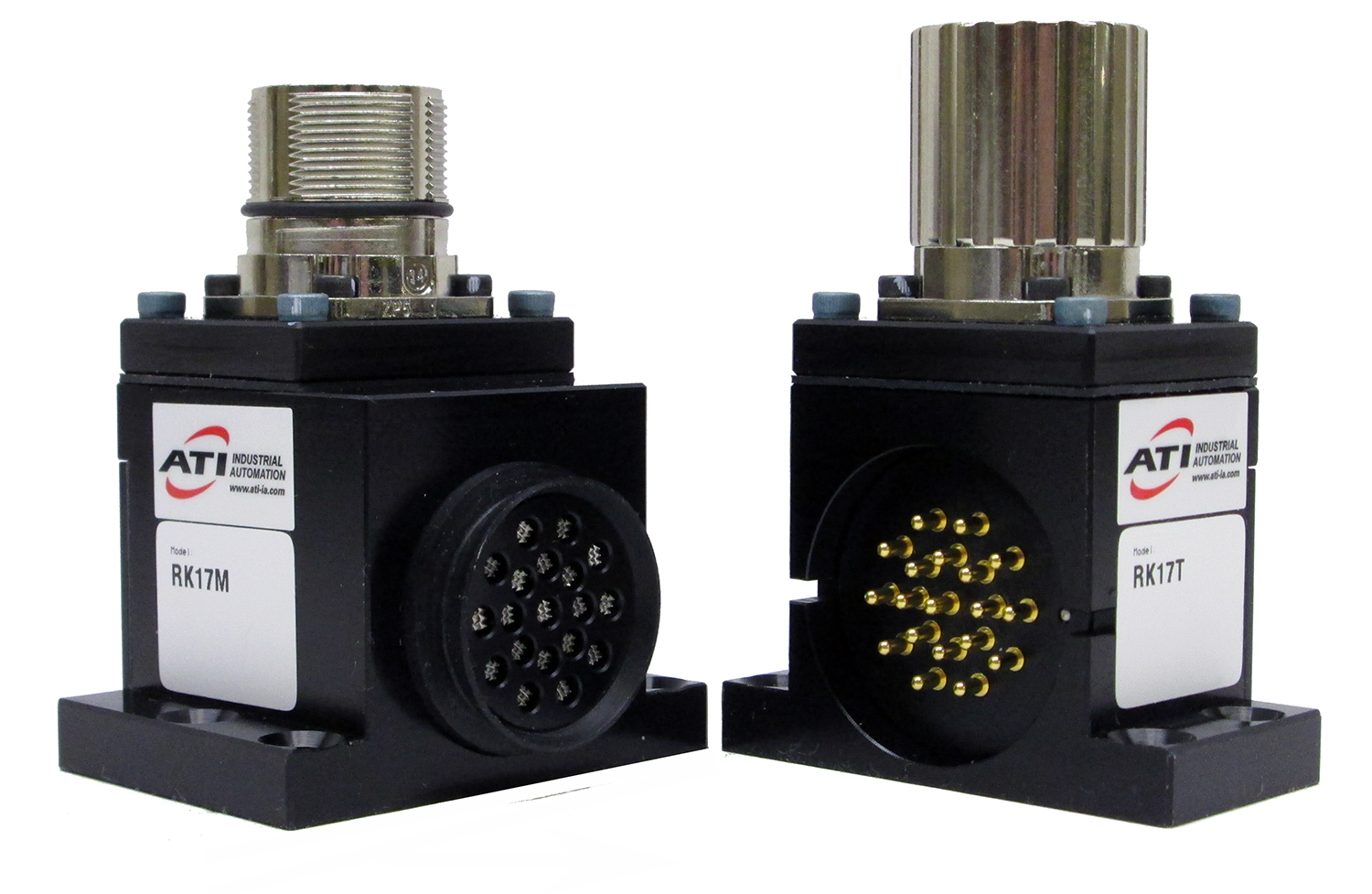

9120-RK17-M | M | Electrical Module with 17-pin pass-through, 3 Amp/125VAC, 17-Pin M23 connector - Master side |
9120-RK17-T | T | Electrical Module with 17-pin pass-through, 3 Amp/125VAC, 17-Pin M23 connector - Tool side |
Description: |
Electrical Module with 17-pin pass-through, 3 Amp/125VAC, 17-Pin M23 connector |
Weight: |
Master 0.53 lbs (0.24 kg) Tool 0.43 lbs (0.20 kg) |
Materials: |
- Aluminum housing
- Rhodium-plated contact pins
- Nitrile seal.
|
Elec. Rating: |
3 Amp/125VAC |
Operational Temperature Range: |
-20 ーF - 150 ーF (-28.9 ーC - 65.6 ーC) |
|
Custom Application QC Models |
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
|
|
Master
Side Cable Mount Connector Mates |
|
There are no connector mates associated with this panel mount connector.
|
|
|
|
|
|
Tool
Side Cable Mount Connector Mates |
|
There are no connector mates associated with this panel mount connector.
|
|
|
Cables
There are no Cables associated with this module.
|
|
9630-20-RK17.pdf |
RK17 Module Drawing
|
|
None currently available. See your Account Representative for more information.
|
9120-RK17-M |
Electrical Module with 17-pin pass-through, 3 Amp/250VAC, 17-Pin M23 connector - Master Side
|
9120-RK17-T |
Electrical Module with 17-pin pass-through, 3 Amp/250VAC, 17-Pin M23 connector - Tool Side
|
|
|
