Electrical Modules: UDK10


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Electrical Modules > UDK10





Product Advantages
  • 10 pins.
  • 7 pins @ 5 Amp, 250VAC and 3 pins @ 8 Amp, 250VAC.
  • RDE RC Series connectors.
  • Passes signals for Roland UDK10 double-sheet detector.

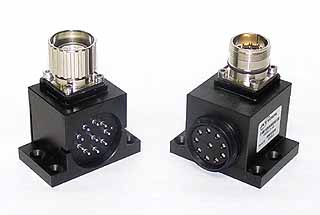

UDK10 Modules (Master and Tool)
UDK10 Modules (Master and Tool)

Part NumberSideNotes
9120-UDK10-MMSpecial R10 electrical module supporting Roland UDK10 sheet detector - Master side
9120-UDK10-TTSpecial R10 electrical module supporting Roland UDK10 sheet detector - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Special 10-pin electrical module supporting Roland UDK10 sheet detector
Materials:
  • Precious-metal-plated spring housing
  • Aluminum housing
  • Rhodium-plated heads on spring pin.
  • Rhodium-plated contact pins
  • Nitrile seal.
# Pins: 10
Elec. Rating: 7 pins @ 5 Amp/250VAC and 3 pins @ 8 Amp/250VAC
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
