Electrical Modules: CL5


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Electrical Modules > CL5





Product Advantages
  • 4 Amp/125V capacity.
  • 5-pin Binder connector.
  • No Touch contacts on Master.
  • Moisture and dust sealed when mated.

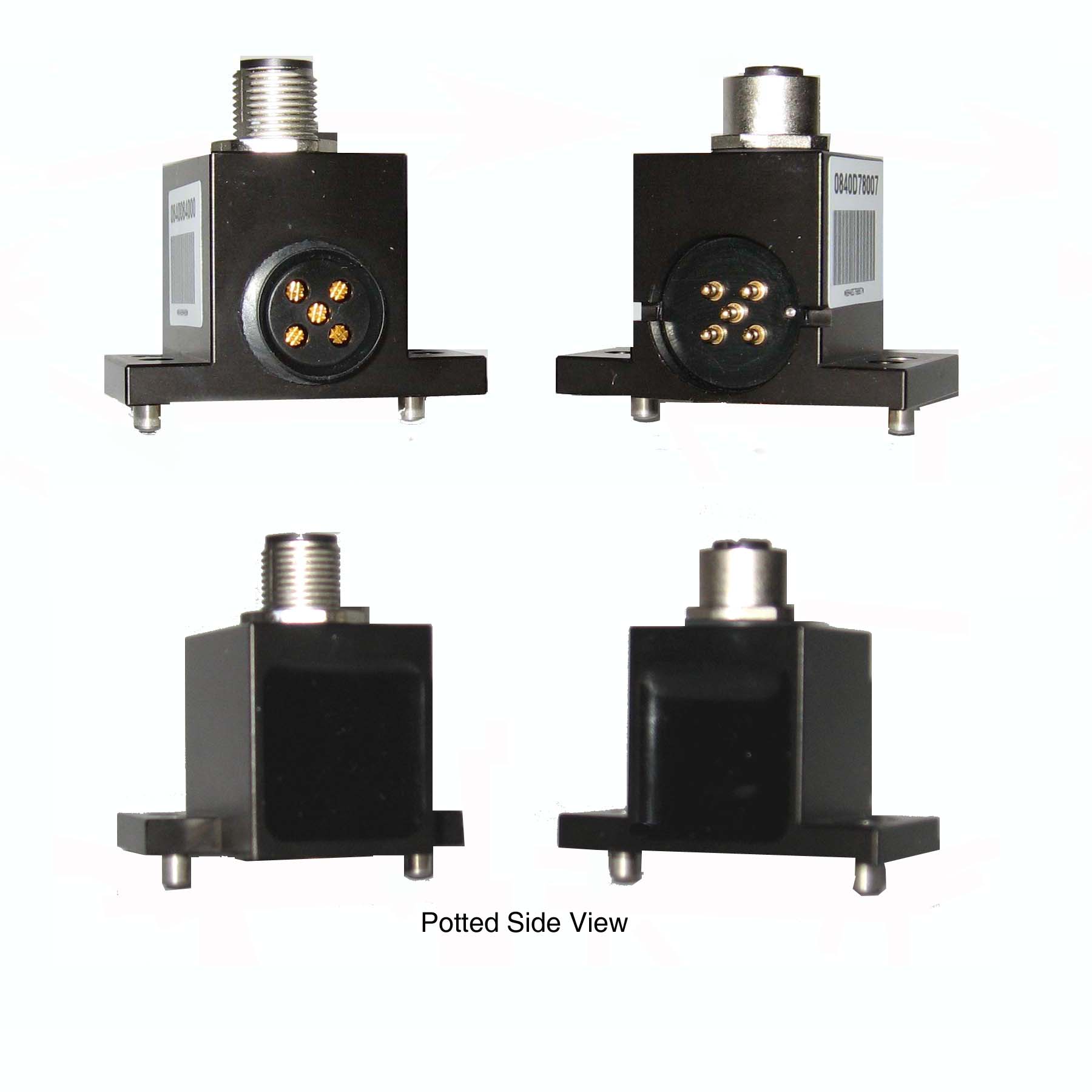

CL5 Modules (Master and Tool)
CL5 Modules (Master and Tool)

Part NumberSideNotes
9120-CL5-MM4 Amp/125V Signal Module Assembly, Potted with 5-pin Binder Connector, Series 713, M12x1, Twisted Pair Wires - Master side
9120-CL5-TT4 Amp/125V Signal Module Assembly, Potted with 5-pin Binder Connector, Series 713, M12x1, Twisted Pair Wires - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: 4 Amp/125V Signal Module Assembly, Potted with 5-pin Binder Connector, Series 713, M12x1, Twisted Pair Wires
Materials:
  • Aluminum housing
  • Precious-metal-plated spring pins
  • Precious-metal-plated contact pins
  • Nitrile seal
# Pins: 5
Elec. Rating: 4 Amp/125V
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
