| 9121-AV9-M | M | Vacuum Pass-through Module with (1) 2" NPT axial port spaced 163mm from QC - Master side |
| 9121-AV9-T | T | Vacuum Pass-through Module with (1) 2" NPT axial port spaced 163mm from QC - Tool side |
|
|
|

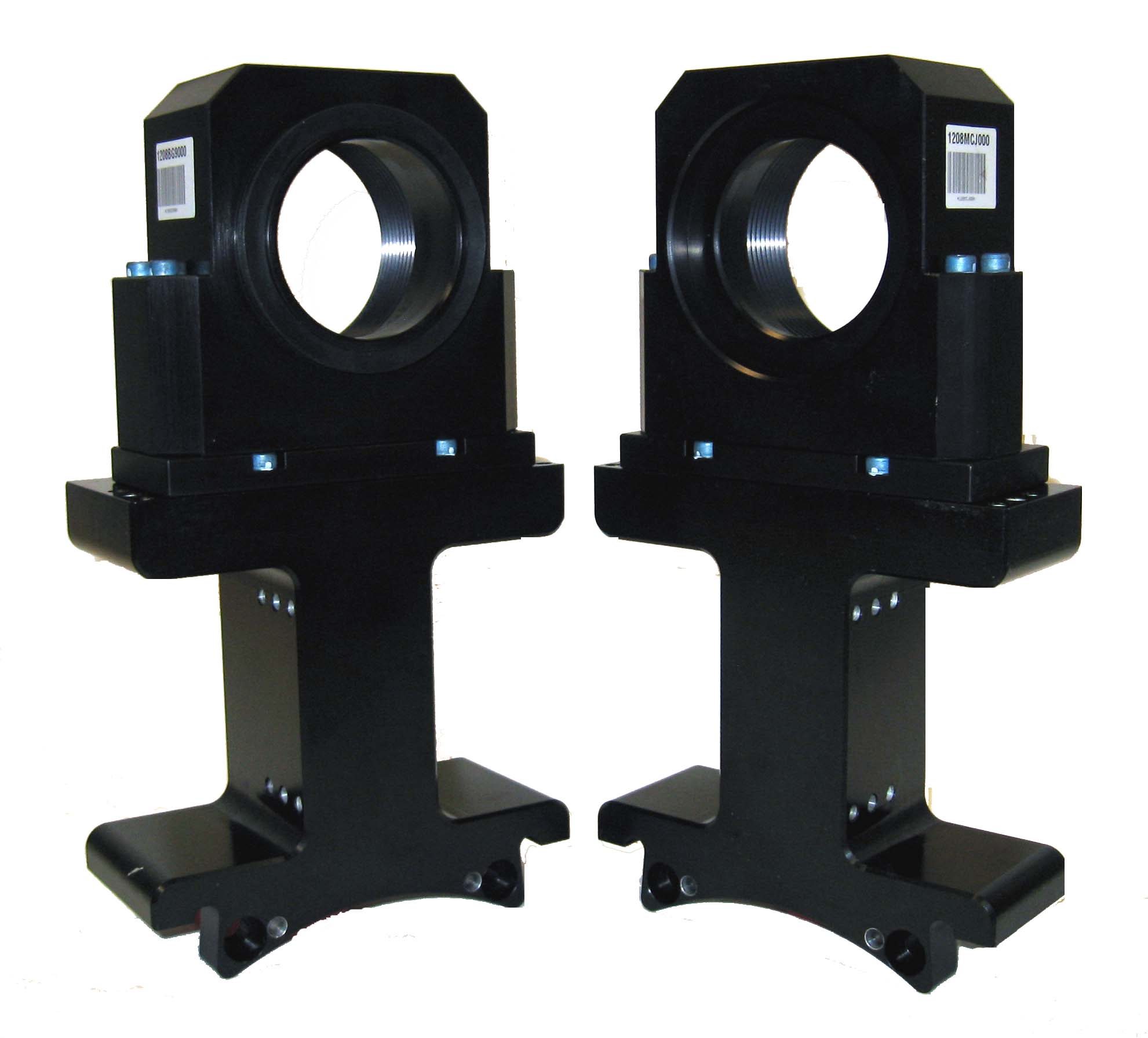

Vacuum Pass-through Module with (1) 2" NPT axial port spaced 163mm from QC |
|
|
Master 3.30 lbs (1.50 kg)
Tool 2.90 lbs (1.32 kg) |
|
|
- Anodized aluminum housing.
- Nitrile rubber seals.
|
|
|
-20 °F - 150 °F (-28.9 °C - 65.6 °C) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-AV9.pdf |
AV9 Module Drawing
|
|
| 9620-20-D-AV9.pdf |
AV9 Vacuum Module Manual
|
|
| 9121-AV9-T |
Tool Side 2" NPT Axial Vacuum Module, spaced 163 mm from QC
|
| 9121-AV9-M |
Master side 2" NPT Axial Vacuum Module, spaced 163 mm from QC
|
|
|
