| 9121-AS6-M | M | Pneumatic Module with (10) G 1/8 (BSPP) Pass-Through Ports - Master side |
| 9121-AS6-T | T | Pneumatic Module with (10) G 1/8 (BSPP) Pass-Through Ports - Tool side |
|
|
|

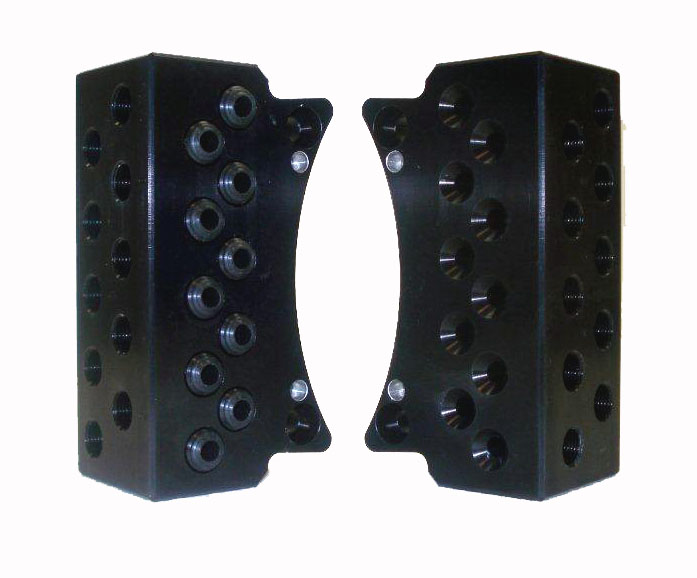

Pneumatic Module with (10) G 1/8 (BSPP) Pass-Through Ports |
|
|
Master 0.76 lbs (0.34 kg)
Tool 0.77 lbs (0.35 kg) |
|
|
- Aluminum housing
- Nitrile seals.
|
|
|
-20 °F - 150 °F (-28.9 °C - 65.6 °C) |
|
|
|
QC-113
| |
|
|
Flat C
Will mount to Flat B and D, but may interfere with modules on adjacent flats. Consult Applications Engineering. |
| No |
|
QC-210
| |
| No |
|
QC-213
| |
| No |
|
QC-310
| |
| No |
|
QC-313
| |
| No |
|
QC-510
| |
| No |
|
QC-1210
| |
| No |
|
QC-1310
| |
| No |
|
QC-1510
| |
| No |
|
Custom Application QC Models |
|
|
*May be compatible with other QC models. Please consult an ATI Account Manager for more information.
|
Cables
|
There are no Cables associated with this module.
|
|
| 9630-20-AS6.pdf |
AS6 Module Drawing
|
|
| 9620-20-D-AS6.pdf |
AS6 Air Module Manual
|
|
| 9121-AS6-T |
Pneumatic Tool Module with (10) G1/8" (BSPP) Pass-Thru Ports
|
| 9121-AS6-M |
Pneumatic Master Module with (10) G1/8" (BSPP) Pass-Thru Ports
|
|
|
