Tool Changers: QC-77


Skip Navigation LinksHome > Products > Robotic Tool Changers > Tool Changer Models > QC-77





Product Advantages
  • Stainless Steel design with high strength.
  • Design utilizes QC-76 locking mechanism.
  • Patented Fail-Safe locking mechanism design results in low force acting on the piston.
  • Payload-only application due to specific customer requirements, no utilities actually pass through the Master to the Tool-side. Only supports a payload on the end-effector.
  • No-Touch Locking technology allows up to 0.08 inch (2.0 mm) plate separation when locking.
  • Master and Tool-sides direct-mount to 100mm BC.
  • Stainless Steel fasteners used.
  • Internal proximity sensors are designed into the body of the Master plate to verify the lock/unlock position of the piston and cam. Sensors provide the lock and unlock (L/U) signals through the sensor cables provided.
  • 440C Stainless Steel locking mechanism for increased corrosion resistance.

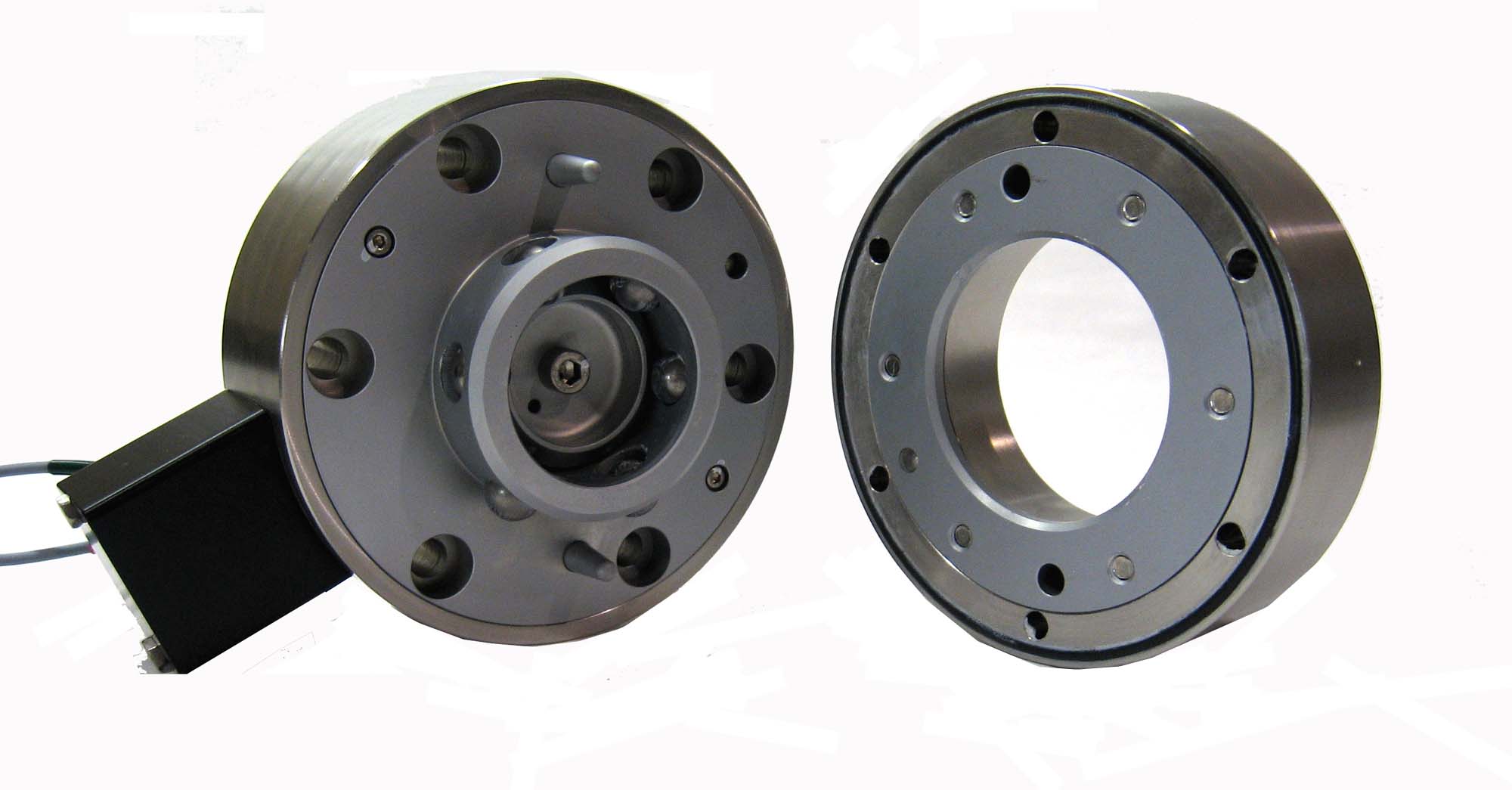

QC-77 Master and Tool
QC-77 Master and Tool

SpecificationsDrawingsManualsCompatible Modules3D CAD Models
Units:
Suggested Payload Limit: 220 lb
Locking Force @ 80 psi (5.5 bar): 2600 lb
Static Moment Capacity (X & Y): 4800 lbf-in
Static Moment Capacity (Z): 4800 lbf-in
Positional Repeatability - (X, Y, & Z): 0.0006 in
Weight - when coupled: 13.5 lb
Master Weight: 9.2 lb
Tool Weight: 4.3 lb
Maximum distance between Master & Tool plate before locking at 87 psi (6 bar): 0.08 in
Pneumatic Pass-through Ports (qty) Size: N/A
