Suggested Payload Limit: |
460 lb |
|
Locking Force @ 80 psi (5.5 bar): |
7000 lb |
|
Static Moment Capacity (X & Y): |
12000 lbf-in |
|
Static Moment Capacity (Z): |
6500 lbf-in |
|
Positional Repeatability - (X, Y, & Z): |
0.0006 in |
|
Weight - when coupled: |
42.8 lb |
|
Maximum distance between Master & Tool plate before locking at 87 psi (6 bar): |
0.0787 in |
|
| 9630-20-161.pdf |
QC-161 Tool Changer Drawing
|
|
| 9610-20-4446.pdf |
QC-161 Tool Changer Manual
|
|
|
|
|
|
|
|
|
Other Modules
| JPC1 | Other Modules | | Module Flat Coverplate for J16 Pattern, Master and Tool Side, Kit | Flats A, B | No |
|
|
|
|
|
|
| QC-161 Master |

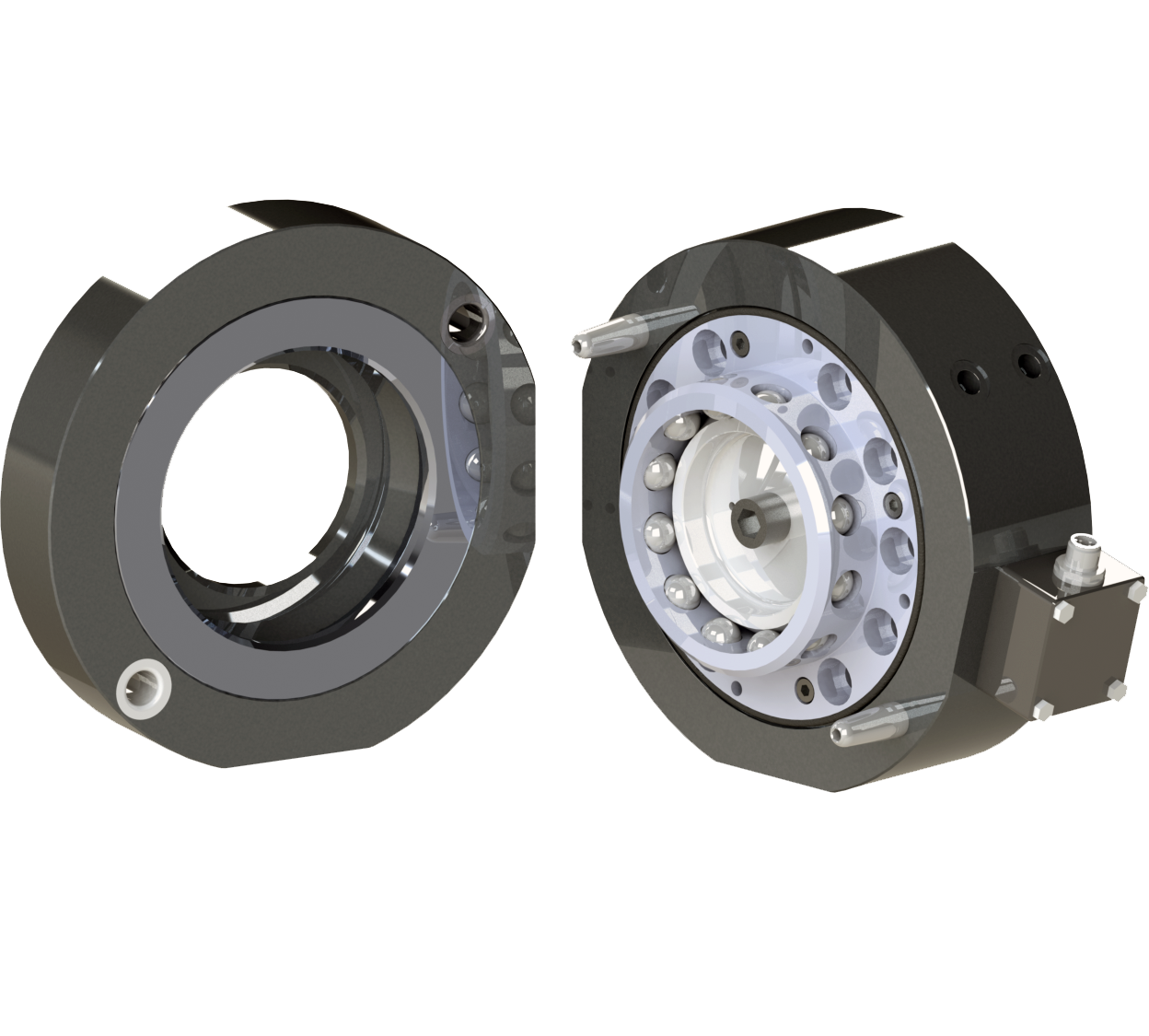

QC-161 Master
|
| QC-161 Tool |
QC-161 Tool
|
|
