Insta工具模块: DD4

Attention: An upgraded version of this item is available.

当前产品	优势	可互换的

DB10Z1-M,DB10-T,DB13-T	Utilizes DeviceNet Quick-connect. Mounts to QC-210 and larger changers. Verify pinout and bitmap.	No

Product Advantages

The InstaTool™ DeviceNet modules allow for communication and control of the Tool Changer with a Master DeviceNet node (ODVA compliance certified).
The Tool side Insta-Bus supports fast cycle time applications with downstream I/O communicated through the Master node to the DeviceNet network.
A Tool Changer integrated solenoid valve is supported and controlled through the InstaTool Master DeviceNet module.
A flexible boot surrounds the pin block and seals the connection from moisture while the Tool Changer is coupled.
Patented Tool Stand Interlock (TSI) technology is provided through a connector on the Tool module. Integration of a mechanical limit switch will allow the integrated solenoid valve to uncouple the Tool Changer ONLY when the Tool is in the Stand.
Five (5) independent Tool-ID (0-9) switches provided.
Ready-to-Lock (R1 and R2), Lock (L), and Unlock (U) sensor inputs provided.
Custom Harting 10B interface provided on Master module supporting ABB robot dress package.

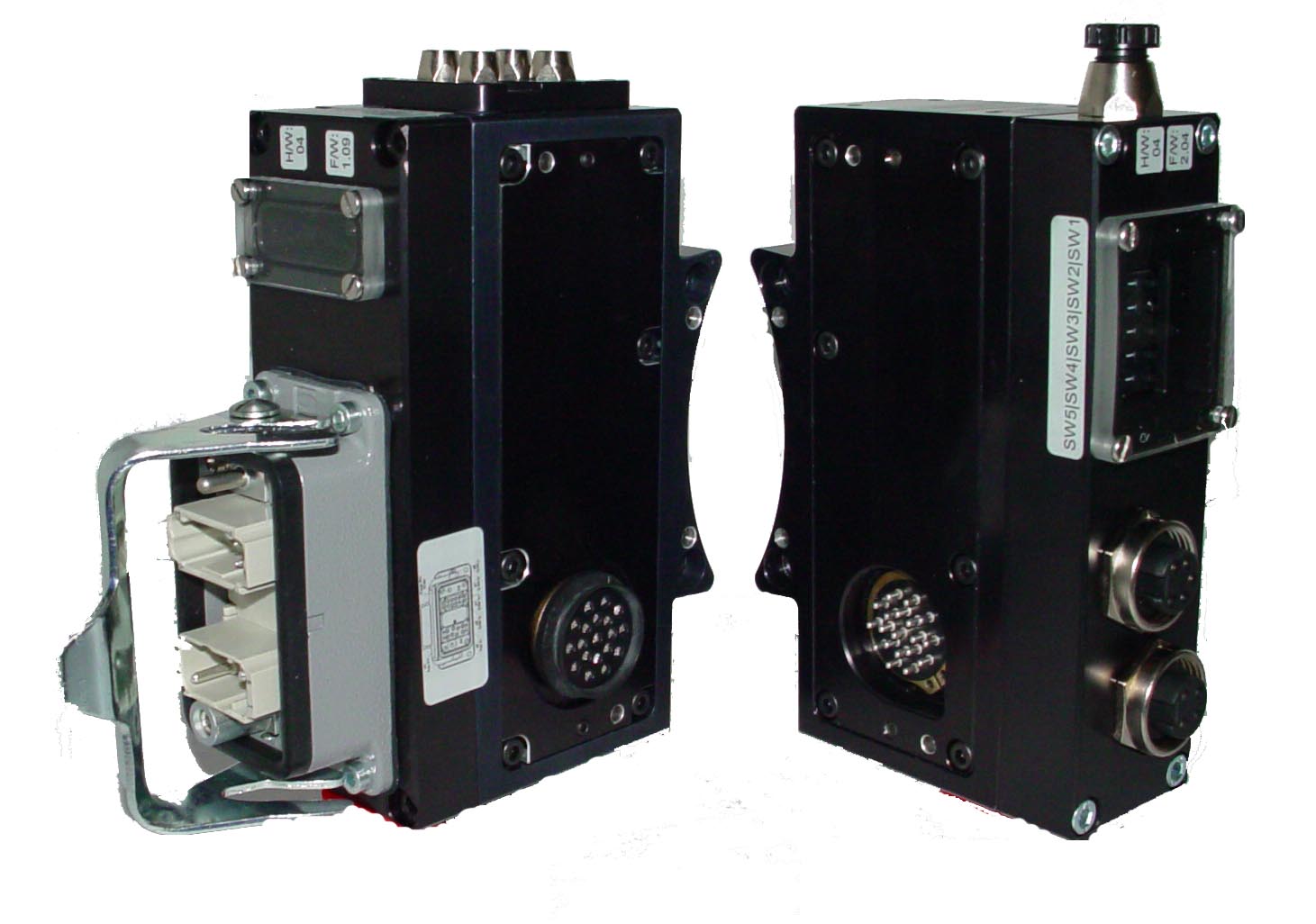

DD4 Master and DD2 Tool Modules

Part Number	Side	Notes
9121-DD4-M	M	InstaTool™ Module, TSI on Tool, Harting Connector, CEM - Master side
9121-DD2-T	T	InstaTool™ Module, Mechanical Switch TSI, 5-Independent Switch Tool ID, CEM - Tool side

规格

兼容的快换型号

接头和电缆

图纸

手册

3D CAD Models

描述：	InstaTool™ DeviceNet Module, Harting Connector, TSI on Tool, CEM

Cv规格：

N/A

重量：	Master 3.25 lbs (1.47 kg) Tool 2.45 lbs (1.11 kg)

材质：	Aluminum housings Rhodium-plated contacts Nitrile seals Plastic pin block Clear polycarbonate window.

针脚数量：

5 - DeviceNet, 4 Auxiliary Power

电气规格：

ODVA Compliant

工作温度范围：

-20 F - 150 F (-28.9 C - 65.6 C)
