Min. Force to Couple*: |
500 lbf |
|
Operational Temperature Range: |
-20 °F - 150 °F |
*Minimum force required to couple at 80 psi (lbs)
|
| 9630-20-GL2P-E.pdf |
GL2P-E Utility Coupler Drawing
|
| 9630-20-GL2P-N.pdf |
GL2P-N Module Drawing
|
|
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
| 9123-GL2PCM-0-0-0-0-N |

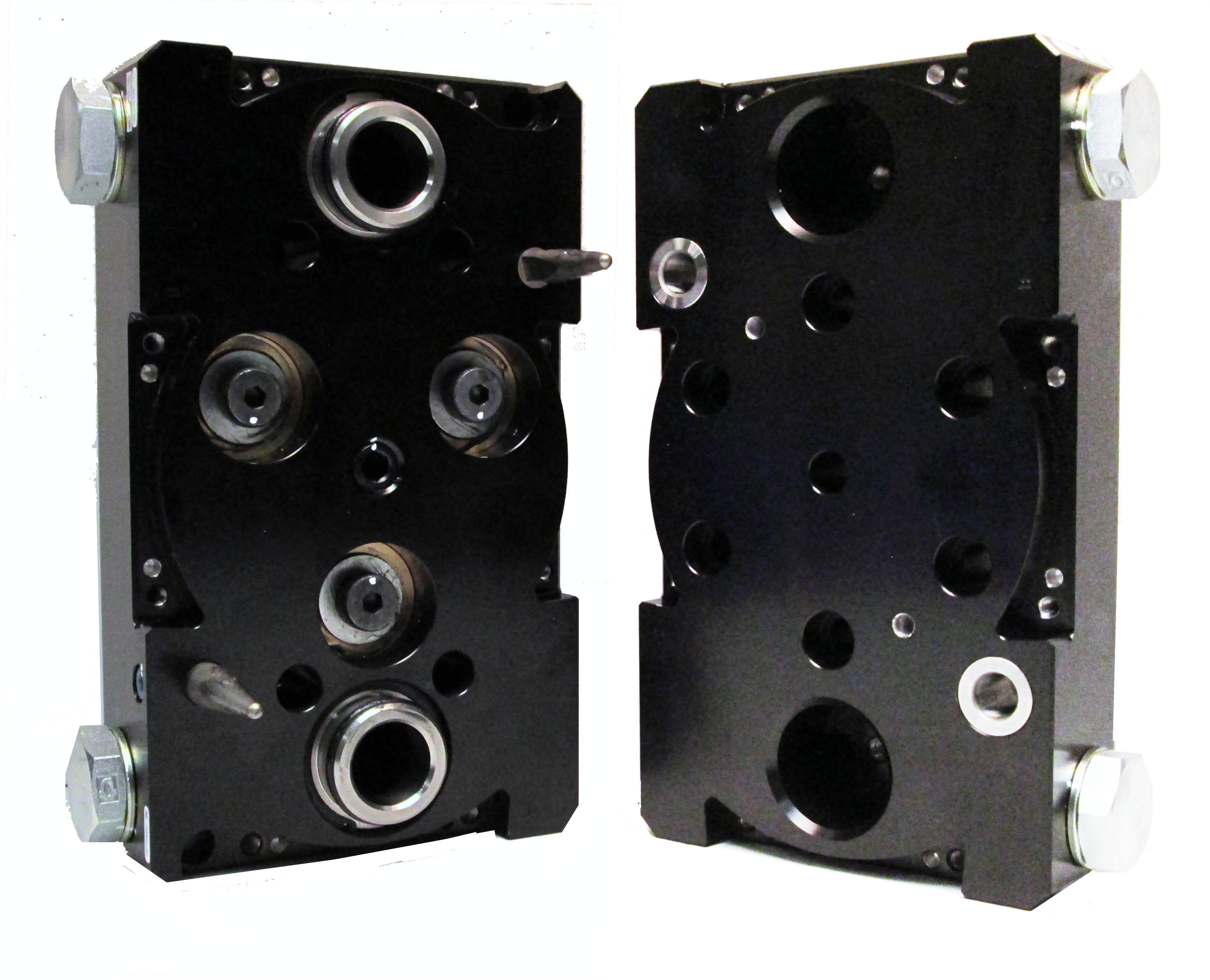

GL2 Compliant Utility Coupler Master with (2) 3/4 NPT Pass-Through Ports
|
| 9123-GL2PT-0-0-0-0-N |
GL2 Utility Coupler Tool with (2) 3/4 NPT Pass-Through Ports
|
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SR-E |
|
Axial Clamping Force*: |
620 lbf |
|
Sensing: |
extend and retract |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154. |
|
None currently available. See your Account Representative for more information.
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SG-E |
|
Axial Clamping Force*: |
620 lbf |
|
Sensing: |
extend and retract |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154 |
|
None currently available. See your Account Representative for more information.
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SR-N |
|
Axial Clamping Force*: |
620 lbf |
|
Sensing: |
extend and retract |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154. |
|
None currently available. See your Account Representative for more information.
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-SG-N |
|
Axial Clamping Force*: |
620 lbf |
|
Sensing: |
extend and retract |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154 |
|
None currently available. See your Account Representative for more information.
|
|
|
Drive Cylinder Model: |
GL-GC-B80S100-S0-N |
|
Axial Clamping Force*: |
620 lbf |
|
Sensing: |
extend and retract |
|
Electric or Pneumatic: |
Pneumatic |
|
Operational Temperature Range: |
-20 °F - 150 °F |
|
Notes: |
Cylinder Position Sensor, 3 Wire PNP, M8 Quick Connect: 8590-9909999-154. |
|
None currently available. See your Account Representative for more information.
| 9620-20-B-GLx.pdf |
GLx Utility Coupler Manual (incl GL1, GL2, GL2A, GL3, GL5, GL8)
|
|
|
*Axial clamp force at 80 psi for air, at rated voltage for electric
|
|
Contact Application Support for assistance in choosing compatible modules.
|
|
