Vacuum/Air Modules: V200A


Skip Navigation LinksHome > Products > Robotic Tool Changers > Modules and Accessories > Modules > Pneumatic and Fluid Modules > V200A





Product Advantages
  • Provides pass-through vacuum service.
  • (1) 2" NPT axial pass-through port.
  • M19 Pattern.

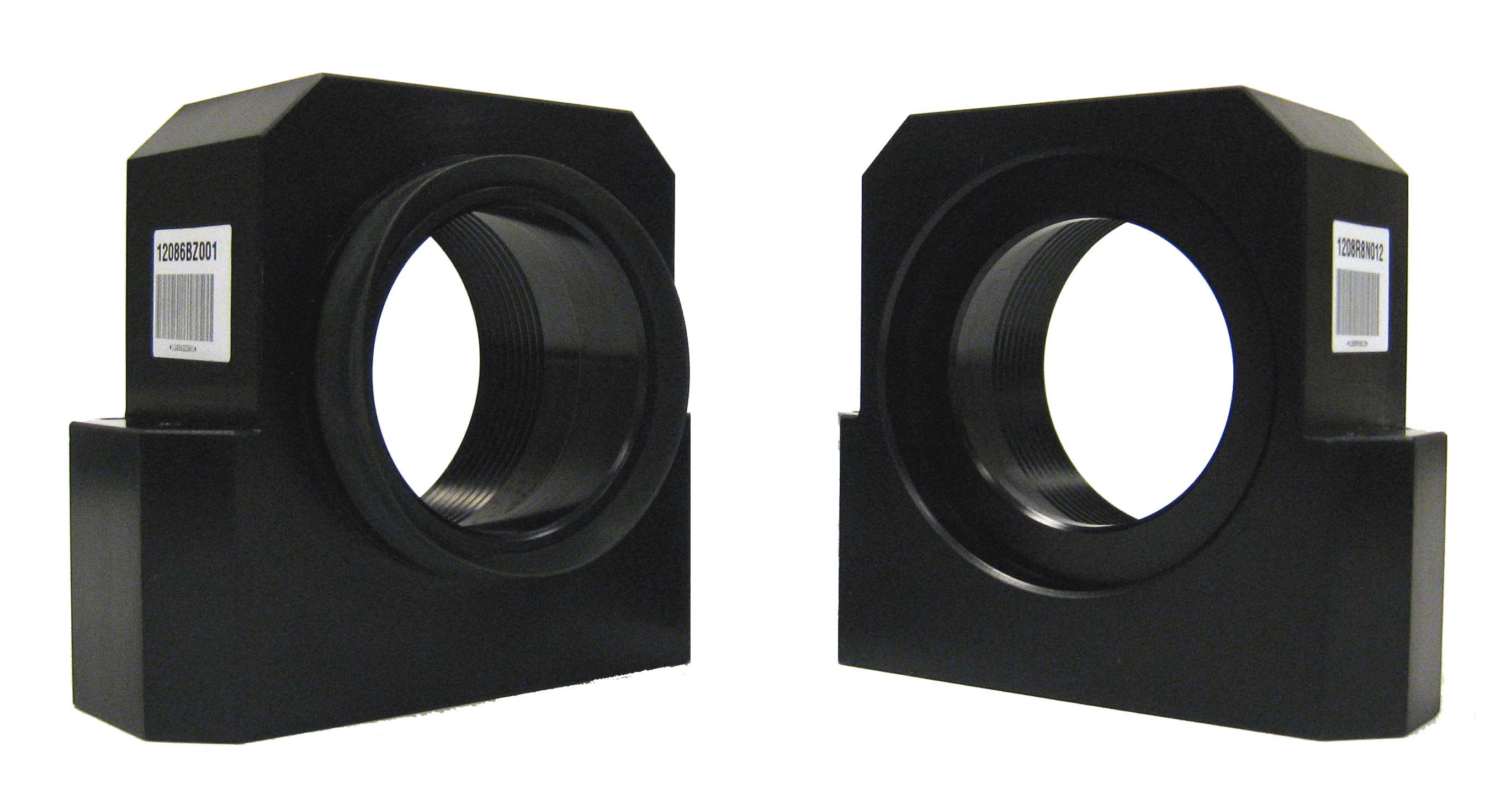

V200A Modules (Master and Tool)
V200A Modules (Master and Tool)

Part NumberSideNotes
9120-V200A-MMVacuum Pass-through Module with (1) 2" NPT port, M19 pattern - Master side
9120-V200A-TTVacuum Pass-through Module with (1) 2" NPT port, M19 pattern - Tool side

SpecificationsCompatible QCsDrawingsManuals3D CAD Models

Description: Vacuum Pass-through Module with (1) 2" NPT port, M19 pattern
Cv Rating: N/A
Weight: Master 1.50 lbs (0.68 kg)
Tool 1.40 lbs (0.63 kg)
Materials:
  • Anodized aluminum housings
  • Nitrile rubber seals.
Operational Temperature Range: -20 °F - 150 °F (-28.9 °C - 65.6 °C)
