Air Modules: FG2-M,FG2A-T
Home
>
Products
>
Robotic Tool Changers
>
Modules and Accessories
>
Modules
>
Pneumatic and Fluid Modules
>
FG2-M,FG2A-T
Product Description
Tool side only.
G 3/8 (BSPP) threaded ports.
(2) pass-through air ports for Tool plate.
Compatible with F02 modules.
Stainless steel housing.

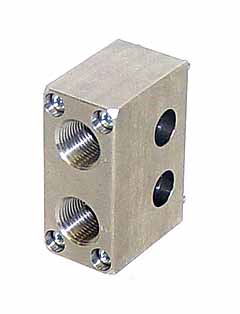

FN2A Tool shown (NPT ports)
Part Number
Side
Notes
9120-FG2-M
M
(2) G 3/8 (BSPP) self-sealing ports fluid/air module, stainless steel - Master side
9120-FG2A-T
T
(2) G 3/8 (BSPP) pass-through ports pneumatic module, stainless steel - Tool side
Specifications
Compatible QCs
Drawings
Manuals
3D CAD Models
Options
Description:
(2) G 3/8 (BSPP) pass-through ports pneumatic module, stainless steel (Tool side only)
Cv Rating:
1.4
Weight:
1.6 lbs (0.73 kg)
Materials:
Stainless steel housings.
Operational Temperature Range:
-20 °F - 150 °F (-28.9 °C - 65.6 °C)
