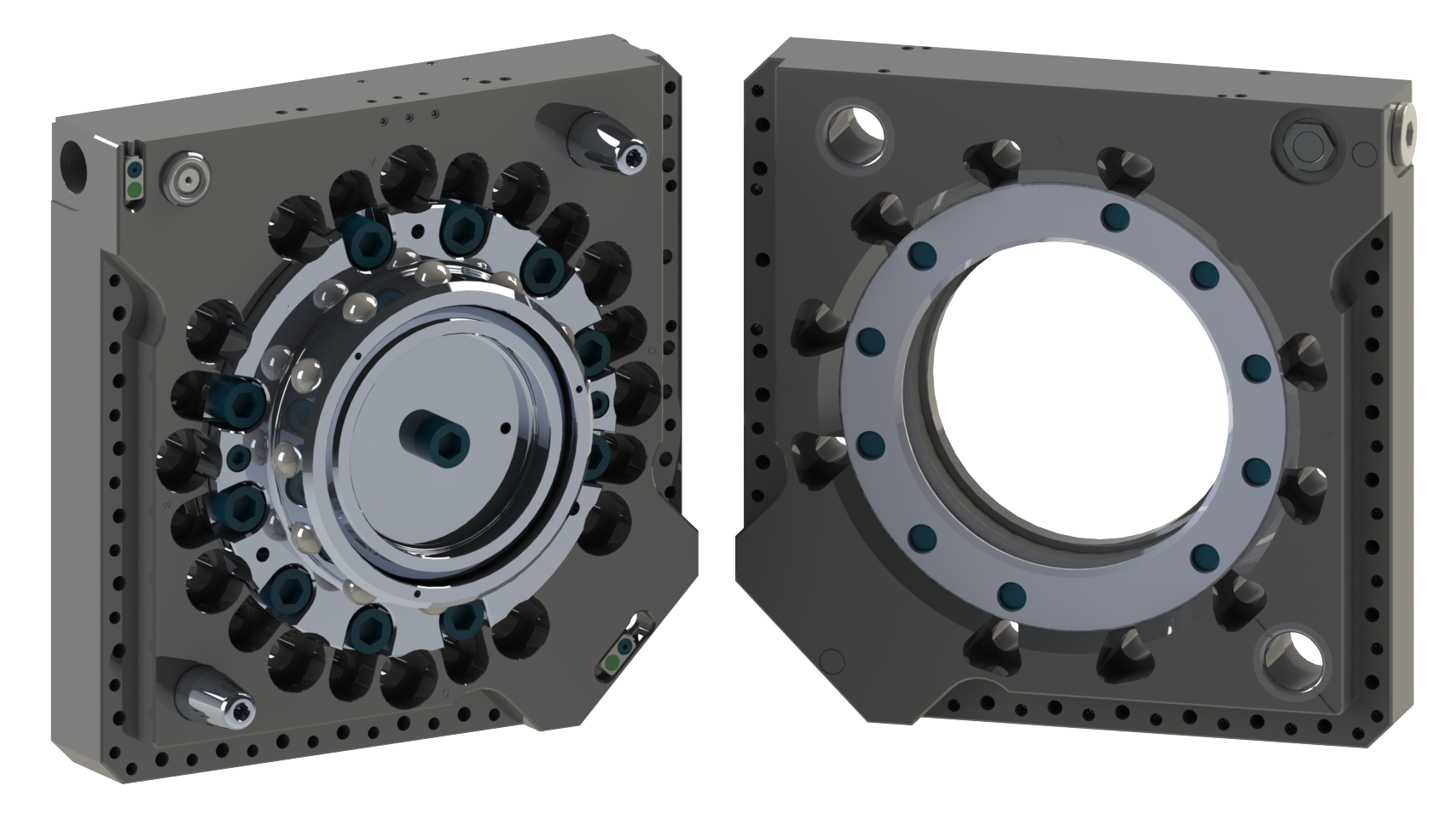

The QC-850 is a large, industrial tool changer intended for max payloads of 700kgs while maintaining an overall stack-height (master & tool) of 100mm. It mounts directly to ISO 200 robot wrists. Three (3) flats are available for utility modules as well as flats dedicated for control module and tool stand mounting. The QC-850 has a vast selection of utility modules developed specifically for ATI's "Series 8" product line.

Features and Benefits

• Flexibility: QC850 is a modular, high-value solution for automated tooling exchange perfect for material handling and joining applications in the automotive sector.
• Ease of Integration and Maintenance: Engineered for simplicity, the Series 8 is easy to integrate, operate, and maintain, ensuring a seamless addition to your existing systems.
• Direct mounting to ISO 9409-1-200-10-M12/M16 robot wrists.
• Stack Height: The QC-850 maintains and overall stack-height (master & tool) of 100mm.
• Integrated Lock/Unlock sensing to communicate status. No SIP required.
• Integrated pneumatic pass-through for reliable supply to downstream tooling and control of tool changer locking mechanism.
• No-Touch Locking™ overcomes 0.06 inch (1.5 mm) pickup gaps for easy robot teaching.
• Mounting for optional utility modules. Three (3) flats available, one (1) flat will include Series 8 and 9121 module compatibility. One additional flat is dedicated to mount control module and valve.
• Tool stand mounting flat. Separate flat reserved for mounting QC to tool stand.
