Suggested Payload Limit: |
11 lb |
Static Moment Capacity (X & Y): |
33 lbf-in |
Static Moment Capacity (Z): |
110 lbf-in |
Positional Repeatability - (X, Y, & Z): |
0.0035 in |
Weight - when coupled: |
0.84 lb |
Pneumatic Pass-through Ports (qty) Size: |
(4) M5 or #10-32 Air Only |
|
9630-20-MC10.pdf |
MC-10 Manual Coupler Drawing
|
9630-20-MC10-B.pdf |
MC-10 Manual Coupler Drawing (Black)
|
|
|
Electrical Modules
MM8 | Electrical Modules | | Electrical Module with 8-Pin, M8 Connector, MC-10 | | No |
|
|
|
|
|
|

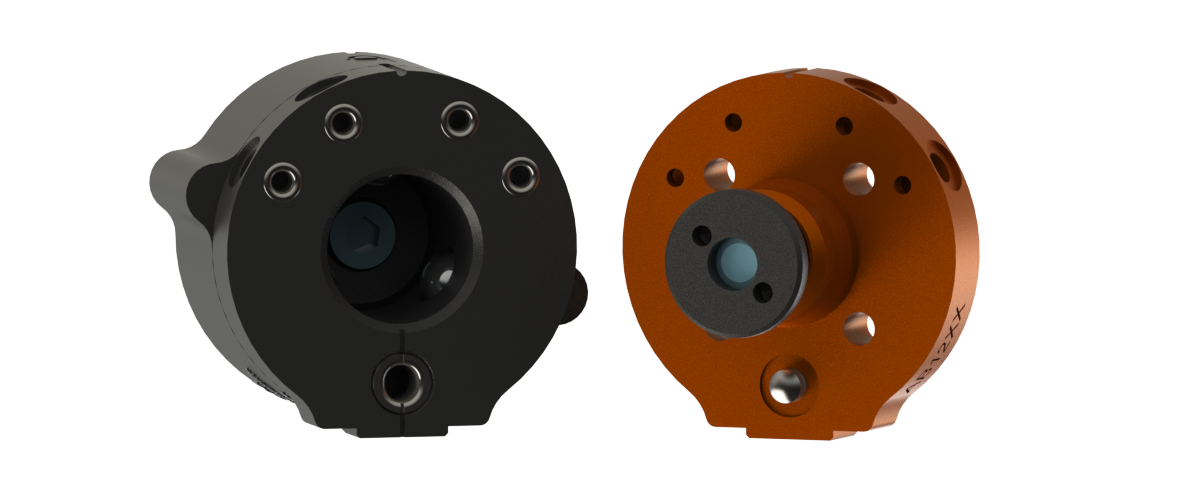

MC-10 Master |
MC-10 Manual Coupler Base Master with (4) M5 Ports, Orange Body
|
MC-10 Tool-B |
MC-10 Manual Coupler Base Tool with (4) M5 Ports, Black Body
|
MC-10 Tool |
MC-10 Manual Coupler Base Tool with (4) M5 Ports, Orange Body
|
MC-10 Master-B |
MC-10 Manual Coupler Base Master with (4) M5 Ports, Black Body
|
|
Tool Stand Mounting Options
Click
here
for a complete list of Tool Stand information and components.
|
Part Number | Type | Description | Application | Product Image |

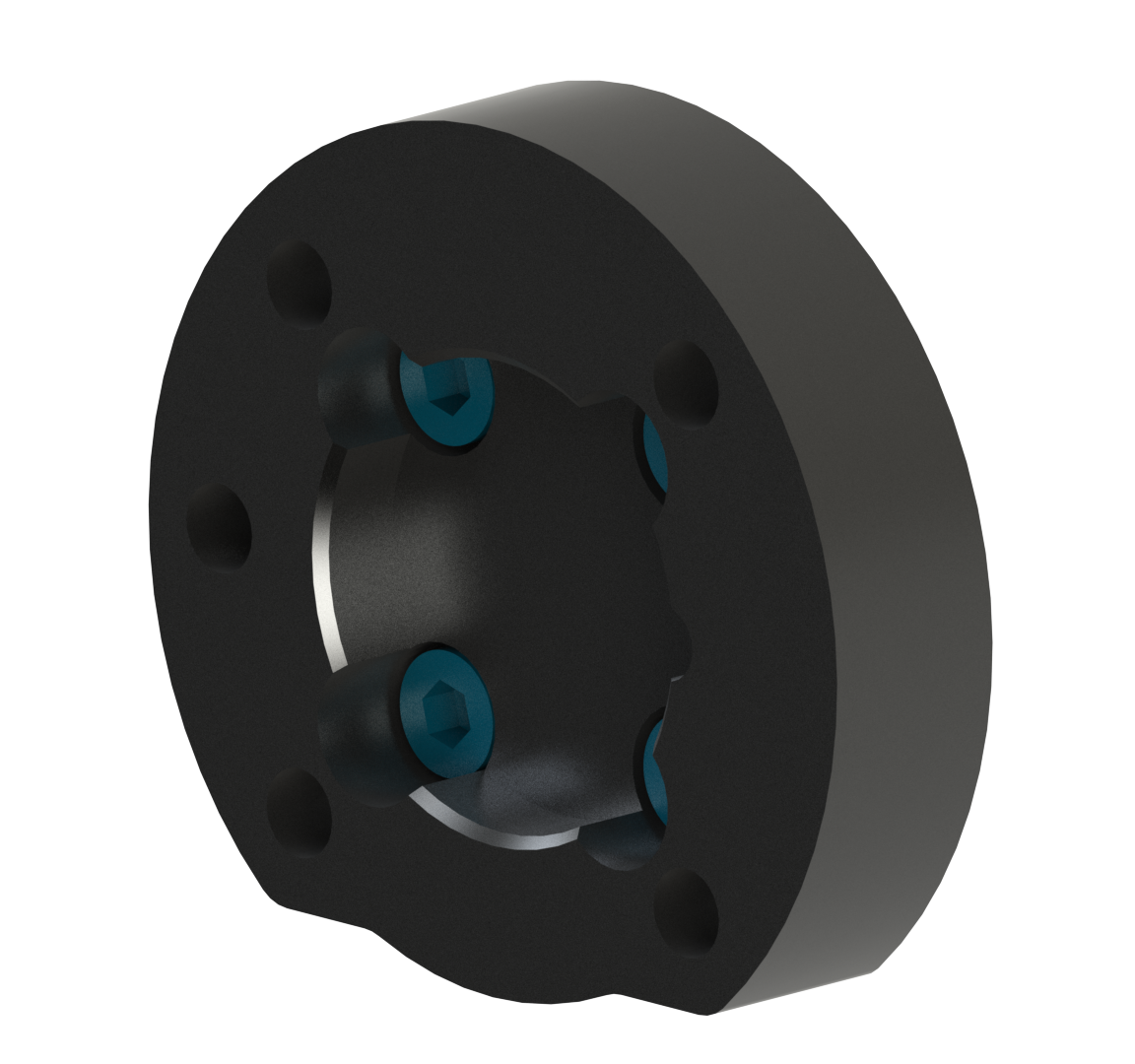

9122-010T-IP-11309 | Interface Plate |
- IP Assembly for MC-10T to BC50, (4) M6, Recess 31.5, Dowel 6.
| |
|

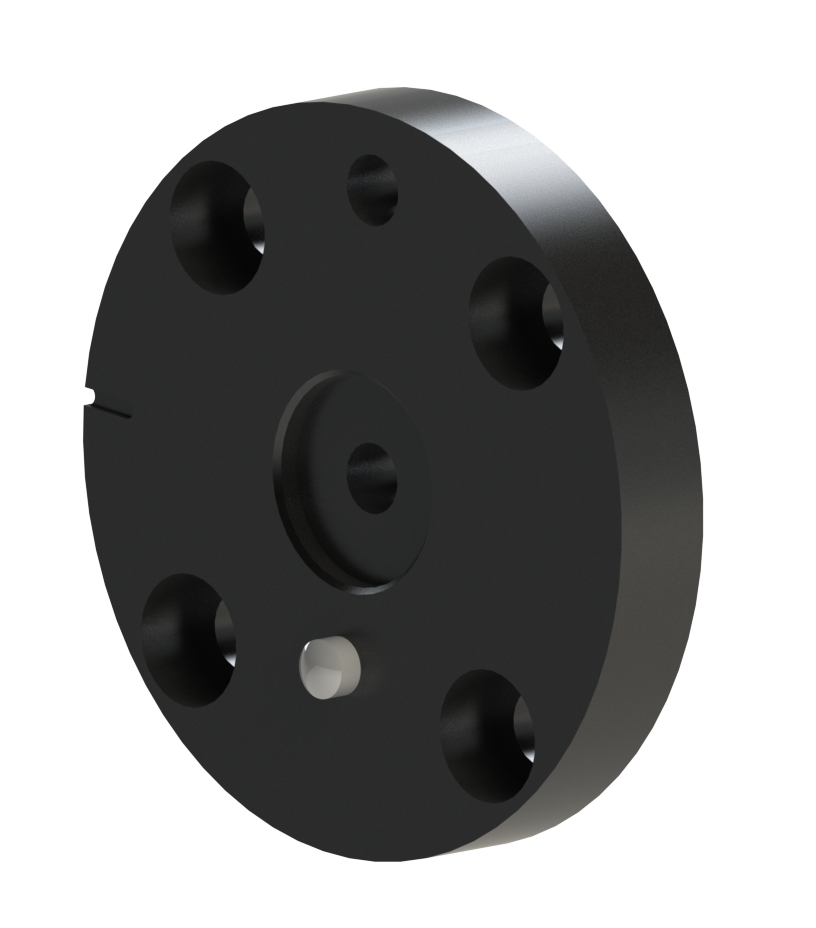

9122-010M-IP-10308 | Interface Plate |
- IP Assembly for MC-10M to BC50, (4) M6, Boss 31.5, Dowel 6.
| |
|

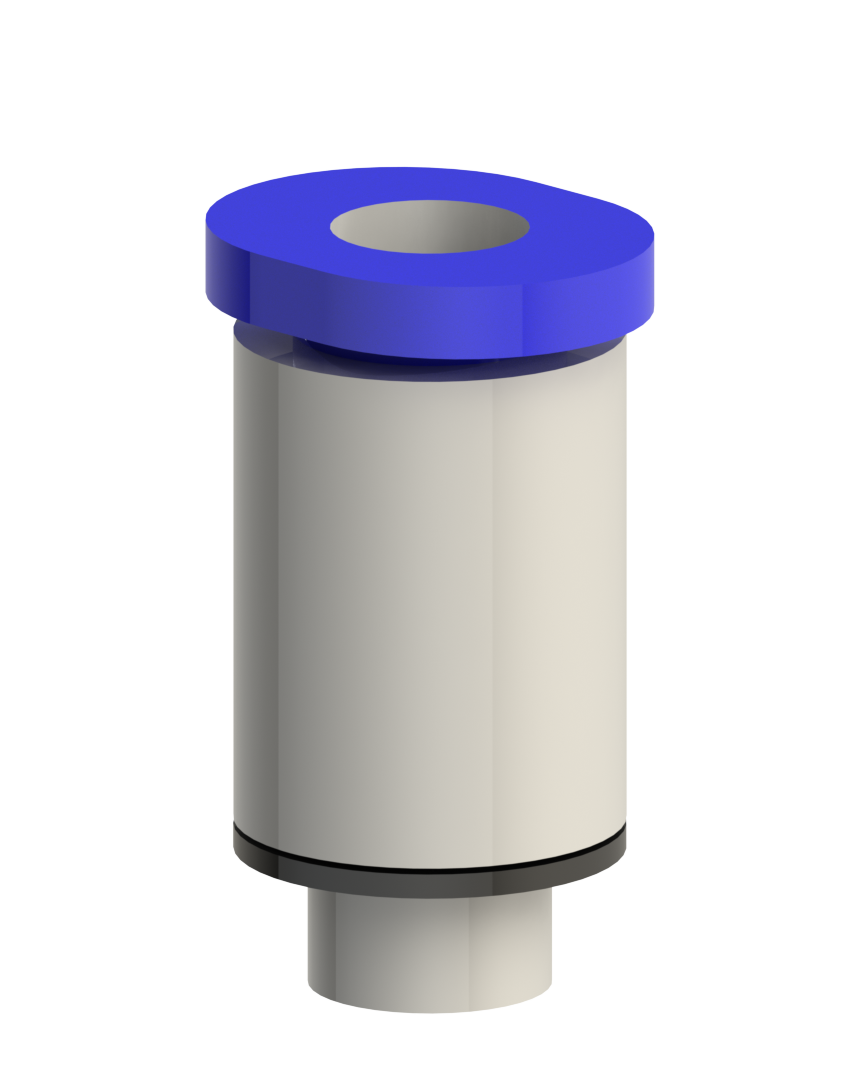

3405-1220004-01 | Pneumatic |
- Air Fitting, Straight, Internal Hex, M5 Male Thread x 4mm Tube, FESTO QSM-M5-4-I
| Master or Tool side |
|

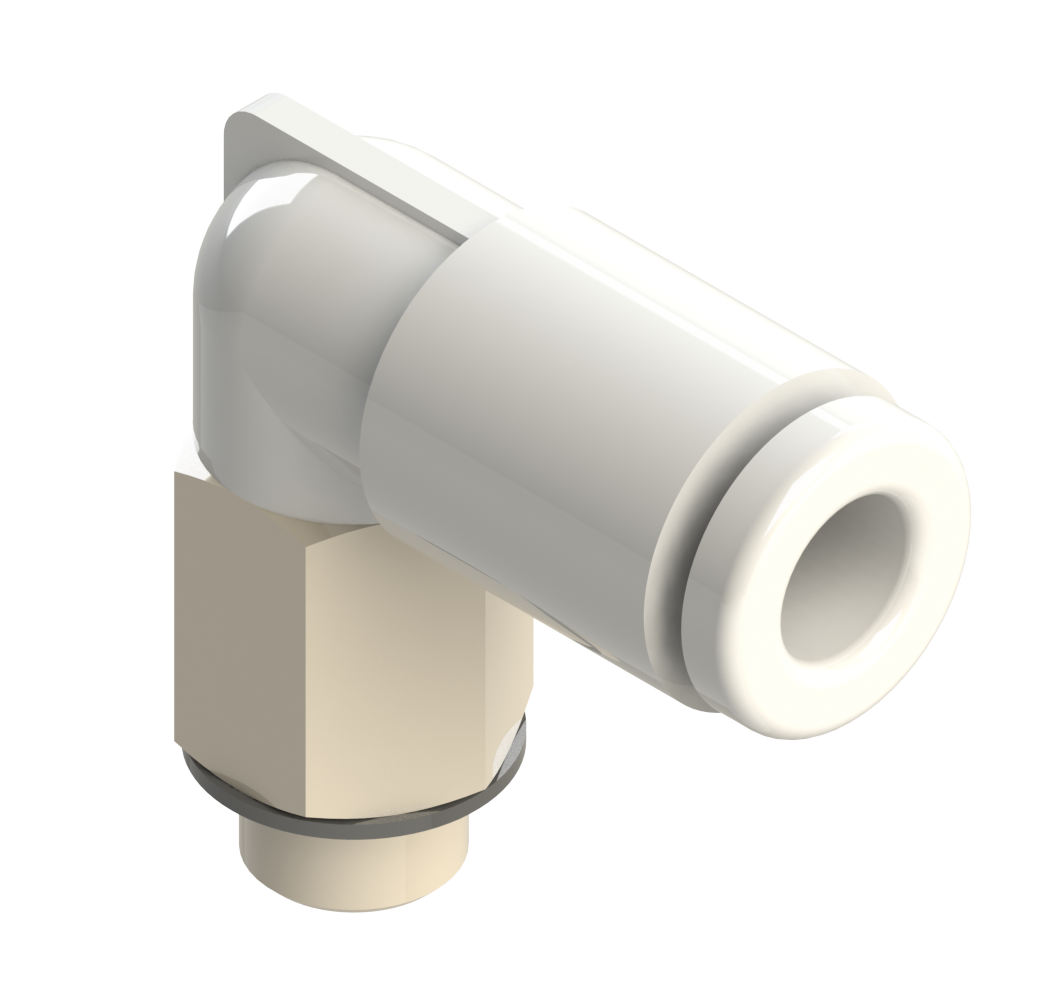

3405-2220023-01 | Pneumatic |
- Fitting, Swivel Elbow, M5 Male x 4mm Tube
| Tool side only |
|
|
