Compensator Specifications

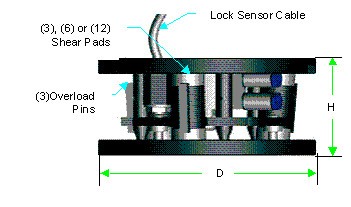

Size, Weight, and Allowable Misalignment

 Metric Units      Standard Units

*Note:  Lock-sensing currently not available           ^Note:  Weight Shown is with 12 shear pads

C-of-C, Maximum Load Capacities, and Stiffness

 Metric Units      Standard Units

-A and -B models use 3 shear pads, -C uses 6, -D uses 12 9116 Series 100 and 200 use three types of shear pads: HCL-11A, -12A, and -13A 9116 Series 000 uses two types of shear pads: HCL-01A2 and -02A 9115 Series 400 uses one type of shear pad: HCL-13A Lock Sensor Type M5 x 0.5 Threaded Barrel Proximity Sensor, NPN or PNP, Normally Open Supply Voltage Range 10-30 VDC Output Current 200mA Rated Operating Distance (Sensing Range) 1.5mm (0.59") Air Cylinder (Force Factor) 9116 Series 000 and 100 0.25 lb/psi (15N/bar) 9116 Series 200 and 9115 Series 400 0.4 lb/psi (28N/bar)

Repeatability

The compensator unit has a positional repeatability of +/- 0.026mm (0.001") when in the locked position.  When the unit is unlocked, shear pads have a positional repeatability of +/- 0.051mm (0.002").

Shear Pads

Properties	HCL-01A2	HCL-02A	HCL-11A	HCL-12A	HCL-13A
Elastomer	Neoprene	Nitrile	Neoprene	Neoprene	Nitrile
Operating Temperature, Celsius	-29 to 82	-29 to 82	-29 to 82	-29 to 82	-29 to 82
Oil Resistance	Good	Excellent	Good	Good	Excellent
Ozone Resistance	Good	Good	Good	Good	Good
Lateral Stiffness (lbs/in)	6 (Very Low)	28 (High)	20 (Low)	14 (Very Low)	34 (High)
Axial Stiffness (lbs/in)	2329	10498	24889	6075	8300
