Shear Pad Data


Skip Navigation LinksHome > Products > Compliance Devices > RCC Remote Center Compensators > Shear Pad Data


ModelCompatible Compensator SizeElastomerOperating Temp. (Celsius)Oil ResistanceOzone ResistanceLateral Stiffness (lbs/in)Axial Stiffness (lbs/in)
HCL-01A2000Neoprene-29 to 82GoodGood6 (Very Low)2329
HCL-02A000Nitrile-29 to 82ExcellentGood28 (High)10498
HCL-11A100, 200Neoprene-29 to 82GoodGood20 (Low)24889
HCL-12A100, 200Neoprene-29 to 82GoodGood14 (Very Low)6075
HCL-13A100, 200, 400Nitrile-29 to 82ExcellentGood34 (High)8300

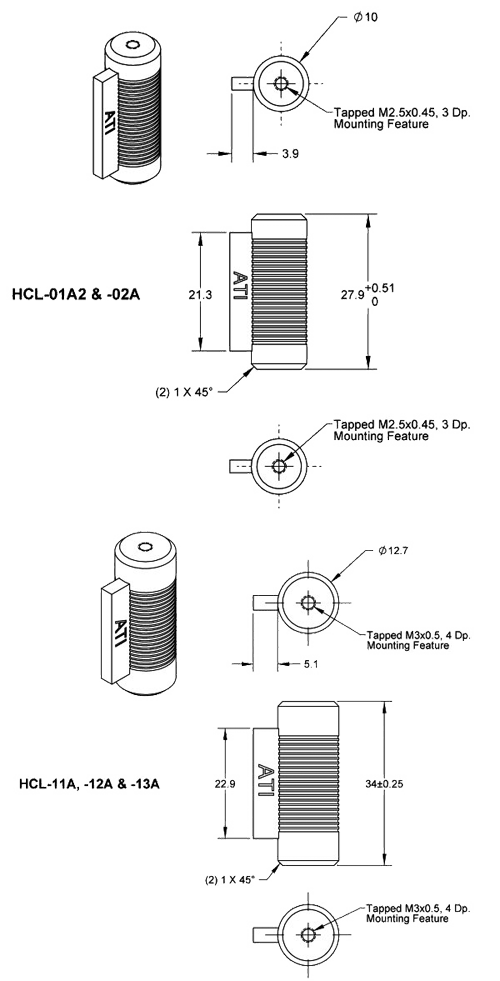

Shear Pad Dimensions and Mounting Features
